CH25-68573 - Kohler Command PRO Twin Engine, Made for John Deere, 25hp, 18.61kW Ignition/Electrical 5-24-272 Parts Diagram

Command PRO Twin Engine, Made for John Deere, 25hp, 18.61kW

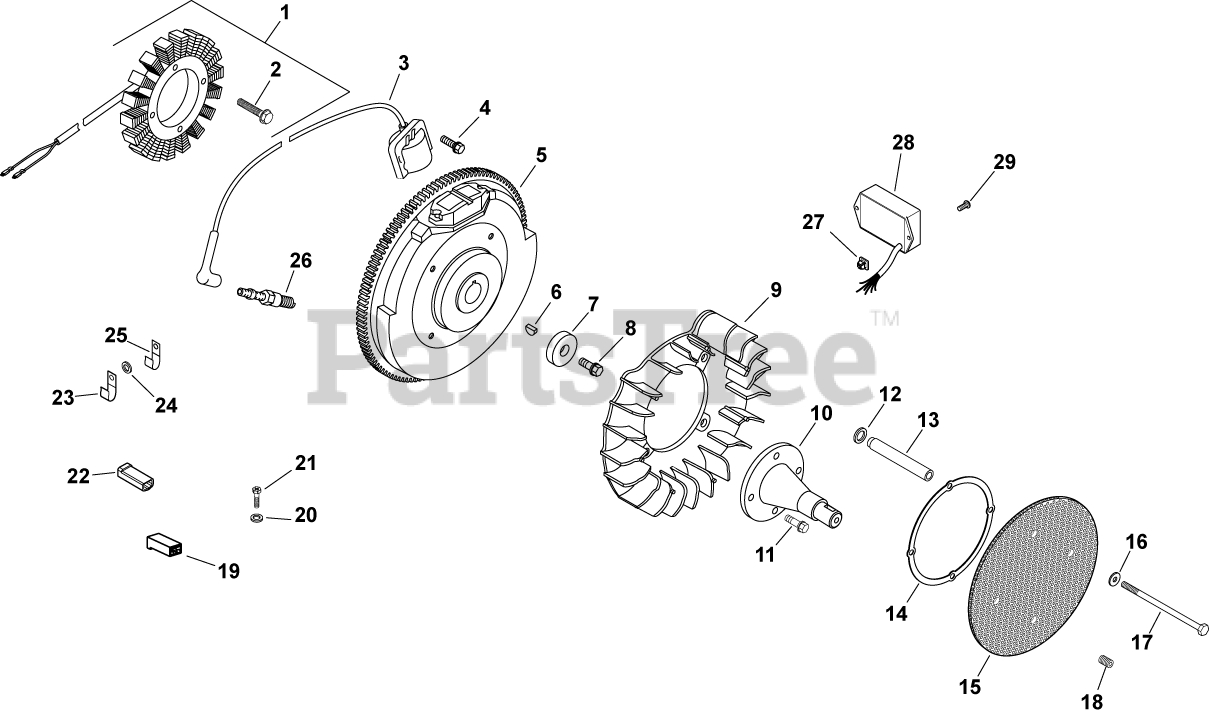

Ignition/Electrical 5-24-272 Parts Diagram

  • Title

1

Kohler 12 085 02-S

STATOR - USE 28 085 02-S
(Superseded to 28 085 02-S)

Note: (includes 2,23)

$194.99

$

In Stock, only 1 left!

0

2

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30

$

$

Not available

3

Kohler 24 584 15-S

USE 24 584 36-S MODULE
(Superseded to 24 584 36-S)

$102.99

$

In Stock, only 1 left!

0

4

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 24 025 13-S

FLYWHEEL ASSEMBLY - USE 24 025 14-S
(Superseded to 24 025 57-S)

$372.99

$

Usually ships in 2-5 days

0

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 24 157 07-S

FAN (WITH HOLE)-USE 24 157 16-S
(Superseded to 24 755 253-S)

$46.99

$

Usually ships in 2-5 days

0

10

Kohler 24 144 32-S

SHAFT, FRONT DRIVE

$314.99

$

Usually ships in 2-5 days

0

11

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

12

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

13

Kohler 24 112 14-S

SPACER

$18.99

$

Usually ships in 2-5 days

0

14

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

15

Kohler 24 162 22-S

USE 24 162 38-S GRASS SCREEN
(Superseded to 24 162 38-S)

$24.99

$

In Stock, only 1 left!

0

16

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

17

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

18

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 25 155 04-S

CONNECTOR

$4.49

$

Usually ships in 2-5 days

0

20

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

21

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

23

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

24

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

25

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

26

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

27

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

28

Kohler 24 584 09-S

MODULE, SPEED ADVANCE

$

$

Not available

29

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

$2.99

$

In Stock, only 2 left!

0

2417698-S

Kohler 24 176 98-S

HARNESS, WIRING ASSEMBLY

Note: NOT ILLUSTRATED

$62.99

$

In Stock, only 1 left!

0

2551808-S

Kohler 25 518 08-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2451816-S

Kohler 24 518 16-S

LEAD

Note: NOT ILLUSTRATED

$23.99

$

Usually ships in 2-5 days

0

X-7-23-S

Kohler X-7-23-S

SCREW,CAP HD 3/8-16x1/2"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

X-22-10-S

Kohler X-22-10-S

WASHER, INT TOOTH LOCK 3/8"

$3.99

$

Usually ships in 2-5 days

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

$3.49

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

$2.49

$

Usually ships in 2-5 days

0

2575523-S

Kohler 25 755 23-S

FULL WAVE CONVERSION USE 24 755 144-S
(Superseded to 24 755 144-S)

Note: NOT ILLUSTRATED

$165.99

$

Usually ships in 2-5 days

0
