CH25-68573 - Kohler Command PRO Twin Engine, Made for John Deere, 25hp, 18.61kW Head/Valve/Breather 4-24-99 Parts Diagram

Command PRO Twin Engine, Made for John Deere, 25hp, 18.61kW

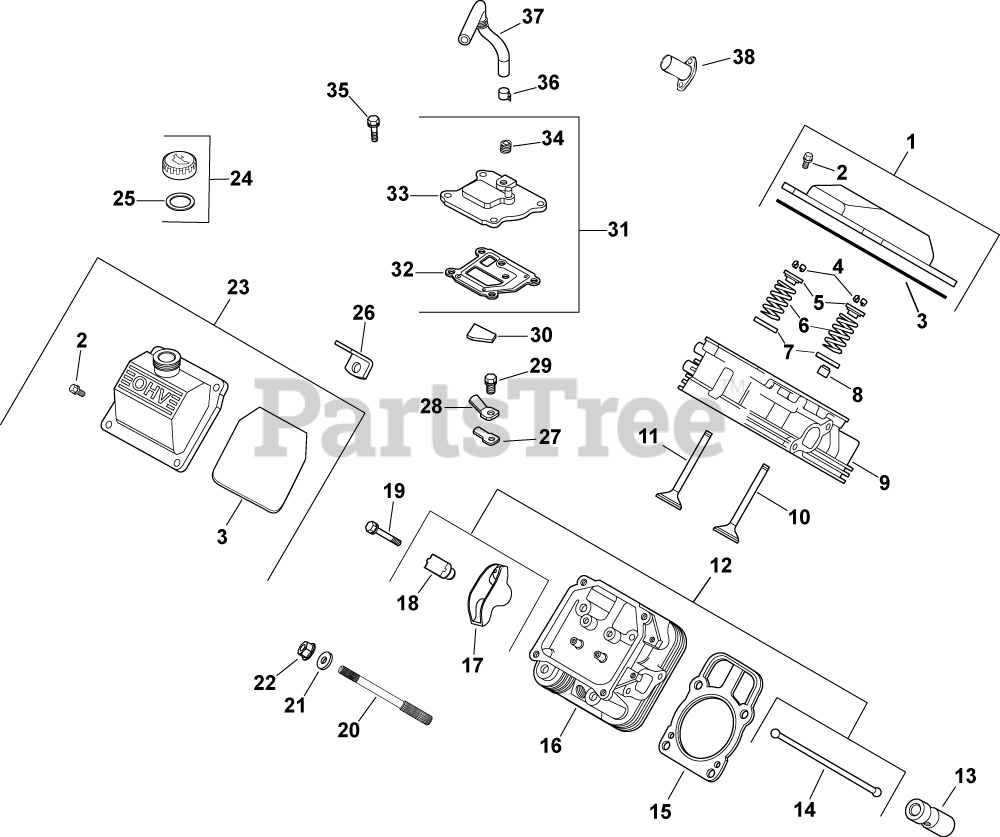

Head/Valve/Breather 4-24-99 Parts Diagram

  • Title

1

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN

Note: (includes 2,3)

$35.99

$

In Stock, only 2 left!

0

2

Kohler 24 086 32-S

SCREW, SHOULDER

$2.99

$

In Stock, Qty 11

0

3

Kohler 24 153 16-S

USE 24 153 23-S O-RING
(Superseded to 24 153 23-S)

$18.99

$

In Stock, only 1 left!

0

4

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

5

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

6

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 2 left!

0

7

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

8

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 8

0

9

Kohler 24 318 65-S

HEAD, SERVICE ASSY CYL #1-USE 24 318 106
(Superseded to 24 318 106-S)

$235.99

$

In Stock, only 2 left!

0

10

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 17

0

2401702-S

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

11

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, only 4 left!

0

2401602-S

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

12

Kohler 24 755 66-S

KIT, VALVE TRAIN

Note: (includes 14,17,18)

$45.99

$

In Stock, only 3 left!

0

13

Kohler 25 351 01-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

Note: (INCLUDES 25 357 14-S)

$23.99

$

In Stock, only 4 left!

0

14

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, Qty 9

0

15

Kohler 24 841 03-S

CYL HEAD GASKET KIT-USE 24 841 04-S
(Superseded to 24 841 04-S)

$45.99

$

In Stock, Qty 20+

0

16

Kohler 24 318 66-S

HEAD, SERVICE ASSY CYL #2-USE 24 318 114
(Superseded to 24 818 02-S)

$237.99

$

In Stock, only 1 left!

0

17

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

18

Kohler 24 599 01-S

PIVOT, CYLINDRICAL ROCKER ARM-USE 24 599
(Superseded to 24 599 02-S)

$2.49

$

In Stock, Qty 8

0

19

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

20

Kohler 24 072 09-S

STUD, M8X1.25

$6.49

$

In Stock, only 4 left!

0

21

Kohler 24 468 16-S

WASHER, FLAT 8.6 MM

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

23

Kohler 24 755 140-S

KIT, VALVE COVER-OIL FILL

Note: (includes 2,3)

$36.99

$

In Stock, only 1 left!

0

24

Kohler 24 755 46-S

KIT, OIL FILL CAP (YELLOW)

Note: (includes 25)

$11.99

$

In Stock, only 1 left!

0

25

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

26

Kohler 24 445 01-S

STRAP, LIFTING-USE 25 445 03-S
(Superseded to 25 445 03-S)

$

$

Not available

27

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, Qty 7

0

28

Kohler 12 018 01-S

RETAINER - UE 66 018 04-S
(Superseded to 66 018 04-S)

$4.99

$

In Stock, Qty 6

0

29

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

30

Kohler 24 050 01-S

FILTER, BREATHER-USE 24 050 11-S
(Superseded to 24 050 11-S)

$2.49

$

Usually ships in 2-5 days

0

31

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

Note: (includes 32-34)

$31.99

$

In Stock, only 2 left!

0

32

Kohler 24 041 23-S

USE 24 041 50-S BREATHR GASKET
(Superseded to 24 041 67-S)

$13.99

$

In Stock, Qty 9

0

33

Kohler 24 096 86-S

COVER, BREATHER -USE 24 033 01-S
(Superseded to 24 033 01-S)

$31.99

$

In Stock, only 2 left!

0

34

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

35

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

36

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$4.99

$

In Stock, only 3 left!

0

37

Kohler 24 326 26-S

HOSE, BREATHER-USE 24 326 89-S
(Superseded to 24 326 89-S)

$9.99

$

In Stock, Qty 6

0

38

Kohler 24 605 01-S

LINER, EXHAUST PORT-USE 24 605 07-S
(Superseded to 24 605 07-S)

$17.99

$

In Stock, only 2 left!

0

2545401-S

Kohler 25 454 01-S

USE 25 454 05-S WIRE TIE
(Superseded to 25 454 05-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

24755147-S

Kohler 24 755 147-S

KIT, CYLINDER HEAD HARDWARE

Note: (INCLUDES 4-8, 10, 11, 14, 17-19)

$96.99

$

In Stock, only 3 left!

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

$2.49

$

In Stock, only 3 left!

0
