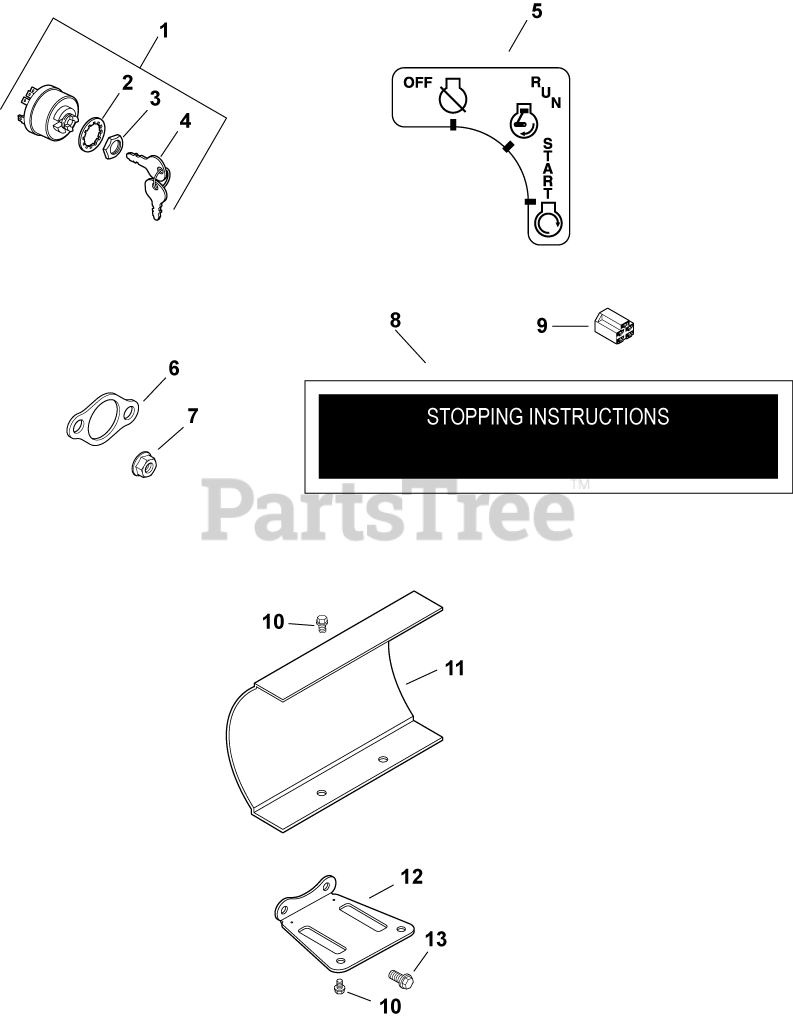

CH25-68554 - Kohler Command PRO Twin Engine, Made for Allmand Bros, 25hp, 18.61kW Parts Shipped Uninstalled from Kohler 68554 Parts Diagram

Command PRO Twin Engine, Made for Allmand Bros, 25hp, 18.61kW

Parts Shipped Uninstalled from Kohler 68554 Parts Diagram

  • Title

1

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 2-4)

$63.99

$

In Stock, only 4 left!

0

2

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

3

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

4

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 1 left!

0

5

Kohler 24 113 126-S

DECAL, KEY SWITCH

$2.99

$

Usually ships in 2-5 days

0

6

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

7

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 25 113 17-S

DECAL, STOPPING INSTRUCTION

$3.49

$

Usually ships in 2-5 days

0

9

Kohler 48 155 01-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

10

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

11

Kohler 24 314 04-S

SHIELD, HEAT-USE 24 314 50-S
(Superseded to 24 314 50-S)

$40.99

$

In Stock, only 1 left!

0

12

Kohler 24 126 12-S

BRACKET, MUFFLER

$15.99

$

Usually ships in 2-5 days

0

13

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0
