CH25-68549 - Kohler Command PRO Twin Engine, Made for Gardner Fl, 25hp, 18.61kW Blower Housing & Baffles 6-24-133 Parts Diagram

Command PRO Twin Engine, Made for Gardner Fl, 25hp, 18.61kW

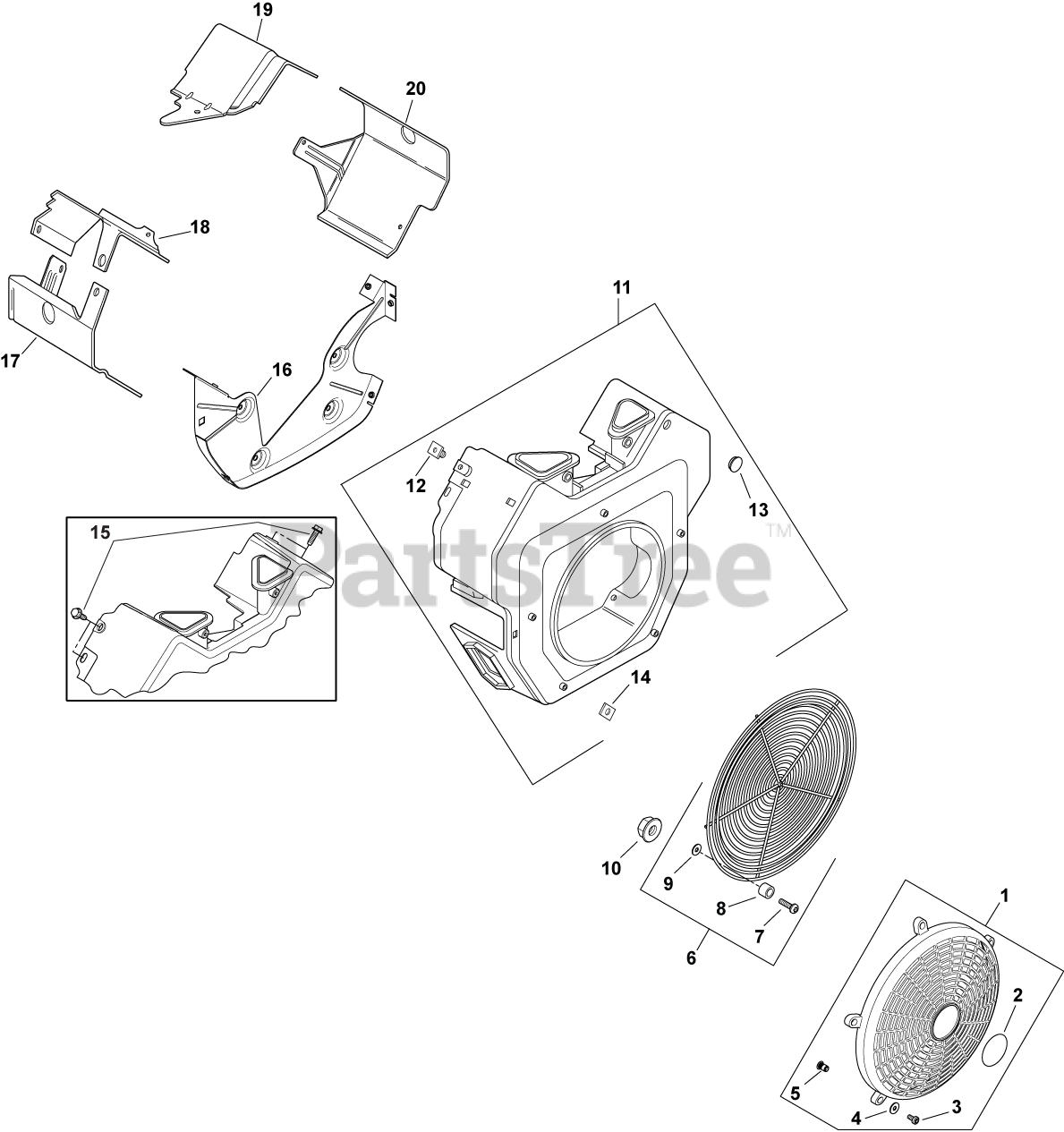

Blower Housing & Baffles 6-24-133 Parts Diagram

  • Title

1

Kohler 24 755 81-S

KIT, FIXED GUARD

Note: (includes 2-5)

$52.99

$

In Stock, only 2 left!

0

2

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

3

Kohler 25 086 160-S

SCREW, SEMS

$2.99

$

In Stock, Qty 7

0

4

Kohler 24 468 10-S

WASHER, FLAT 7/32"

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 332 01-S

INSERT, THREADED USE 25 332 19-S
(Superseded to 25 332 19-S)

$3.49

$

In Stock, Qty 5

0

6

Kohler 12 755 44-S

KIT, GRASS SCREEN GUARD

Note: (includes 7-9 & 41 037 10-S)

$112.99

$

Usually ships in 2-5 days

0

7

Kohler 24 086 15-S

SCREW, SPECIAL HEAD

$4.49

$

Usually ships in 2-5 days

0

8

Kohler 24 112 05-S

SPACER

$23.99

$

Usually ships in 2-5 days

0

9

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

10

Kohler 25 100 13-S

NUT

$2.49

$

In Stock, only 1 left!

0

11

Kohler 24 027 175-S

KIT, BLOWER HOUSING ASSEMBLY USE 24 027 477-S
(Superseded to 24 027 477-S)

Note: (includes 12-14)

$111.99

$

Usually ships in 2-5 days

0

12

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

13

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

14

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

15

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

16

Kohler 24 146 55-S

PLATE, BACKING-USE 24 146 59-S
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 1 left!

0

17

Kohler 24 063 20-S

USE 24 063 39-S BAFFLE
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

18

Kohler 24 063 17-S

BAFFLE,VALLEY #2SIDE(KM)-USE 24 063 70-S
(Superseded to 24 063 70-S)

$9.49

$

Usually ships in 2-5 days

0

19

Kohler 24 063 59-S

BAFFLE, VALLEY (CH)-USE 24 063 93-S
(Superseded to 32 063 03-S)

$6.49

$

In Stock, only 1 left!

0

20

Kohler 24 063 58-S

BAFFLE, RIGHT BARREL-USE 24 063 85-S
(Superseded to 24 063 85-S)

$17.99

$

In Stock, only 1 left!

0

M-545016-S

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

M-545020-S

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 20+

0

M-551016-S

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 3 left!

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 13

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
