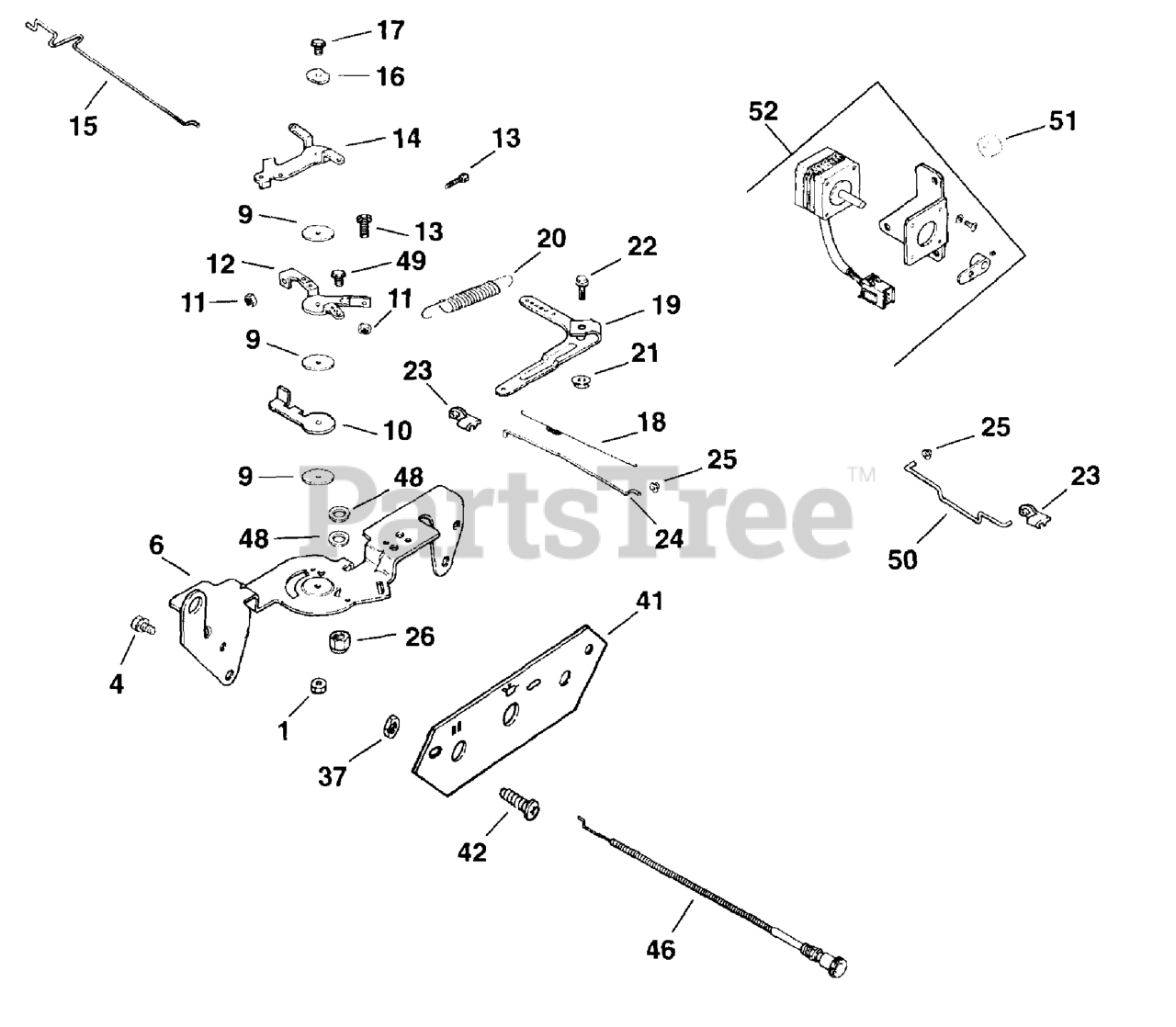

CH25-68542 - Kohler Command PRO Twin Engine, Made for Best Power, 25hp, 18.61kW Engine Controls (Cont.) 9-24-51 (TP-2439-C) Rev 10/4/2006 Parts Diagram

Command PRO Twin Engine, Made for Best Power, 25hp, 18.61kW

Engine Controls (Cont.) 9-24-51 (TP-2439-C) Rev 10/4/2006 Parts Diagram

  • Title
1

Kohler M-0547050

Nut, hex. flange M5x0.8
(Superseded to M-547050-S)

$2.49

$

In Stock, only 2 left!

0

4

Kohler M-0645016

SCREW - USE M-645016
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

6

Kohler 24 126 13

BRACKET - USE 24 126 56
(Superseded to 24 126 56)

$10.99

$

In Stock, only 1 left!

0

9

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

10

Kohler 24 090 07-S

LEVER,THROTTLE ACTUATOR-USE(24 090 65-S
(Superseded to 24 090 65-S)

$5.49

$

In Stock, only 1 left!

0

11

Kohler M-0446030

Nut, hex. flange M4x0.7
(Superseded to M-446030-S)

$2.49

$

In Stock, only 4 left!

0

12

Kohler 24 090 03-S

LEVER, THROTTLE CONTROL

$13.99

$

In Stock, only 1 left!

0

13

Kohler M-0401030

Screw, hex. cap M4x0.7x30
(Superseded to M-401030-S)

$3.49

$

In Stock, Qty 9

0

14

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

15

Kohler 24 079 02-S

USE 24 079 21-S CHOKE LINKAGE
(Superseded to 24 079 66-S)

$2.49

$

In Stock, Qty 5

0

16

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

17

Kohler SM-0545020

Screw, hex. flange M5x0.8x20
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

18

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, only 4 left!

0

19

Kohler 24 090 14-S

LEVER, GOVERNOR - DISCONTINUED

$

$

Not available

20

Kohler 24 089 18-S

SPRING, GOVERNOR (PURPLE)

$7.49

$

In Stock, Qty 10

0

21

Kohler M-0641060

NUT - USE M-641060
(Superseded to M-641060)

$4.49

$

In Stock, Qty 8

0

22

Kohler M-0642025

Screw, hex. cap M6x1.0x25

$

$

Not available

23

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

24

Kohler 24 079 01-S

LINKAGE, THROTTLE

$3.99

$

In Stock, Qty 7

0

25

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 19

0

26

Kohler M-0647060

Nut, hex. M6x1.0
(Superseded to M-647060-S)

$2.49

$

In Stock, only 3 left!

0

48

Kohler M-0931010

Washer, plain 9 mm
(Superseded to M-931010-S)

$2.49

$

In Stock, only 2 left!

0

49

Kohler M-0650012

SCREW - USE M-650012
(Superseded to M-650012-S)

$3.49

$

In Stock, only 3 left!

0
