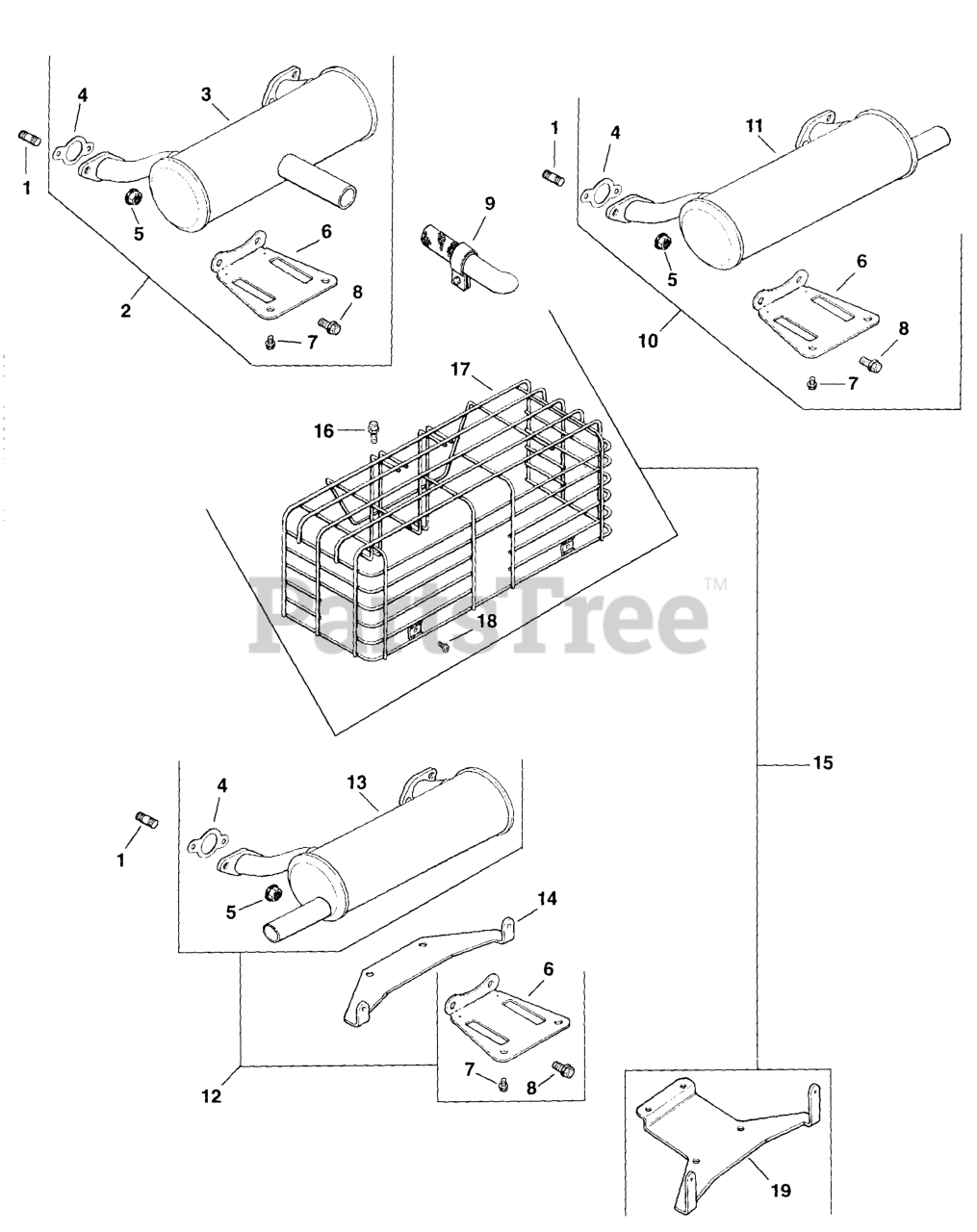

CH25-68539 - Kohler Command PRO Twin Engine, Made for Vermeer, 25hp, 18.61kW Exhaust 11-24-42 (TP-2439-C) Rev 10/4/2006 Parts Diagram

Command PRO Twin Engine, Made for Vermeer, 25hp, 18.61kW

Exhaust 11-24-42 (TP-2439-C) Rev 10/4/2006 Parts Diagram

  • Title
1

Kohler M-0829033

STUD - USE M-829033
(Superseded to M-829033)

$3.99

$

In Stock, only 3 left!

0

4

Kohler 24 041 02-S

USE 24 041 49-S GASKET
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

5

Kohler M-0841080

NUT - USE M-841080
(Superseded to M-841080)

$2.49

$

In Stock, only 1 left!

0

6

Kohler 24 126 12-S

BRACKET, MUFFLER

$15.99

$

Usually ships in 2-5 days

0

7

Kohler M-0650012

SCREW - USE M-650012
(Superseded to M-650012-S)

$3.49

$

In Stock, only 3 left!

0

8

Kohler M-0839020

Screw, hex. flange M8x1.25x20
(Superseded to M-839020-S)

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 755 80-S

KIT, MUFFLER GUARD

Note: Includes 16-19

$245.99

$

Usually ships in 2-5 days

0

16

Kohler M-0545016

SCREW - USE M-545016
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

17

Kohler 24 314 02-S

GUARD, MUFFLER

$153.99

$

Usually ships in 2-5 days

0

18

Kohler M-0555010

SCREW - USE M-555010
(Superseded to M-555010-S)

$2.49

$

In Stock, only 3 left!

0

19

Kohler 24 126 48-S

BRACKET, EXHAUST GUARD

$95.99

$

Usually ships in 2-5 days

0
