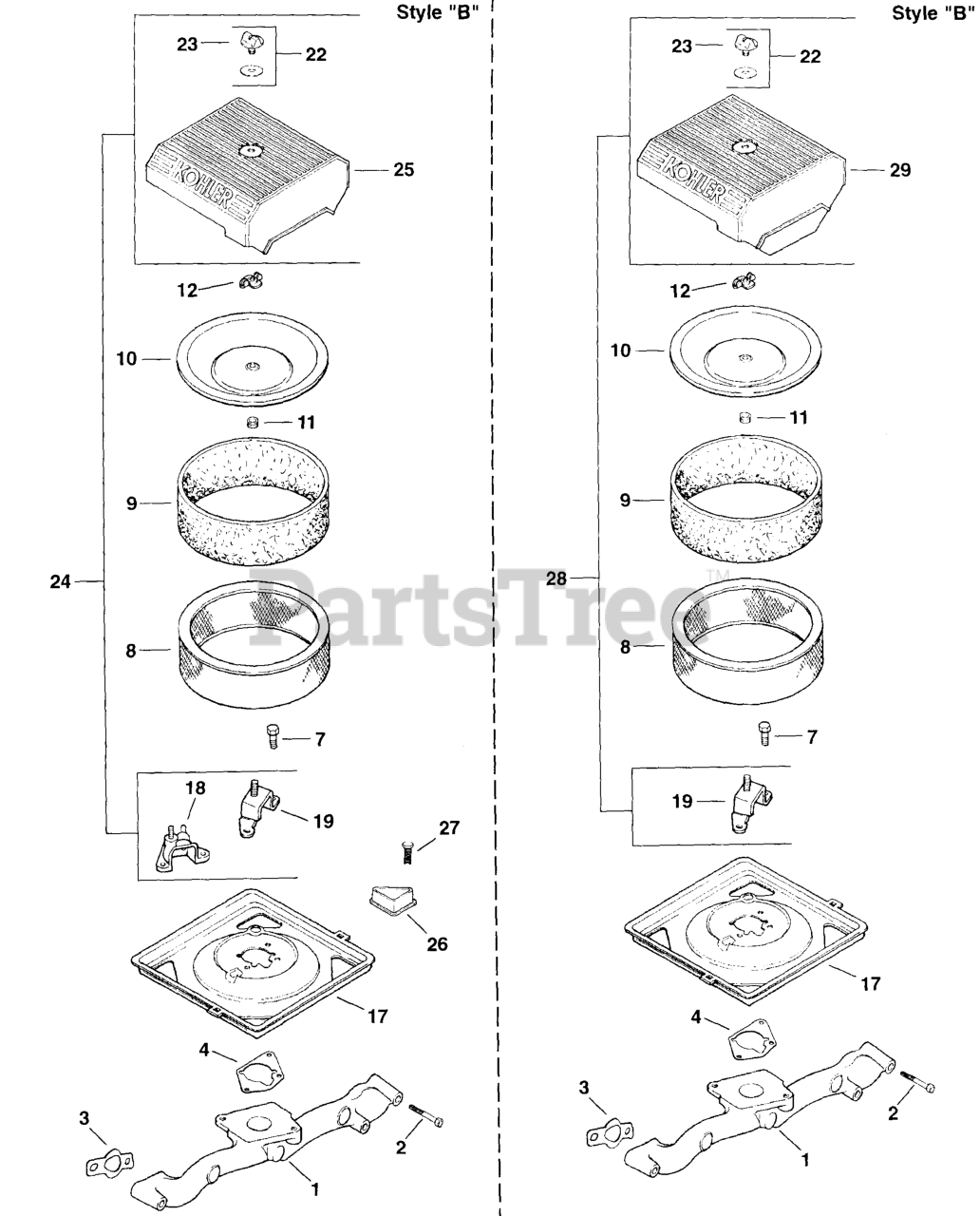

CH25-68539 - Kohler Command PRO Twin Engine, Made for Vermeer, 25hp, 18.61kW Air Intake 10-24-17 (TP-2439-C) Rev 10/4/2006 Parts Diagram

Command PRO Twin Engine, Made for Vermeer, 25hp, 18.61kW

Air Intake 10-24-17 (TP-2439-C) Rev 10/4/2006 Parts Diagram

  • Title

1

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

2

Kohler M-0639055

Screw, hex. flange M6x1.0x55
(Superseded to M-639055)

$2.49

$

In Stock, Qty 20+

0

3

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

4

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

7

Kohler M-0645016

SCREW - USE M-645016
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

8

Kohler 24 083 03-S

ELEMENT, AIR FILTER (HIGH) - Also available Retail Packaged 24 883 03-S1 Air Filter Kit

$23.99

$

Usually ships in 2-5 days

0

9

Kohler 24 083 05-S

PRE-CLEANER (HIGH)

$6.99

$

In Stock, Qty 5

0

10

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

11

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 1 left!

0

12

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0

17

Kohler 24 094 11-S

USE 24 094 27-S BASE, A/C
(Superseded to 24 094 52-S)

$28.99

$

Usually ships in 2-5 days

0

18

Kohler 24 109 03

KIT - USE 24 755 86
(Superseded to 24 755 86)

Note: 27.5 mm stud CV18-25

$140.99

$

Usually ships in 2-5 days

0

19

Kohler 24 126 43-S

USE 24 126 88-S BRACKET,A/C
(Superseded to 24 126 88-S)

Note: 40 mm stud CH25

$13.99

$

In Stock, only 2 left!

0

22

Kohler 24 755 91

KIT - USE 54 755 01
(Superseded to 54 755 01)

Note: Includes 23

$9.49

$

In Stock, only 2 left!

0

23

Kohler 25 341 02

KNOB - USE 25 341 03
(Superseded to 25 341 03)

$8.49

$

In Stock, only 2 left!

0

24

Kohler 24 743 06-S

KIT, AIR CLEANER COVER

Note: Includes 18,19,22,23,25

$90.99

$

Usually ships in 2-5 days

0

25

Kohler 24 096 26-S

COVER, AIR CLEANER

$58.99

$

Usually ships in 2-5 days

0

26

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$4.99

$

In Stock, only 2 left!

0

27

Kohler X-67-3-S

SCREW, WSH HD TAP #8-18X1/2" USE 25 086 91-S
(Superseded to 25 086 91-S)

$3.49

$

Usually ships in 2-5 days

0
