CH25-68536 - Kohler Command PRO Twin Engine, Made for Terramite, 25hp, 18.61kW Oil Pan/Lubrication (Cont.) 3-24-67 (TP-2439-C) Rev 10/4/2006 Parts Diagram

Command PRO Twin Engine, Made for Terramite, 25hp, 18.61kW

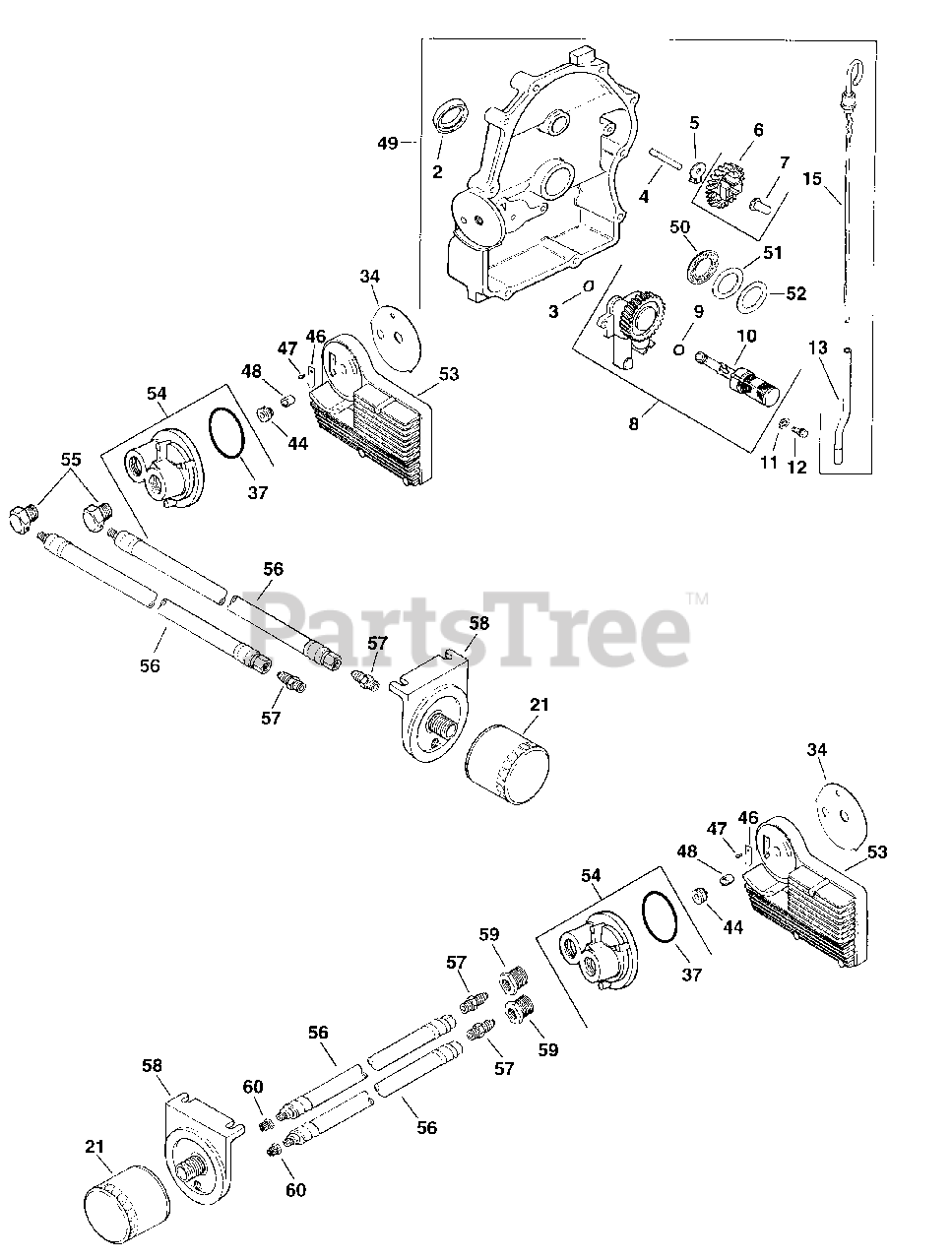

Oil Pan/Lubrication (Cont.) 3-24-67 (TP-2439-C) Rev 10/4/2006 Parts Diagram

  • Title

2

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

3

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 1 left!

0

4

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

5

Kohler 52 448 02-S

USE 24 448 01-S LOCKING TAB
(Superseded to 24 448 01-S)

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: Includes 7

$68.99

$

In Stock, Qty 12

0

7

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 9

0

8

Kohler 24 393 03-S

PUMP, OIL - DISCONTINUED

Note: Reference No. 24-327-02 stamped on housing. Includes 9,10

$

$

Not available

8

Kohler 24 393 10-S

USE 24 393 37-S OIL PUMP
(Superseded to 24 393 37-S)

Note: Reference No. 24-327-03 stamped on housing. Includes 9,10

$

$

Not available

9

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

10

Kohler 24 381 03-S

PICK-UP, OIL - DISCONTINUED

Note: Use with pump assembly 24-393-03

$

$

Not available

10

Kohler 24 381 04-S

PICK-UP, OIL

Note: Use with pump assembly 24-393-10

$34.99

$

In Stock, only 1 left!

0

11

Kohler M-0631005

WASHER - USE M-631005
(Superseded to M-631005)

$2.49

$

In Stock, only 1 left!

0

12

Kohler M-0645025

SCREW - USE M-645025
(Superseded to M-645025)

$2.49

$

In Stock, only 3 left!

0

13

Kohler 24 123 08-S

USE 24 755 121-S KIT
(Superseded to 24 755 121-S)

$35.99

$

In Stock, Qty 7

0

15

Kohler 24 038 06-S

USE 24 755 121-S DIPSTICK KIT
(Superseded to 24 755 121-S)

$35.99

$

In Stock, Qty 7

0

21

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

34

Kohler 24 041 12

GASKET - USE 24 041 29
(Superseded to 24 041 29)

$5.49

$

In Stock, Qty 8

0

44

Kohler 24 136 02-S

USE 24 136 05-S NIPPLE
(Superseded to 24 136 10-S)

$13.99

$

Usually ships in 2-5 days

0

46

Kohler 24 402 02-S

REED, OIL RELIEF - DISCONTINUED

$

$

Not available

47

Kohler M-0448010

Screw, hex. cap M4x0.7x10
(Superseded to M-448010-S)

$2.49

$

Usually ships in 2-5 days

0

48

Kohler 12 380 03

PIN - USE 12 380 17
(Superseded to 24 380 16-S)

$4.49

$

In Stock, only 3 left!

0

53

Kohler 24 594 06-S

USE 24 594 24-S OIL COOLER
(Superseded to 24 594 24-S)

$

$

Not available
