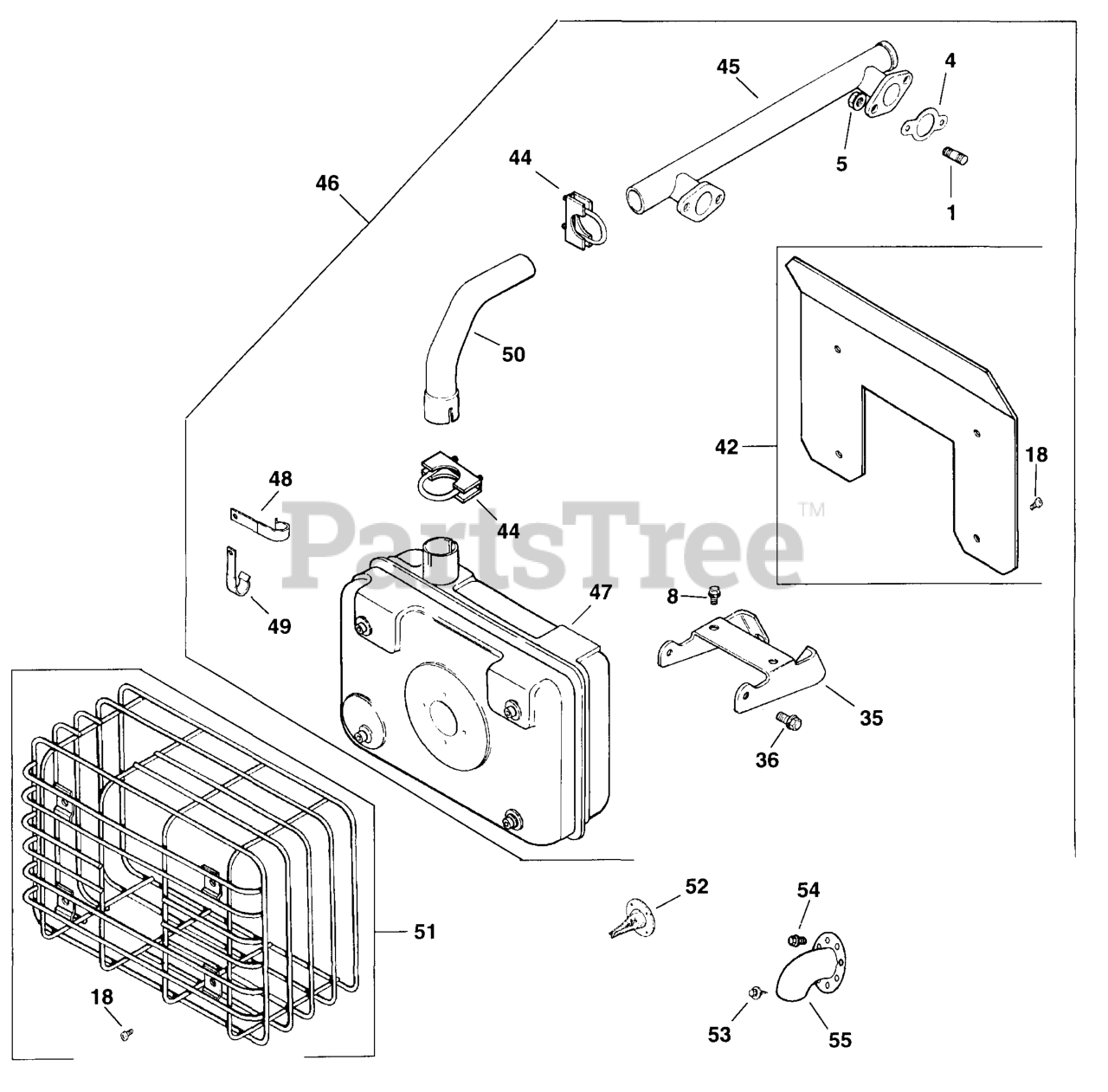

CH25-68534 - Kohler Command PRO Twin Engine, Made for Befco, 25hp, 18.61kW Exhaust 11-24-39 (TP-2439-C) Rev 10/4/2006 Parts Diagram

Command PRO Twin Engine, Made for Befco, 25hp, 18.61kW

Exhaust 11-24-39 (TP-2439-C) Rev 10/4/2006 Parts Diagram

  • Title
1

Kohler M-0829033

STUD - USE M-829033
(Superseded to M-829033)

$3.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 02-S

USE 24 041 49-S GASKET
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

5

Kohler M-0841080

NUT - USE M-841080
(Superseded to M-841080)

$2.49

$

In Stock, only 2 left!

0

8

Kohler M-0839020

Screw, hex. flange M8x1.25x20
(Superseded to M-839020-S)

$2.49

$

In Stock, only 2 left!

0

18

Kohler M-0555010

SCREW - USE M-555010
(Superseded to M-555010-S)

$2.49

$

In Stock, only 3 left!

0

35

Kohler 24 126 15-S

BRACKET, MUFFLER

$22.99

$

Usually ships in 2-5 days

0

36

Kohler M-0645016

SCREW - USE M-645016
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

42

Kohler 24 755 45-S

KIT, HEAT SHIELD

Note: Includes 18

$58.99

$

Usually ships in 2-5 days

0

44

Kohler 24 237 01-S

CLAMP, MUFFLER

$9.49

$

Usually ships in 2-5 days

0

45

Kohler 24 164 10-S

MANIFOLD, EXHAUST

$141.99

$

Usually ships in 2-5 days

0

48

Kohler 24 154 03-S

CLIP, CABLE - USE 24 154 10-S
(Superseded to 24 154 10-S)

$2.99

$

In Stock, only 2 left!

0

51

Kohler 24 755 22-S

KIT, MUFFLER GUARD

Note: Includes 18

$146.99

$

In Stock, only 1 left!

0
