CH25-68532 - Kohler Command PRO Twin Engine, Made for Target, 25hp, 18.61kW Exhaust 11-24-40 (TP-2439-C) Rev 10/4/2006 Parts Diagram

Command PRO Twin Engine, Made for Target, 25hp, 18.61kW

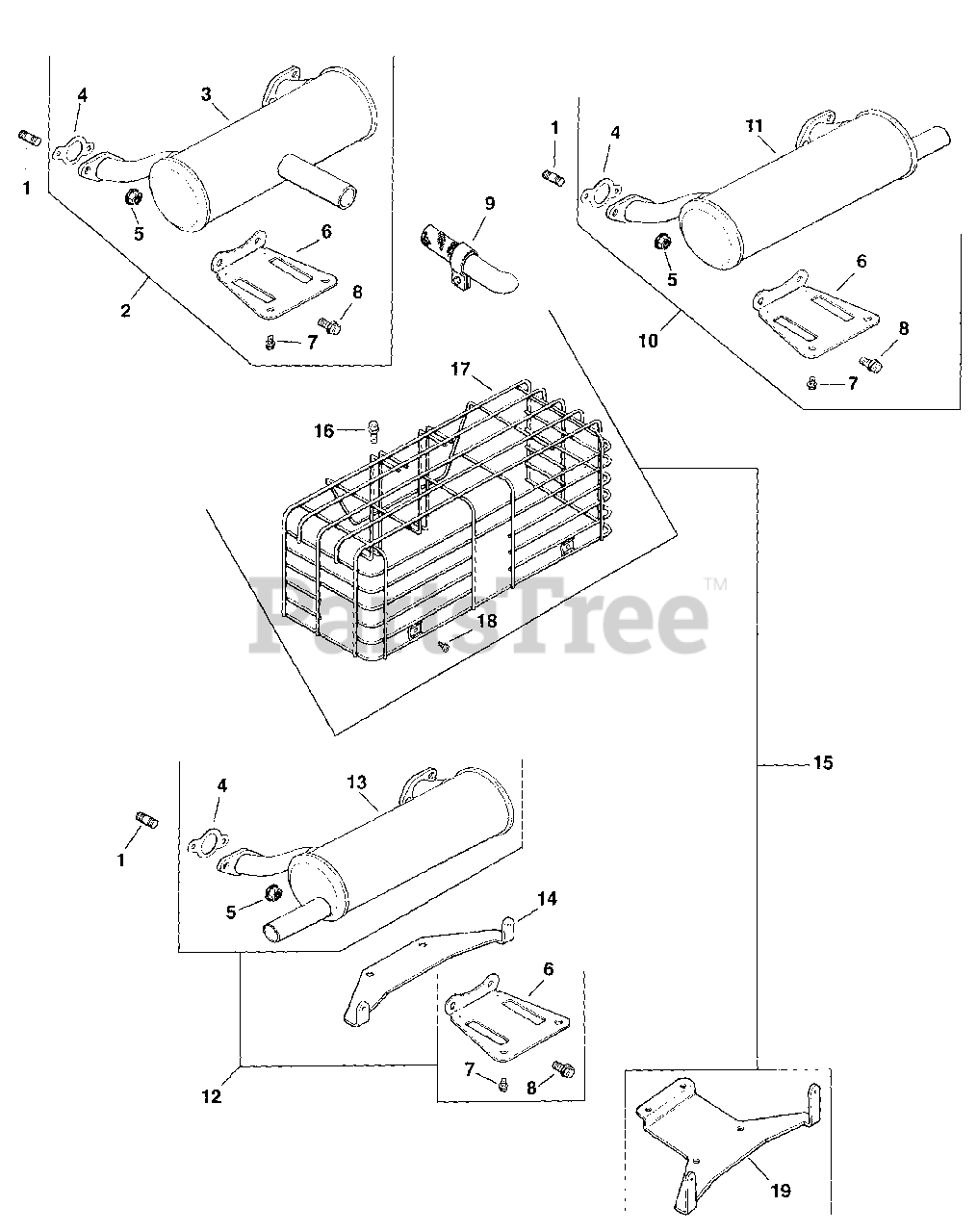

Exhaust 11-24-40 (TP-2439-C) Rev 10/4/2006 Parts Diagram

  • Title

1

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

2

Kohler 24 786 10-S

MUFFLER KIT, CENTER/STRAIGHT

Note: NOT ILLUSTRATED

$297.99

$

Usually ships in 2-5 days

0

3

Kohler 24 068 12-S

MUFFLER, CENTER/STRAIGHT USE 24 068 131-S
(Superseded to 24 068 131-S)

$279.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 02-S

USE 24 041 49-S GASKET
(Superseded to 25 041 17-S)

$2.49

$

In Stock, Qty 20+

0

5

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 126 12-S

BRACKET, MUFFLER

$14.99

$

Usually ships in 2-5 days

0

7

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

8

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 755 80-S

KIT, MUFFLER GUARD

Note: Includes 16-19

$238.99

$

Usually ships in 2-5 days

0

16

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 24 314 02-S

GUARD, MUFFLER

$152.99

$

Usually ships in 2-5 days

0

18

Kohler M-555010-S

SCREW, PHL PAN HD M5X0.8X10

$2.49

$

In Stock, only 3 left!

0

19

Kohler 24 126 48-S

BRACKET, EXHAUST GUARD

$91.99

$

Usually ships in 2-5 days

0
