CH25-68528 - Kohler Command PRO Twin Engine, Made for Gillette Mfg., 25hp, 18.61kW Exhaust Group 11-24-33 Parts Diagram

Command PRO Twin Engine, Made for Gillette Mfg., 25hp, 18.61kW

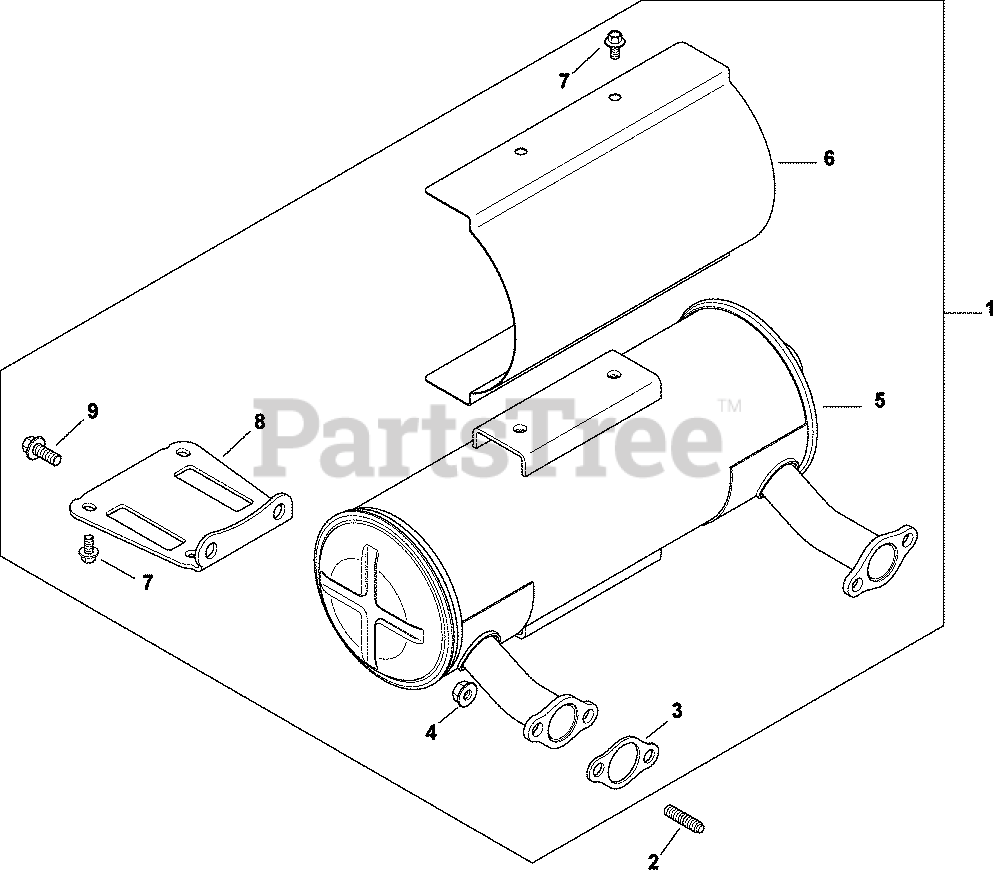

Exhaust Group 11-24-33 Parts Diagram

  • Title

1

Kohler 24 786 12-S

MUFFLER KIT, STARTER SIDE/STRAIGHT

$289.99

$

Usually ships in 2-5 days

0

2

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

3

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

4

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 068 59-S

MUFFLER, STARTER SIDE/STRAIGHT USE 24 068 141-S
(Superseded to 24 068 141-S)

$323.99

$

Usually ships in 2-5 days

0

6

Kohler 24 314 04-S

SHIELD, HEAT-USE 24 314 50-S
(Superseded to 24 314 50-S)

$40.99

$

In Stock, only 1 left!

0

7

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

8

Kohler 24 126 12-S

BRACKET, MUFFLER

$15.99

$

Usually ships in 2-5 days

0

9

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0
