CH23-76609 - Kohler Command PRO Twin Engine, Made for Exmark, 23hp, 17.2kW Blower Housing Group 6-24-380 Parts Diagram

Command PRO Twin Engine, Made for Exmark, 23hp, 17.2kW

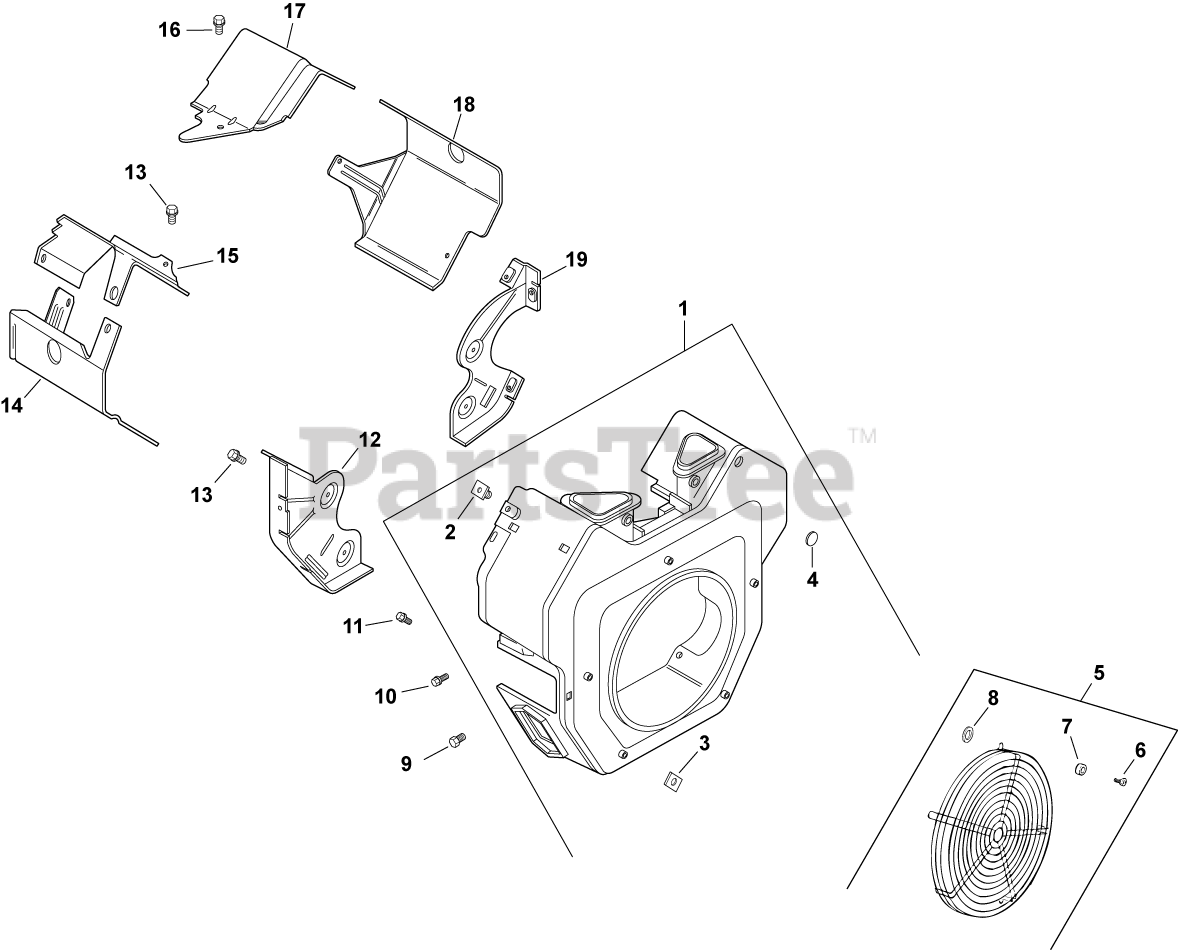

Blower Housing Group 6-24-380 Parts Diagram

  • Title

1

Kohler 24 027 196-S

KIT, BLOWER HOUSING ASSY-(#24027492S)
(Superseded to 24 027 492-S)

$136.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

3

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 24 755 94-S

KIT, GUARD

$86.99

$

In Stock, only 1 left!

0

6

Kohler 24 086 39-S

SCREW, PAN HEAD-USE 25 086 160-S
(Superseded to 25 086 160-S)

$2.99

$

In Stock, Qty 7

0

7

Kohler 24 112 09-S

SPACER USE 25 112 30-S
(Superseded to 25 112 30-S)

$4.49

$

In Stock, only 1 left!

0

8

Kohler 24 468 10-S

WASHER, FLAT 7/32"

$2.49

$

In Stock, only 1 left!

0

9

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

$2.49

$

In Stock, only 2 left!

0

10

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

11

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

12

Kohler 24 146 18-S

PLATE, BACKING #2 SIDE

$

$

Not available

13

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

14

Kohler 24 063 39-S

BAFFLE,VALLEY #2SIDE(KM)-USE 24 063 88-S
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

15

Kohler 24 063 70-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 32 063 02-S)

$9.49

$

Usually ships in 2-5 days

0

16

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

17

Kohler 24 063 59-S

BAFFLE, VALLEY (CH)-USE 24 063 93-S
(Superseded to 32 063 03-S)

$6.49

$

In Stock, only 1 left!

0

18

Kohler 24 063 58-S

BAFFLE, RIGHT BARREL-USE 24 063 85-S
(Superseded to 24 063 85-S)

$17.99

$

In Stock, only 1 left!

0

19

Kohler 24 146 20-S

PLATE, BACKING - DISCONTINUED

$

$

Not available

2433201-S

Kohler 24 332 01-S

INSERT, THREADED USE 25 332 19-S
(Superseded to 25 332 19-S)

Note: NOT ILLUSTRATED

$3.49

$

In Stock, Qty 5

0

2411390-S

Kohler 24 113 90-S

DECAL, 23 HP - (#24113216S)
(Superseded to 24 113 412-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2511339-S

Kohler 25 113 39-S

DECAL, CLEAR LAMINATE USE 25 113 70-S
(Superseded to 25 113 79-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 4 left!

0
