CH23-76580 - Kohler Command PRO Twin Engine, Made for Costa Eugenio, 23hp, 17.2kW Ignition/Electrical 5-24-683 Parts Diagram

Command PRO Twin Engine, Made for Costa Eugenio, 23hp, 17.2kW

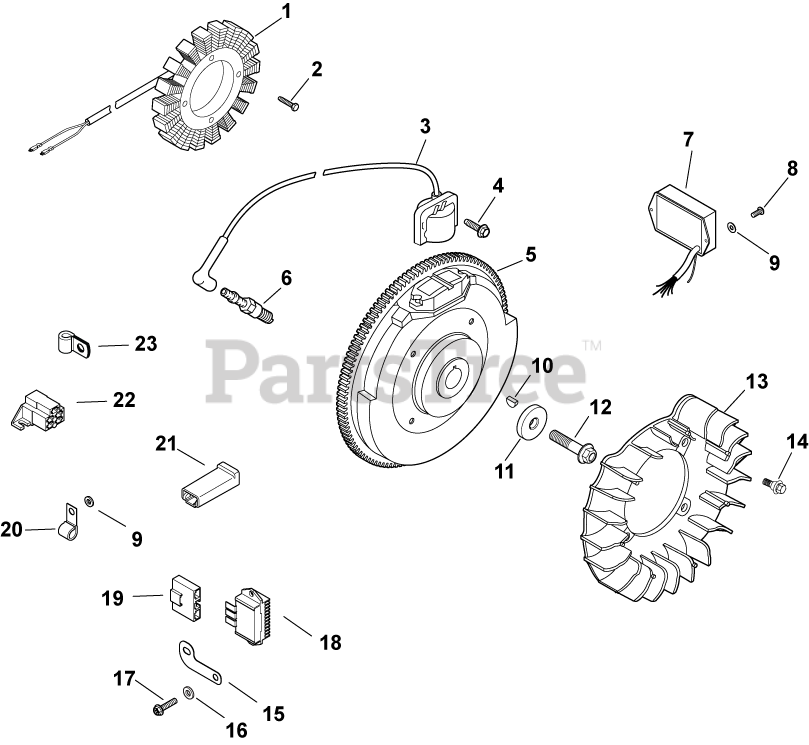

Ignition/Electrical 5-24-683 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 15

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 36-S

MODULE, IGNITION

Note: (Before S/N 3633900011)

$102.99

$

In Stock, only 2 left!

0

2458452-S

Kohler 24 584 52-S

MODULE, SPARK ADV -USE 24 584 89-S
(Superseded to 24 584 89-S)

Note: (After S/N 3633900001)

$

$

Not available

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

5

Kohler 24 025 58-S

FLYWHEEL ASSEMBLY (LW)

$

$

Not available

6

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

7

Kohler 24 584 32-S

MODULE, SPEED ADVANCE -USE 24 584 34-S
(Superseded to 24 755 344-S)

$230.99

$

Usually ships in 2-5 days

0

8

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

$2.99

$

In Stock, only 2 left!

0

9

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

10

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

11

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

12

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

13

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 5

0

14

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

15

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$4.99

$

Usually ships in 2-5 days

0

16

Kohler 25 468 07-S

WASHER, FLAT 7/32"

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

19

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

20

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

21

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

22

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

23

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

M-639010-S

Kohler M-639010-S

SCREW, FLG M6X1.0X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

Note: NOT ILLUSTRATED

$4.49

$

In Stock, Qty 8

0

2417690-S

Kohler 24 176 90-S

HARNESS, WIRING - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$44.99

$

Usually ships in 2-5 days

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 1 left!

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
