CH23-76580 - Kohler Command PRO Twin Engine, Made for Costa Eugenio, 23hp, 17.2kW Crankcase 2-24-138 Parts Diagram

Command PRO Twin Engine, Made for Costa Eugenio, 23hp, 17.2kW

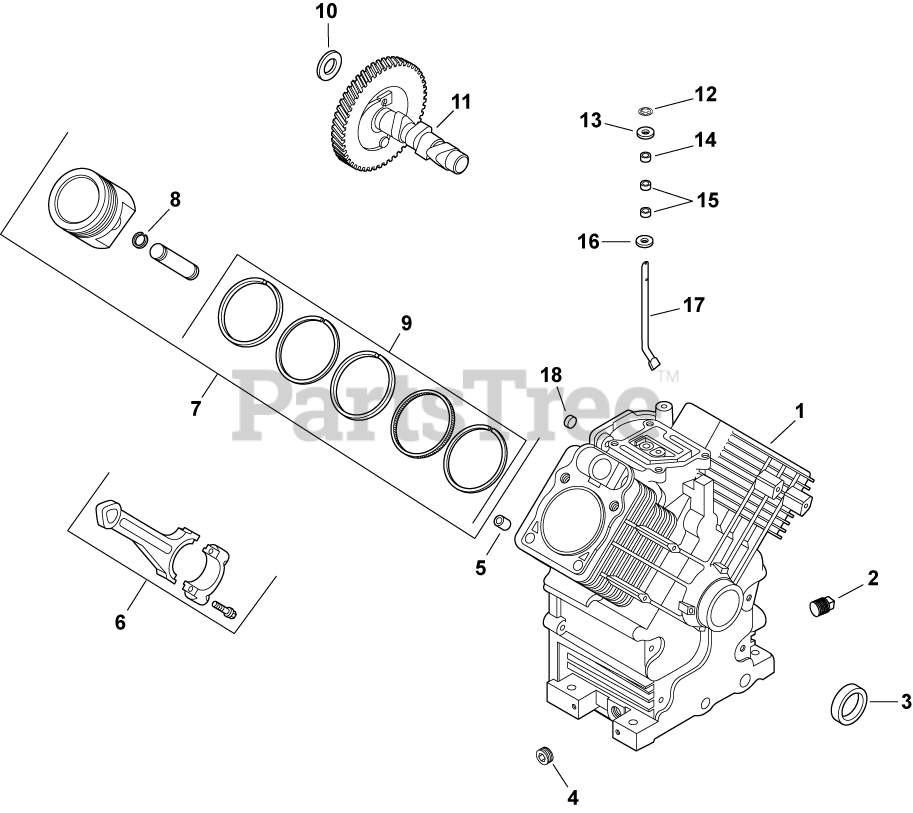

Crankcase 2-24-138 Parts Diagram

  • Title

1

CRANKCASE

$

$

Not available

2

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

3

Kohler 24 032 01-S

SEAL, OIL FRONT-USE 24 032 19-S
(Superseded to 24 032 19-S)

$7.49

$

In Stock, Qty 20+

0

4

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

5

Kohler 24 380 13-S

PIN, DOWEL (SPLIT)-USE 24 380 16-S
(Superseded to 24 380 16-S)

$4.49

$

In Stock, only 3 left!

0

6

Kohler 24 067 13-S

ROD, CONNECTING ASSY STD-USE 24 067 28-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

2406714-S

Kohler 24 067 14-S

ROD,CONNECT ASSY.25 U/S-USE 24 067 17-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

7

Kohler 24 874 09-S

PISTON W/RINGS (STYLE A)(STD) USE 24 874 42-S
(Superseded to 24 874 54-S)

$250.99

$

In Stock, only 3 left!

0

2487415-S

Kohler 24 874 15-S

PISTON W/RINGS (STYLE A) (.08) USE 24 874 43-S
(Superseded to 24 874 55-S)

$

$

Not available

2487410-S

Kohler 24 874 10-S

PISTON W/RINGS (STYLE A) (.25) - USE 24 874 44-S
(Superseded to 24 874 56-S)

$289.99

$

Usually ships in 2-5 days

0

2487411-S

Kohler 24 874 11-S

PISTON W/RINGS (STYLE A) (.50) - USE 24 874 45-S
(Superseded to 24 874 45-S)

$289.99

$

Usually ships in 2-5 days

0

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

9

Kohler 24 108 08-S

RING SET (STYLE A) (STD)-USE 24 108 18-S
(Superseded to 24 108 18-S)

$

$

Not available

2410809-S

Kohler 24 108 09-S

RING SET (STYLE A) (.25) - (#2410820S)
(Superseded to 24 108 20-S)

$289.99

$

Usually ships in 2-5 days

0

2410810-S

Kohler 24 108 10-S

RING SET (STYLE A) (.50)-USE 24 108 21-S
(Superseded to 24 108 21-S)

$146.99

$

Usually ships in 2-5 days

0

10

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

1242207-S

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

11

Kohler 24 012 10-S

KIT, CAMSHAFT
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

12

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

13

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

14

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

15

Kohler 28 030 05-S

BEARING, NEEDLE

$12.99

$

Usually ships in 2-5 days

0

16

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

17

Kohler 24 144 39-S

SHAFT, GOVERNOR CROSS

$41.99

$

Usually ships in 2-5 days

0

18

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0
