CH23-76558 - Kohler Command PRO Twin Engine, Made for Buffalo Turbine, 23hp, 17.2kW Exhaust 11-24-41 FOR 76558, 76632 Parts Diagram

Command PRO Twin Engine, Made for Buffalo Turbine, 23hp, 17.2kW

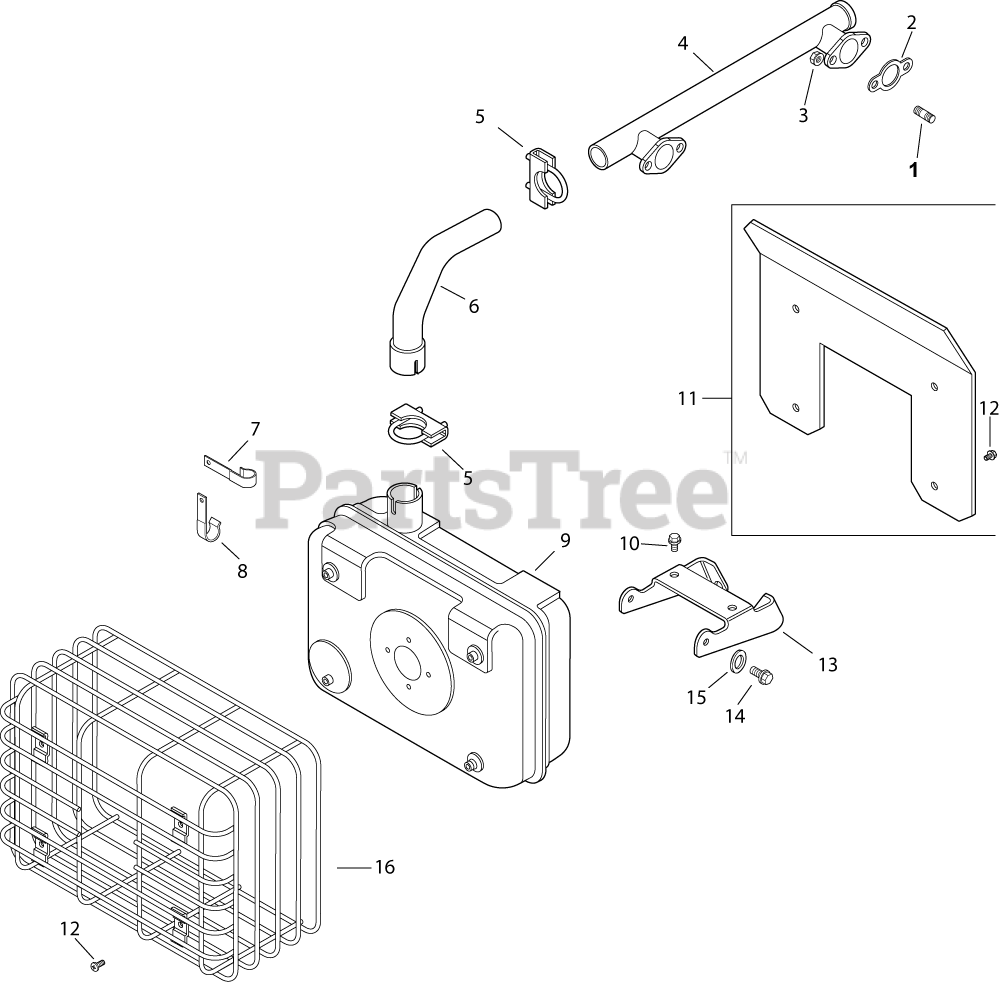

Exhaust 11-24-41 FOR 76558, 76632 Parts Diagram

  • Title

1

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, Qty 14

0

2

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

3

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 164 11-S

MANIFOLD, EXHAUST

$141.99

$

Usually ships in 2-5 days

0

5

Kohler 24 237 01-S

CLAMP, MUFFLER

$9.49

$

Usually ships in 2-5 days

0

6

Kohler 24 382 04-S

PIPE, EXHAUST

$36.99

$

Usually ships in 2-5 days

0

7

Kohler 24 154 03-S

CLIP, CABLE - USE 24 154 10-S
(Superseded to 24 154 10-S)

$2.99

$

In Stock, only 2 left!

0

8

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

9

Kohler 24 068 14-S

MUFFLER, SIDE MOUNT - USE 24 068 153-S
(Superseded to 24 068 153-S)

$291.99

$

Usually ships in 2-5 days

0

10

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

11

Kohler 24 755 45-S

KIT, HEAT SHIELD

Note: (includes 12)

$58.99

$

Usually ships in 2-5 days

0

12

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

13

Kohler 24 126 15-S

BRACKET, MUFFLER

$22.99

$

Usually ships in 2-5 days

0

14

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

15

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

16

Kohler 25 314 02-S

GUARD, MUFFLER

$244.99

$

Usually ships in 2-5 days

0
