CH23-76513 - Kohler Command PRO Twin Engine, Basic Version, 23hp, 17.2kW Oil Pan/Lubrication 3-24-197 CH18-750 Parts Diagram

Command PRO Twin Engine, Basic Version, 23hp, 17.2kW

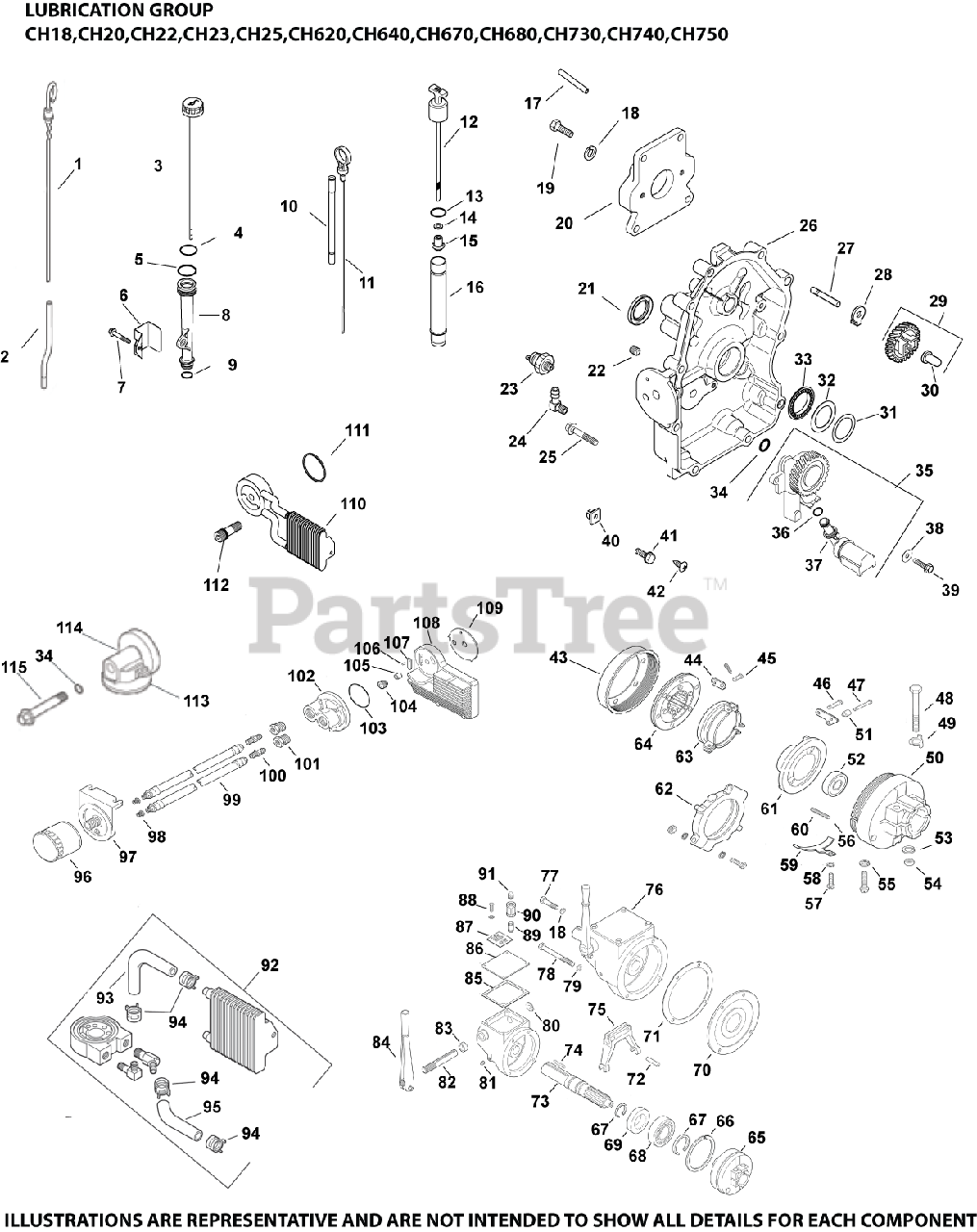

Oil Pan/Lubrication 3-24-197 CH18-750 Parts Diagram

  • Title

10

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$35.99

$

In Stock, Qty 7

0

11

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, Qty 7

0

21

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 20+

0

23

Kohler 24 099 03-S

SENSOR, OIL PSI

$35.99

$

In Stock, only 1 left!

0

24

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 1 left!

0

25

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

25

Kohler 25 086 17-S

SCREW - DISCONTINUED

$

$

Not available

26

Kohler 24 009 167-S

PLATE, CLOSURE & BEARING USE 24 009 227-S
(Superseded to 24 009 238-S)

Note: (Before S/N 4327400011)

$406.99

$

Usually ships in 2-5 days

0

27

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 10

0

28

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

29

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 13

0

30

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 12

0

34

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 2 left!

0

35

Kohler 24 393 53-S

KIT, OIL PUMP ASSEMBLY

Note: (Before S/N 4327400011)

$

$

Not available

36

Kohler 24 153 01-S

O-RING, OIL PICK-UP

Note: (Before S/N 4327400011

$2.49

$

In Stock, Qty 8

0

37

Kohler 24 381 04-S

PICK-UP, OIL

Note: (Before S/N 4327400011)

$34.99

$

In Stock, only 1 left!

0

38

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 1 left!

0

39

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

96

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

112

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

2408974-S

Kohler 24 089 74-S

SPRING, COMPRESSION

Note: NOT ILLUSTRATED (After S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

2415333-S

Kohler 24 153 33-S

SEAL, OIL PUMP COVER

Note: NOT ILLUSTRATED (After S/N 4327400001)

$2.99

$

In Stock, only 1 left!

0

2438113-S

Kohler 24 381 13-S

PICK-UP ASSEMBLY, OIL

Note: NOT ILLUSTRATED (After S/N 4327400001)

$7.49

$

Usually ships in 2-5 days

0

2415334-S

Kohler 24 153 34-S

O-RING, OIL PICK-UP

Note: NOT ILLUSTRATED (After S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

2439370-S

Kohler 24 393 70-S

PUMP ASSEMBLY, OIL

Note: NOT ILLUSTRATED (After S/N 4327400001)

$32.99

$

In Stock, only 2 left!

0

24096151-S

Kohler 24 096 151-S

COVER, OIL PUMP

Note: NOT ILLUSTRATED (After S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

2519403-S

Kohler 25 194 03-S

PRESSURE RELIEF BALL

Note: NOT ILLUSTRATED (After S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

24009222-S

Kohler 24 009 222-S

CLOSURE PLATE ASSEMBLY USE 24 009 238-S
(Superseded to 24 009 238-S)

Note: NOT ILLUSTRATED (After S/N 4327400001)

$406.99

$

Usually ships in 2-5 days

0
