CH22-76613 - Kohler Command PRO Twin Engine, Basic Version, 22hp, 16.4kW Exhaust Group 11-24-14 CH18-750 Parts Diagram

Command PRO Twin Engine, Basic Version, 22hp, 16.4kW

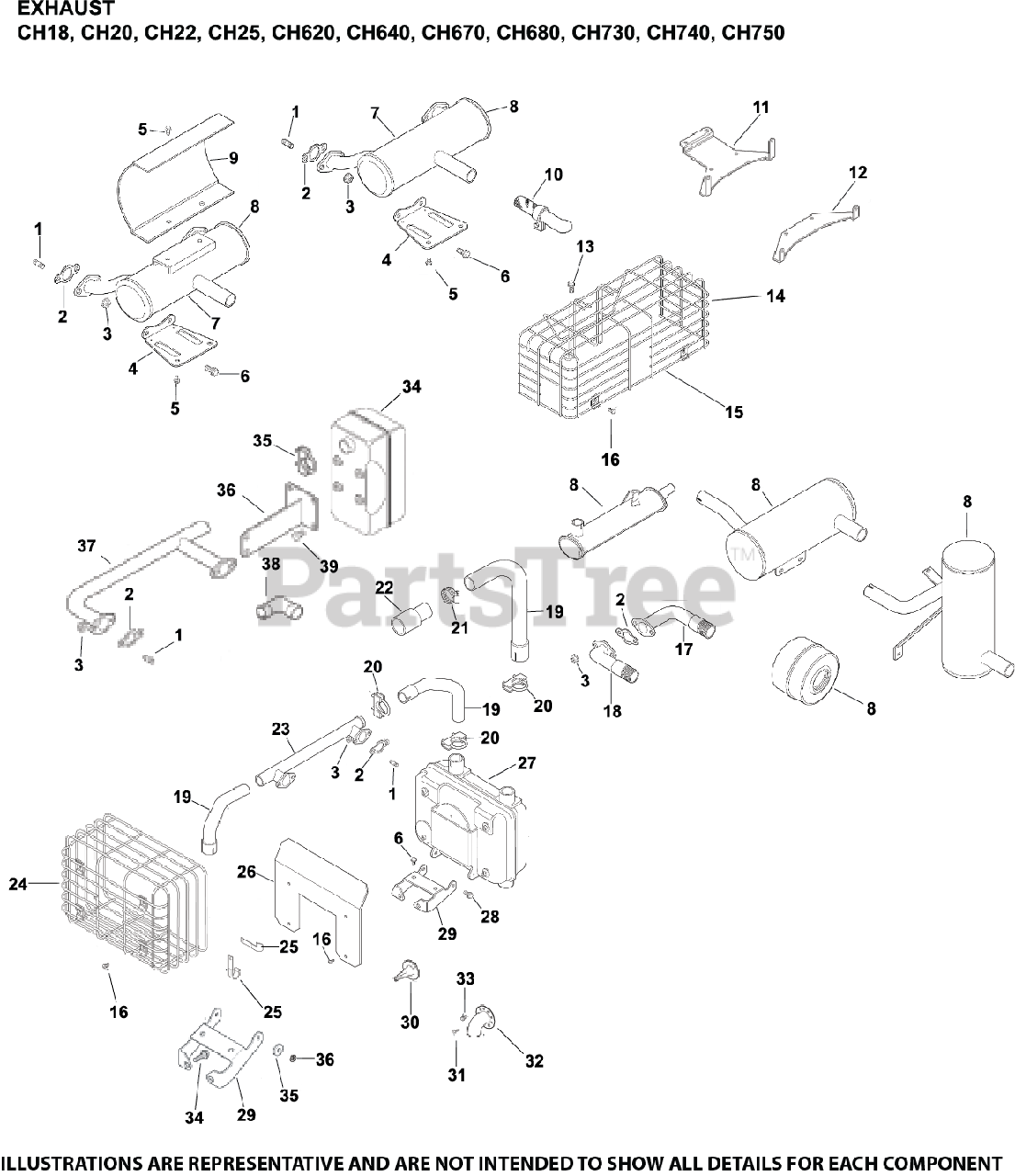

Exhaust Group 11-24-14 CH18-750 Parts Diagram

  • Title

1

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

2

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

3

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

4

Kohler 24 126 12-S

BRACKET, MUFFLER

$15.99

$

Usually ships in 2-5 days

0

5

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

6

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

7

Kohler 24 786 06-S

KIT, MUFFLER

$230.99

$

Usually ships in 2-5 days

0

8

Kohler 24 068 06-S

MUFFLER, CANISTER-STRT OUTLET - USE 24 068 129-S
(Superseded to 24 068 129-S)

$224.99

$

Usually ships in 2-5 days

0

12

Kohler 24 126 10-S

BRACKET, MUFFLER GUARD SP

$34.99

$

Usually ships in 2-5 days

0

13

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

14

Kohler 24 314 02-S

GUARD, MUFFLER

$153.99

$

Usually ships in 2-5 days

0

15

Kohler 24 755 80-S

KIT, MUFFLER GUARD

$245.99

$

Usually ships in 2-5 days

0

25086400-S

Kohler 25 086 400-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
