CH22-76576 - Kohler Command PRO Twin Engine, Made for Champion, 22hp, 16.4kW Exhaust 11-24-72 CH682-752 Parts Diagram

Command PRO Twin Engine, Made for Champion, 22hp, 16.4kW

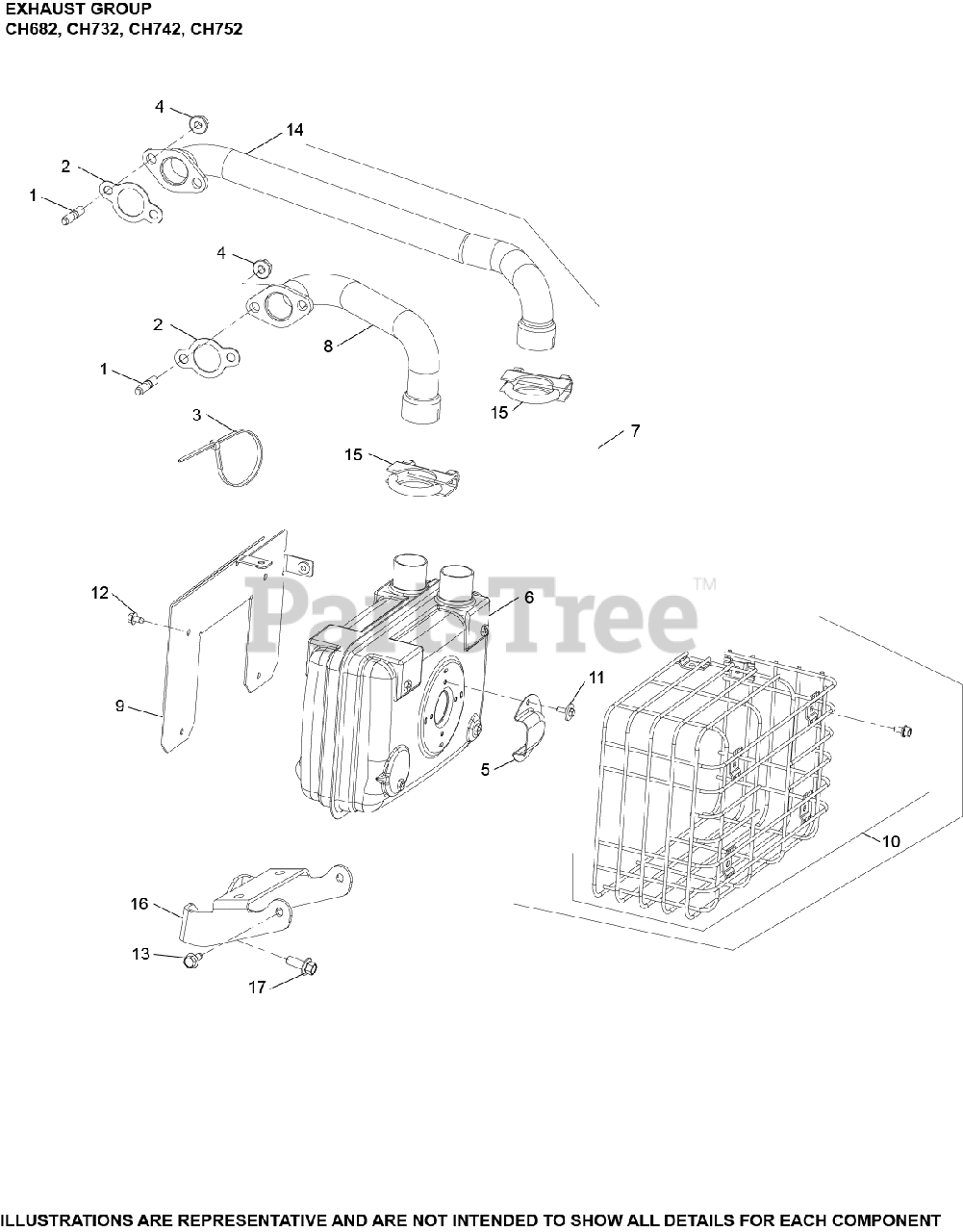

Exhaust 11-24-72 CH682-752 Parts Diagram

  • Title

1

Kohler 25 072 24-S

STUD

$3.99

$

In Stock, only 3 left!

0

2

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

4

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

5

Kohler 12 265 02-S

DEFLECTOR, EXHAUST

$14.99

$

Usually ships in 2-5 days

0

6

Kohler 24 068 30-S

MUFFLER, STARTER SIDE/STRAIGHT USE 24 068 156-S
(Superseded to 24 068 156-S)

$434.99

$

Usually ships in 2-5 days

0

7

Kohler 24 786 19-S

MUFFLER KIT, STARTER SIDE/STRAIGHT

$486.99

$

Usually ships in 2-5 days

0

8

Kohler 24 164 20-S

MANIFOLD, EXHAUST

$143.99

$

Usually ships in 2-5 days

0

9

Kohler 24 314 16-S

HEAT SHIELD, MUFFLER USE 24 314 58-S
(Superseded to 24 314 58-S)

$66.99

$

In Stock, only 1 left!

0

10

Kohler 24 755 149-S

KIT, WIRE GUARD

$130.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 40-S

SCREW, SEMS DRILL #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

13

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

15

Kohler 24 237 06-S

CLAMP, MUFFLER

$6.99

$

Usually ships in 2-5 days

0

16

Kohler 24 126 15-S

BRACKET, MUFFLER

$22.99

$

Usually ships in 2-5 days

0

17

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0
