CH22-76537 - Kohler Command PRO Twin Engine, Made for Gardner, 22hp, 16.4kW Ignition/Electrical 5-24-490 Parts Diagram

Command PRO Twin Engine, Made for Gardner, 22hp, 16.4kW

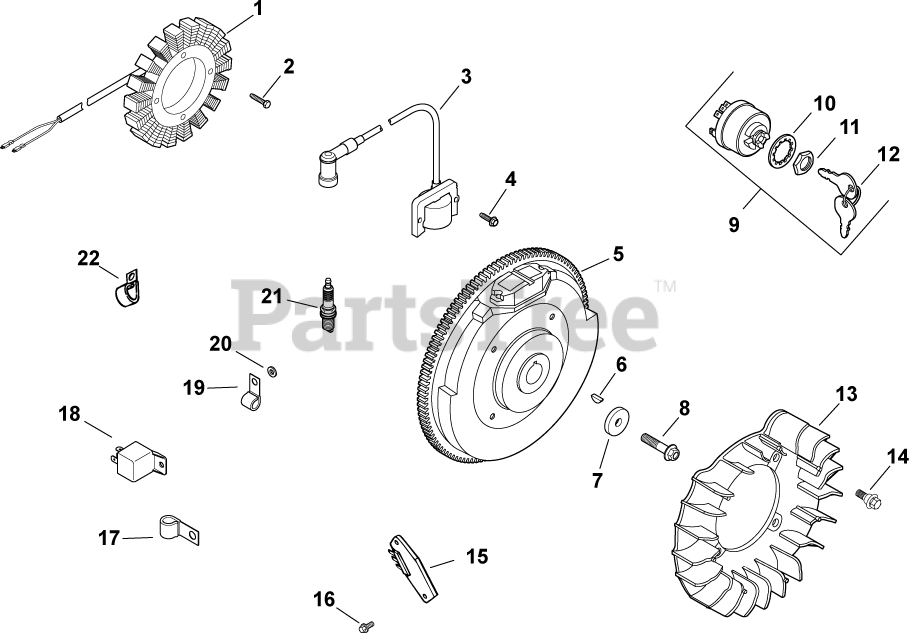

Ignition/Electrical 5-24-490 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

Note: (includes 25 452 01-S)

$194.99

$

In Stock, only 1 left!

0

2

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30

$

$

Not available

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

5

Kohler 24 025 55-S

FLYWHEEL

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 10-12)

$63.99

$

In Stock, only 4 left!

0

10

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

11

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

12

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 1 left!

0

13

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

Usually ships in 2-5 days

0

14

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

15

Kohler 25 403 05-S

REG/RECTIFIER (20/25 AMP)-USE 25 403 20-
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 20+

0

16

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

17

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

18

Kohler 25 404 01-S

RELAY

$102.99

$

Usually ships in 2-5 days

0

19

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

20

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

21

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

22

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$44.99

$

Usually ships in 2-5 days

0

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 2 left!

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 1 left!

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

5217618-S

Kohler 52 176 18-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$62.99

$

Usually ships in 2-5 days

0

X-7-8-S

Kohler X-7-8-S

SCREW, CAP HD 3/8-16x3/4"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

4715403-S

Kohler 47 154 03-S

CLIP

Note: NOT ILLUSTRATED

$7.49

$

Usually ships in 2-5 days

0

M-561010-S

Kohler M-561010-S

SCREW, THRD FRM M5X0.8X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

8275525-S

Kohler 82 755 25-S

KIT, OIL SWITCH BY-PASS

Note: NOT ILLUSTRATED (includes 22, X-7-8-S, 47 154 03-S, 52 176 18-S, M-561010-S)

$102.99

$

Usually ships in 2-5 days

0
