CH22-76532 - Kohler Command PRO Twin Engine, Made for EPG, 22hp, 16.4kW Fuel System 8-24-194 Parts Diagram

Command PRO Twin Engine, Made for EPG, 22hp, 16.4kW

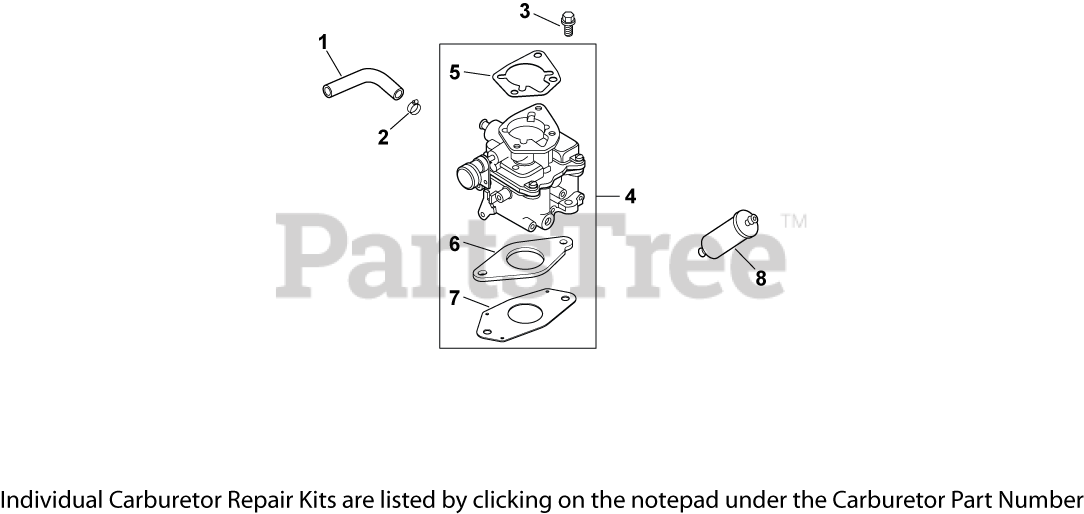

Fuel System 8-24-194 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 3 left!

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

4

Kohler 24 853 58-S

KIT, CARBURETOR W/GASKETS
(Superseded to 24 853 310-S)

Note: (includes 5-7)

$291.99

$

In Stock, only 1 left!

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

6

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 9

0

7

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 5

0

8

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0
