CH22-76518 - Kohler Command PRO Twin Engine, Made for Encore Mfg, 22hp, 16.4kW Starting System 7-24-8 (TP-2430-C) Parts Diagram

Command PRO Twin Engine, Made for Encore Mfg, 22hp, 16.4kW

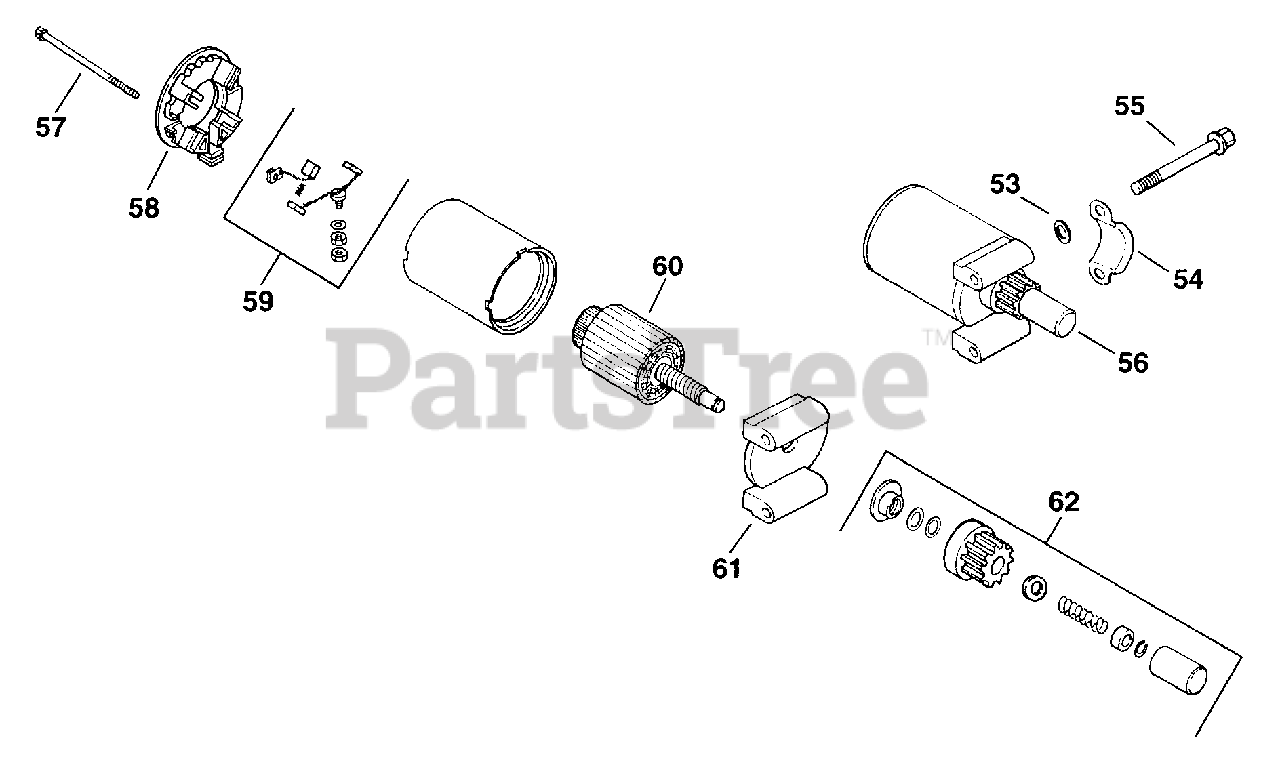

Starting System 7-24-8 (TP-2430-C) Parts Diagram

  • Title
53

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

54

Kohler 24 096 05-S

COVER, PINION

$12.99

$

Usually ships in 2-5 days

0

55

Kohler M-0839070

SCREW - USE M-839070

$

$

Not available

56

Kohler 25 098 03-S

USE 25 098 06-S STARTER
(Superseded to 25 098 07-S)

Note: Includes 55-60

$268.99

$

Usually ships in 2-5 days

0

57

Kohler 12 086 25-S

SCREW - (#DSC)

$

$

Not available

58

Kohler 12 227 11-S

COMMUTATOR, END CAP

$104.99

$

Usually ships in 2-5 days

0

59

Kohler 82 755 28-S

KIT, BRUSH & SPRING - DISCONTINUED

$

$

Not available

60

Kohler 45 170 03-S

ARMATURE ASSY - DISCONTINUED

$

$

Not available

61

Kohler 12 227 06-S

USE 12 227 17-S CAP
(Superseded to 12 227 17-S)

$

$

Not available

62

Kohler 12 755 54-S

KIT, DRIVE

$124.99

$

Usually ships in 2-5 days

0
