CH22-76518 - Kohler Command PRO Twin Engine, Made for Encore Mfg, 22hp, 16.4kW Ignition/Electrical (Cont.) 5-24-406 (TP-2439-C) Rev 10/3/2006 Parts Diagram

Command PRO Twin Engine, Made for Encore Mfg, 22hp, 16.4kW

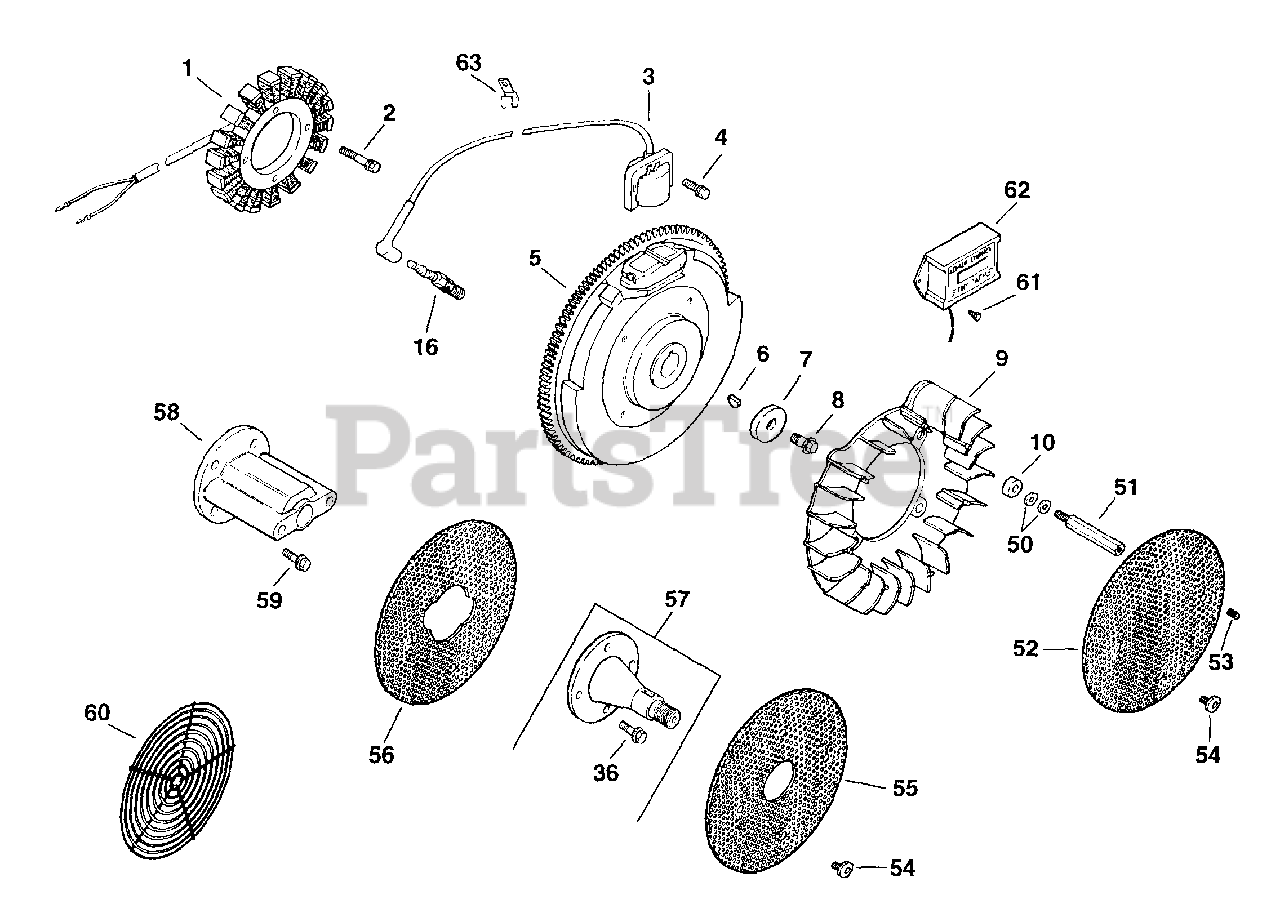

Ignition/Electrical (Cont.) 5-24-406 (TP-2439-C) Rev 10/3/2006 Parts Diagram

  • Title

1

Kohler 24 085 01

KIT - USE 54 755 09
(Superseded to 54 755 09)

$149.99

$

In Stock, Qty 5

0

2

Kohler M-0548025

SCREW - USE M-548025
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$

$

Not available

4

Kohler SM-0545020

Screw, hex. flange M5x0.8x20
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

5

Kohler 24 025 01-S

USE 24 025 04-S FLYWHEEL
(Superseded to 24 025 55-S)

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 9

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$

$

Not available

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 24 157 01-S

FAN (KM)-USE 24 157 15-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 7

0

10

Kohler 12 112 01

BOLT - USE 25 086 47
(Superseded to 25 086 47)

$2.49

$

In Stock, Qty 7

0

16

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

50

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

51

Kohler 24 072 01

KIT - USE 24 755 79
(Superseded to 24 755 79)

$130.99

$

Usually ships in 2-5 days

0

52

Kohler 24 162 13

SCREEN - USE 24 162 20
(Superseded to 24 162 41-S)

$24.99

$

In Stock, only 1 left!

0

53

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

54

Kohler M-0657010

SCREW - USE M-657010
(Superseded to M-657010)

$130.99

$

Usually ships in 2-5 days

0

Harness, wiring

Note: 24-176-21

$

$

Not available

Harness, wiring

Note: 24-176-40

$

$

Not available

2451804

Kohler 24 518 04

LEAD - USE 25 518 34
(Superseded to 25 518 34)

Note: 4" - 18 gauge - terminals: 2 insulated grip barrel eyelets

$6.99

$

Usually ships in 2-5 days

0

2451806-S

Kohler 24 518 06-S

LEAD - DISCONTINUED

Note: 6" - 14 gauge - terminals: 1 uninsulated push on tab, 1 insulated grip barrel eyelet. Use before Serial No. 2423100017

$

$

Not available
