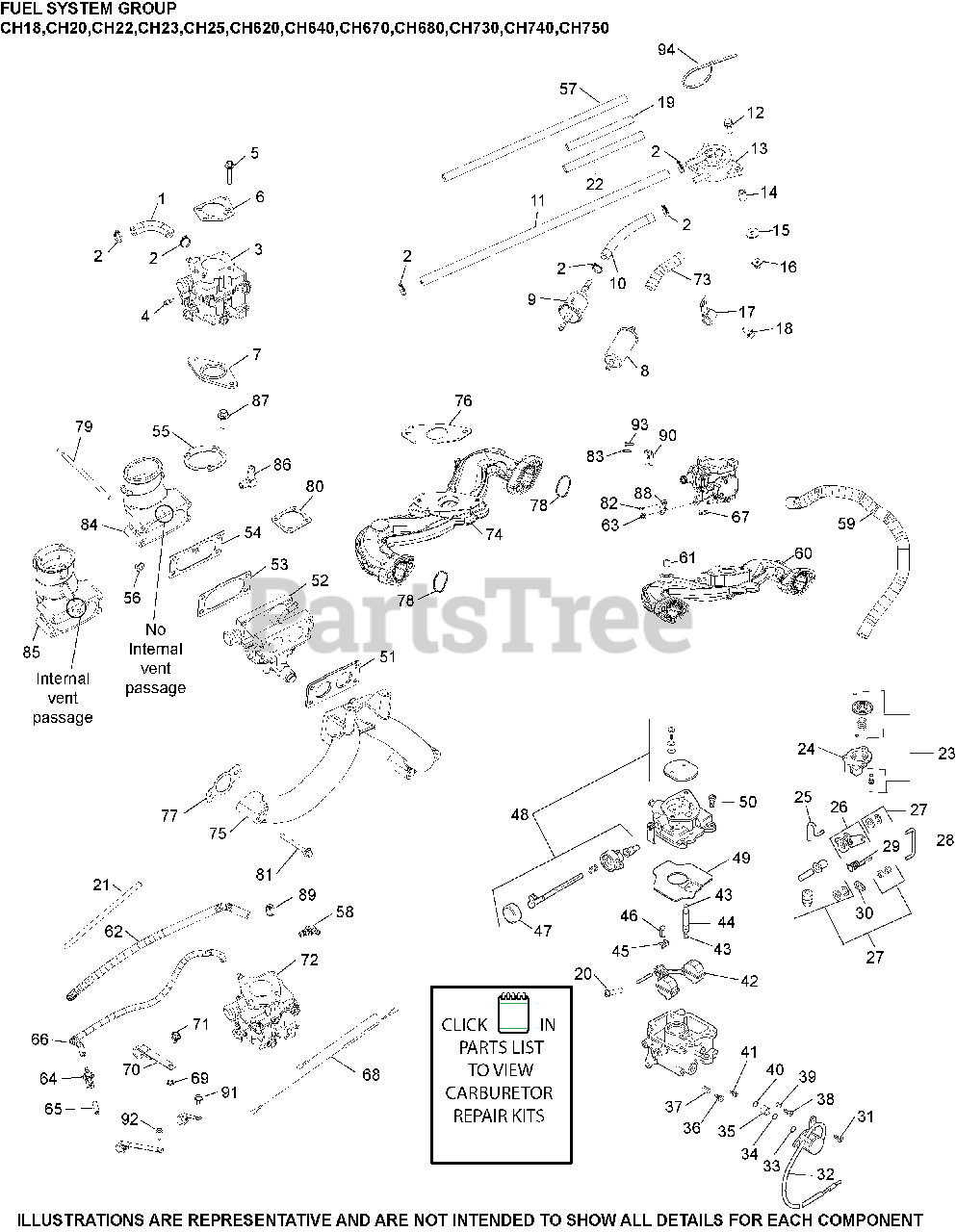

CH22-76518 - Kohler Command PRO Twin Engine, Made for Encore Mfg, 22hp, 16.4kW Fuel System Group 8-24-501 CH18-750 Parts Diagram

Command PRO Twin Engine, Made for Encore Mfg, 22hp, 16.4kW

Fuel System Group 8-24-501 CH18-750 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 59-S

KIT, CARBURETOR W/GASKETS
(Superseded to 24 853 311-S)

$288.99

$

In Stock, only 1 left!

0

5

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

9

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

32

Kohler 24 757 01-S

KIT, SOLENOID

$227.99

$

In Stock, only 1 left!

0

42

Kohler 24 757 02-S

KIT, REPAIR FLOAT

$133.99

$

Usually ships in 2-5 days

0

48

Kohler 24 757 07-S

KIT, REPAIR CHOKE

$95.99

$

In Stock, only 1 left!

0

64

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

65

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

66

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 1 left!

0

68

Kohler 24 518 24-S

LEAD, GROUND

$2.49

$

In Stock, only 1 left!

0

69

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

74

Kohler 24 164 224-S

KIT, INTAKE MANIFOLD
(Superseded to 24 164 93-S)

$184.99

$

Usually ships in 2-5 days

0

76

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

78

Kohler 24 153 27-S

O-RING, INTAKE PORT

$3.99

$

In Stock, Qty 8

0
