CH22-66561 - Kohler Command PRO Twin Engine, Made for Toro, 22hp, 16.4kW Ignition/Electrical 5-24-285 Parts Diagram

Command PRO Twin Engine, Made for Toro, 22hp, 16.4kW

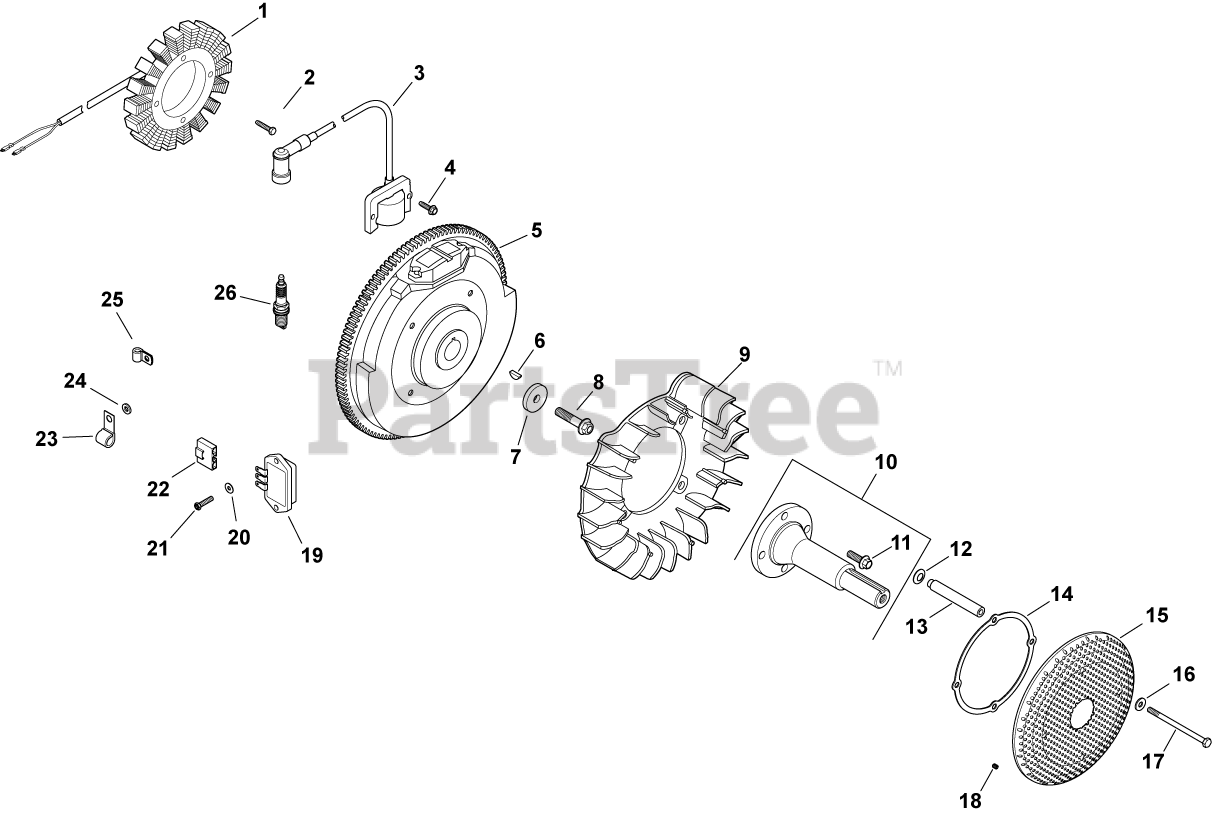

Ignition/Electrical 5-24-285 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 8

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

5

Kohler 24 025 55-S

FLYWHEEL

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

Usually ships in 2-5 days

0

10

Kohler 24 144 25-S

SHAFT, FRONT DRIVE

Note: (includes 11)

$208.99

$

Usually ships in 2-5 days

0

11

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 112 14-S

SPACER

$18.99

$

Usually ships in 2-5 days

0

14

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

15

Kohler 24 162 38-S

SCREEN, GRASS

$24.99

$

In Stock, only 1 left!

0

16

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

17

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

18

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

20

Kohler 25 468 07-S

WASHER, FLAT 7/32"

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

23

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

24

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

25

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

26

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

$2.49

$

Usually ships in 2-5 days

0

2417649-S

Kohler 24 176 49-S

HARNESS, WIRING

$25.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

$5.49

$

In Stock, only 1 left!

0

4115503-S

Kohler 41 155 03-S

CONNECTOR

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2417608-S

Kohler 24 176 08-S

HARNESS, WIRE-USE 24 176 171-S
(Superseded to 24 176 171-S)

Note: NOT ILLUSTRATED

$117.99

$

In Stock, only 1 left!

0

2508691-S

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
