CH22-66554 - Kohler Command PRO Twin Engine, Made for Pitteri Violini/Italy, 22hp, 16.4kW Air Intake/Filtration 10-24-70 Parts Diagram

Command PRO Twin Engine, Made for Pitteri Violini/Italy, 22hp, 16.4kW

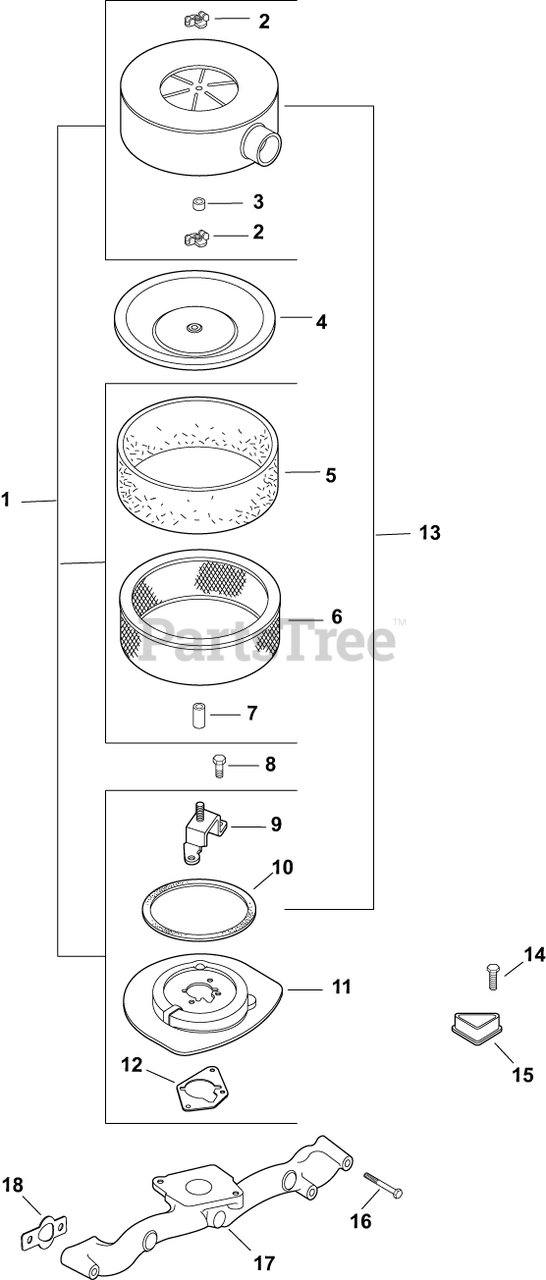

Air Intake/Filtration 10-24-70 Parts Diagram

  • Title

1

Kohler 24 755 21-S

KIT, DOME AIR CLEANER

Note: (includes 4-12, 24 113 31-S)

$210.99

$

Usually ships in 2-5 days

0

2

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 4 left!

0

3

Kohler 41 032 02-S

SEAL

$4.99

$

Usually ships in 2-5 days

0

4

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

5

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

Usually ships in 2-5 days

0

6

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 20+

0

7

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 1 left!

0

8

Kohler 24 086 53-S

SCREW, FLG THD FRM M6X1.0X16

$2.49

$

In Stock, Qty 6

0

9

Kohler 24 126 22-S

BRACKET, AIR CLEANER-USE 24 126 207-S
(Superseded to 24 126 207-S)

$13.99

$

Usually ships in 2-5 days

0

10

Kohler 24 743 18-S

KIT, AIR CLEANER COVER SEAL

Note: (includes 24 597 02-S)

$34.99

$

Usually ships in 2-5 days

0

11

Kohler 24 094 05-S

BASE, AIR CLEANER-USE 24 094 91-S
(Superseded to 24 094 91-S)

$71.99

$

Usually ships in 2-5 days

0

12

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

13

Kohler 24 096 52-S

COVER, AIR CLEANER

Note: (includes 10)

$166.99

$

Usually ships in 2-5 days

0

14

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$4.99

$

In Stock, only 2 left!

0

16

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

17

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

18

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 9

0

2443102-S

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 1 left!

0

2411331-S

Kohler 24 113 31-S

DECAL, ENGINE MAINTENANCE-DISC.

Note: NOT ILLUSTRATED

$

$

Not available

2459702-S

Kohler 24 597 02-S

ADHESIVE

Note: NOT ILLUSTRATED

$14.99

$

Usually ships in 2-5 days

0
