CH22-66548 - Kohler Command PRO Twin Engine, Made for Simplicity, 22hp, 16.4kW Fuel System 8-24-151 Parts Diagram

Command PRO Twin Engine, Made for Simplicity, 22hp, 16.4kW

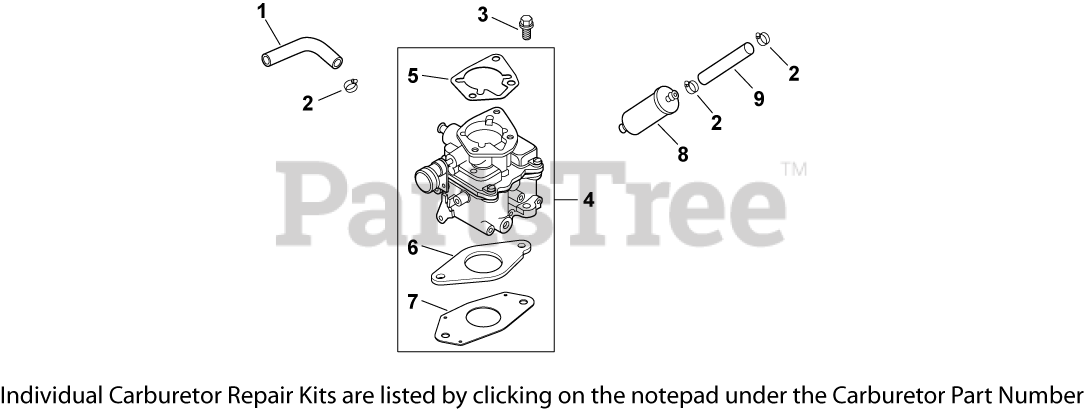

Fuel System 8-24-151 Parts Diagram

  • Title
1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

4

Kohler 24 853 33-S

KIT, CARBURETOR W/GASKETS-KSF

Note: (inclues 5-7)

$434.99

$

Usually ships in 2-5 days

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

6

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 9

0

7

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 5

0

8

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

9

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

2510037-S

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 7

0

2408612-S

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

Note: NOT ILLUSTRATED

$

$

Not available
