CH22-66546 - Kohler Command PRO Twin Engine, Made for Metalcraft, 22hp, 16.4kW Head/Valve/Breather 4-24-72 Parts Diagram

Command PRO Twin Engine, Made for Metalcraft, 22hp, 16.4kW

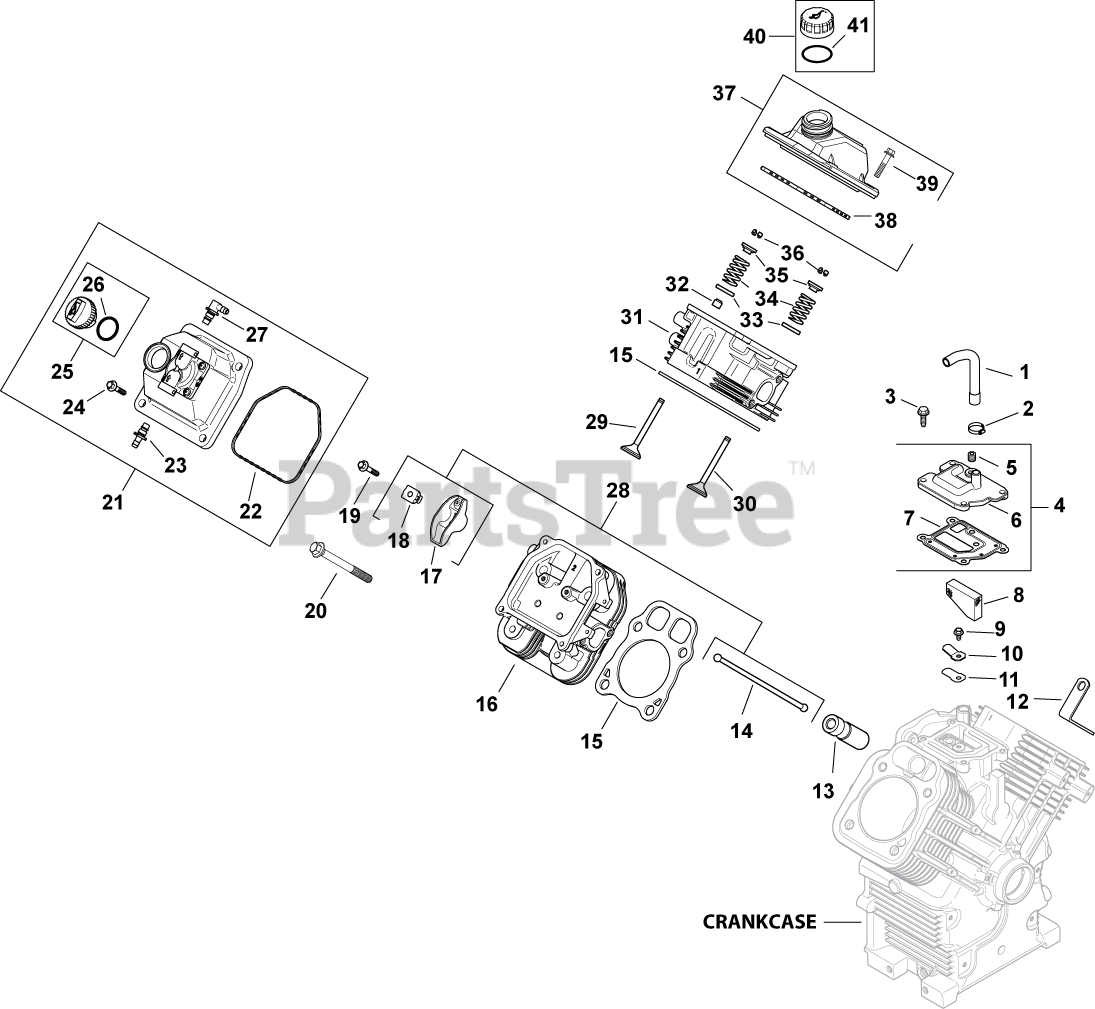

Head/Valve/Breather 4-24-72 Parts Diagram

  • Title

1

Kohler 24 326 89-S

HOSE, BREATHER

$9.99

$

In Stock, Qty 6

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

4

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

Note: (includes 5-7)

$31.99

$

In Stock, only 2 left!

0

5

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

6

Kohler 24 096 86-S

COVER, BREATHER -USE 24 033 01-S
(Superseded to 24 033 01-S)

$31.99

$

In Stock, only 2 left!

0

7

Kohler 24 041 51-S

GASKET, BREATHER-USE 24 041 67-S
(Superseded to 24 041 67-S)

$13.99

$

In Stock, Qty 9

0

8

Kohler 24 050 11-S

FILTER, BREATHER

$2.49

$

Usually ships in 2-5 days

0

9

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

10

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, Qty 6

0

11

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, Qty 7

0

12

Kohler 24 445 01-S

STRAP, LIFTING-USE 25 445 03-S
(Superseded to 25 445 03-S)

$

$

Not available

13

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

Note: (includes 25 357 14-S)

$23.99

$

In Stock, only 4 left!

0

14

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, Qty 9

0

15

Kohler 24 841 01-S

KIT, CYL HEAD GASKET (C17-22)

$45.99

$

Usually ships in 2-5 days

0

16

Kohler 24 318 71-S

HEAD, ASSEM CYLINDER #2 -USE 24 318 115-
(Superseded to 24 318 203-S)

Note: (includes 25 072 04-S)

$240.99

$

In Stock, only 1 left!

0

17

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

18

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

19

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

20

Kohler 12 086 16-S

SCREW - USE 62 086 08-S
(Superseded to 62 086 08-S)

$5.99

$

In Stock, Qty 5

0

21

Kohler 24 559 10-S

KIT, VALVE COVER-FUEL PUMP

Note: (includes 22-27)

$168.99

$

In Stock, Qty 13

0

22

Kohler 24 153 23-S

O-RING (BLACK)

$18.99

$

In Stock, only 1 left!

0

23

Kohler 25 326 03-S

CONNECTOR

$3.99

$

In Stock, only 1 left!

0

24

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

25

Kohler 24 227 02-S

CAP ASSY, OIL FILL (YELLOW)

Note: (includes 26)

$7.99

$

In Stock, Qty 6

0

26

Kohler 24 153 09-S

O-RING-USE 24 153 32-S
(Superseded to 24 153 32-S)

$2.49

$

In Stock, only 4 left!

0

27

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 1 left!

0

28

Kohler 24 755 66-S

KIT, VALVE TRAIN

Note: (includes 14, 17, 18)

$45.99

$

In Stock, only 3 left!

0

29

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, only 4 left!

0

2401602-S

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

30

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 17

0

2401702-S

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

31

Kohler 24 318 68-S

HEAD, ASSEM CYLINDER #1 -USE 24 318 107-
(Superseded to 24 318 202-S)

Note: (includes 25 072 04-S)

$240.99

$

In Stock, only 1 left!

0

32

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

33

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 8

0

34

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 2 left!

0

35

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

36

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

37

Kohler 24 755 140-S

KIT, VALVE COVER-OIL FILL

Note: (includes 38, 39)

$36.99

$

In Stock, only 1 left!

0

38

Kohler 24 153 30-S

O-RING (YELLOW), VALVE COVER
(Superseded to 25 153 24-S)

$10.99

$

In Stock, Qty 20+

0

39

Kohler 24 086 32-S

SCREW, SHOULDER

$2.99

$

In Stock, Qty 11

0

40

Kohler 24 755 46-S

KIT, OIL FILL CAP (YELLOW)

Note: (includes 43)

$11.99

$

In Stock, only 1 left!

0

41

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

2411218-S

Kohler 24 112 18-S

SPACER

Note: NOT ILLUSTRATED

$18.99

$

Usually ships in 2-5 days

0

4715401-S

Kohler 47 154 01-S

CLIP, CABLE

Note: NOT ILLUSTRATED

$5.49

$

In Stock, Qty 5

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2507204-S

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 3 left!

0
