CH22-66510 - Kohler Command PRO Twin Engine, Made for MTD, 22hp, 16.4kW Ignition/Electrical 5-24-48 Parts Diagram

Command PRO Twin Engine, Made for MTD, 22hp, 16.4kW

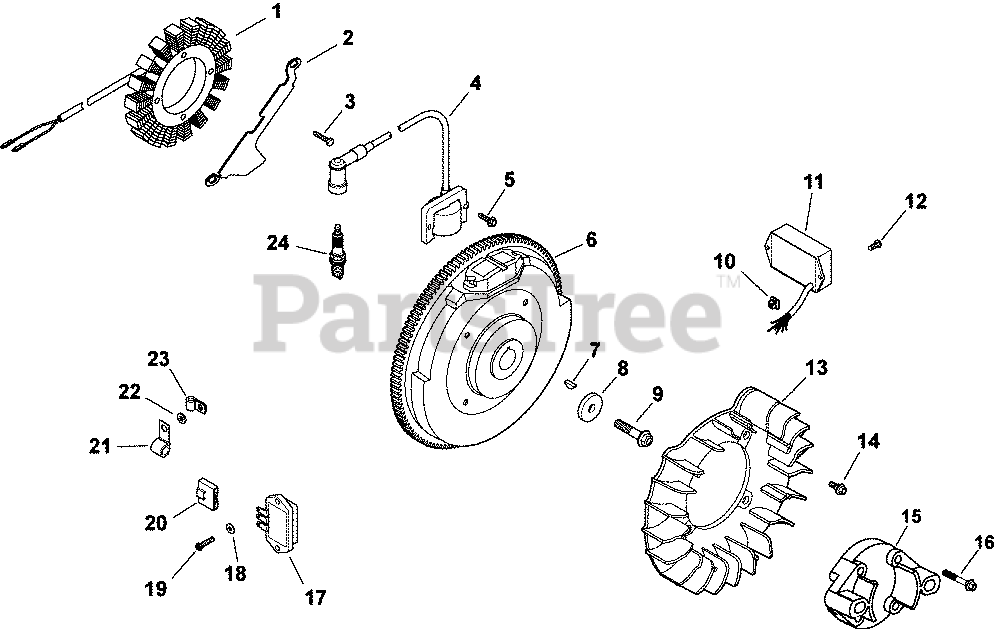

Ignition/Electrical 5-24-48 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 15

0

2

Kohler 24 126 139-S

BRACKET, STATOR WIRE

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 584 36-S

MODULE,IGNITION

$102.99

$

In Stock, only 2 left!

0

5

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

In Stock, only 4 left!

0

6

Kohler 24 025 05-S

FLYWHEEL, PAINTED-USE 24 025 56-S
(Superseded to 24 025 56-S)

$372.99

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 24 584 09-S

MODULE, SPEED ADVANCE

$

$

Not available

12

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

$2.99

$

In Stock, only 2 left!

0

13

Kohler 24 157 16-S

FAN USE 24 157 11-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 5

0

14

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

15

Kohler 24 029 12-S

ADAPTER, DRIVE SHAFT

$33.99

$

In Stock, only 1 left!

0

16

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

17

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

18

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

19

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

21

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

22

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

23

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

24

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

2451812-S

Kohler 24 518 12-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2417642-S

Kohler 24 176 42-S

HARNESS, WIRING USE 24 176 234-S
(Superseded to 24 176 234-S)

Note: NOT ILLUSTRATED

$102.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
