CH20-64754 - Kohler Command PRO Twin Engine, Made for Mertz, 20hp, 14.9kW Air Intake Group 10-24-134 ch18-750 Parts Diagram

Command PRO Twin Engine, Made for Mertz, 20hp, 14.9kW

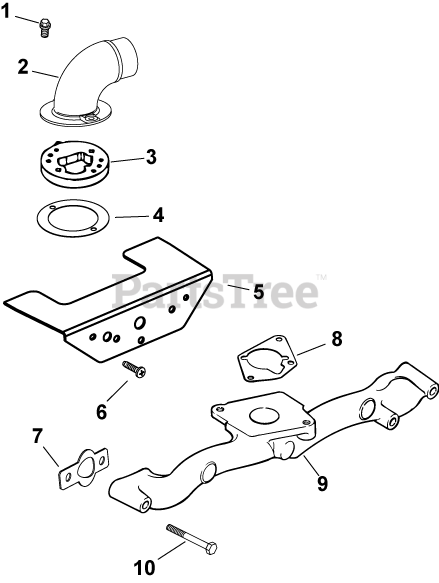

Air Intake Group 10-24-134 ch18-750 Parts Diagram

  • Title

1

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

2

Kohler 24 029 21-S

ADAPTER, REMOTE AIR CLEANER

$139.99

$

Usually ships in 2-5 days

0

3

Kohler 24 029 66-S

ADAPTER ASSY (CH18 / 20)-USE 24 029 97-S
(Superseded to 24 029 97-S)

$177.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 34-S

GASKET, ADAPTER

$3.49

$

Usually ships in 2-5 days

0

5

Kohler 24 314 25-S

SHIELD, DEBRIS

$44.99

$

Usually ships in 2-5 days

0

6

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 3 left!

0

7

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

8

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

9

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

10

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

2474320-S

Kohler 24 743 20-S

KIT, AIR CLEANER ELBOW

Note: NOT ILLUSTRATED

$247.99

$

Usually ships in 2-5 days

0
