CH20-64745 - Kohler Command PRO Twin Engine, Made for Epps, 20hp, 14.9kW Engine Controls Group 9-24-187 Parts Diagram

Command PRO Twin Engine, Made for Epps, 20hp, 14.9kW

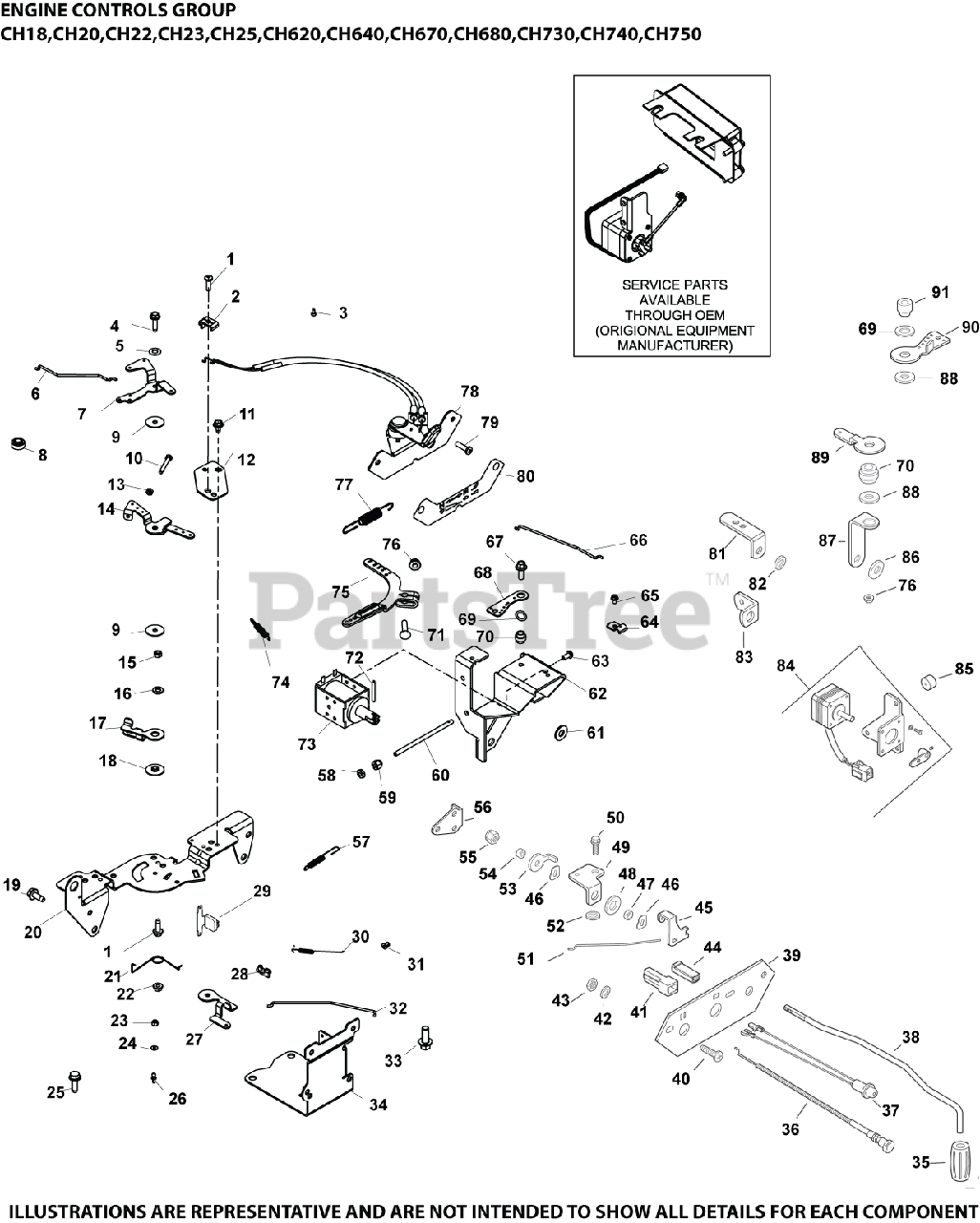

Engine Controls Group 9-24-187 Parts Diagram

  • Title

1

Kohler 25 086 405-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

2

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

4

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

5

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

6

Kohler 24 079 22-S

LINKAGE, CHOKE

$6.99

$

In Stock, Qty 7

0

7

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

9

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

10

Kohler M-401030-S

SCREW, CAP M4X.7X30

$3.49

$

In Stock, Qty 9

0

11

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

12

Kohler 24 126 99-S

BRACKET, CABLE SUPPORT

$2.99

$

In Stock, only 2 left!

0

13

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0

14

Kohler 24 090 13-S

LEVER, THROTTLE CONTROL

$9.49

$

In Stock, only 1 left!

0

15

Kohler M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

16

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

19

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

20

Kohler 24 126 176-S

BRACKET, CONTROL
(Superseded to 24 126 263-S)

$10.99

$

In Stock, only 1 left!

0

22

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

27

Kohler 24 090 65-S

LEVER, THROTTLE ACTUATOR

$5.49

$

In Stock, only 1 left!

0

28

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

30

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, Qty 9

0

31

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

32

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 5

0

57

Kohler 24 089 51-S

SPRING, THROTTLE LIMITER

$5.49

$

In Stock, only 1 left!

0

71

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

75

Kohler 24 090 57-S

LEVER, GOVERNOR - (#2409069S)
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

76

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

77

Kohler 24 089 48-S

SPRING, GOVERNOR (PURPLE)

$8.99

$

In Stock, Qty 9

0

78

Kohler 24 225 02-S

CABLE ASSY, CONTROL - (#2422508S)
(Superseded to 24 225 08-S)

$64.99

$

In Stock, only 1 left!

0

80

Kohler 24 113 92-S

DECAL, CONTROL PANEL

$4.49

$

In Stock, only 2 left!

0

25086423-S

Kohler 25 086 423-S

SCREW, HEX WASHER HI-LO

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
