CH20-64737 - Kohler Command PRO Twin Engine, Made for Cub Cadet, 20hp, 14.9kW Fuel System Group 8-24-419 Parts Diagram

Command PRO Twin Engine, Made for Cub Cadet, 20hp, 14.9kW

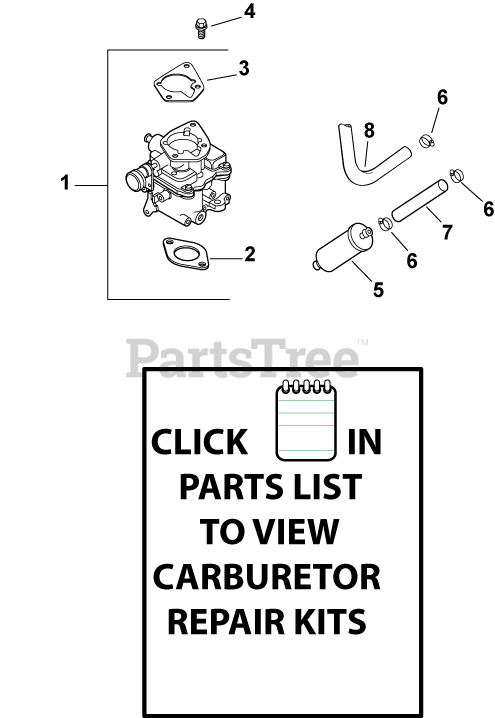

Fuel System Group 8-24-419 Parts Diagram

  • Title

1

Kohler 24 853 32-S

KIT, CARBURETOR W/GASKETS KSF
(Superseded to 24 853 309-S)

$289.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 7

0

3

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

4

Kohler M-651025-S

SCREW - USE 25 086 124-S
(Superseded to 25 086 124-S)

Note: M6x1.0x25

$2.49

$

In Stock, only 3 left!

0

5

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

6

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

7

Kohler 52 353 20-S

LINE, FUEL 10"

Note: 10"

$

$

Not available

8

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

2451824-S

Kohler 24 518 24-S

LEAD, GROUND

Note: (solenoid to carb mounting screw)

$2.49

$

In Stock, only 1 left!

0
