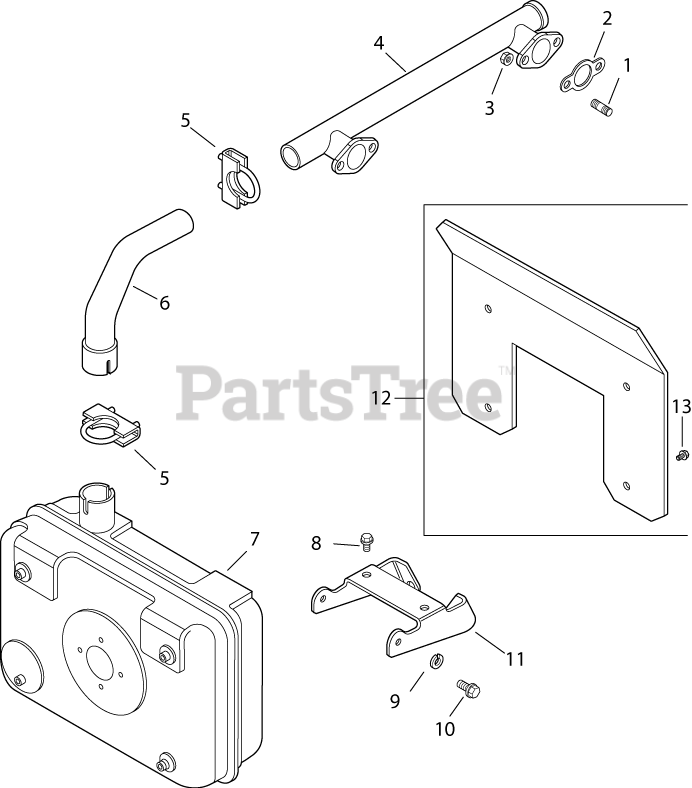

CH20-64734 - Kohler Command PRO Twin Engine, Basic Version, 20hp, 14.9kW Exhaust 11-24-18 Parts Diagram

Command PRO Twin Engine, Basic Version, 20hp, 14.9kW

Exhaust 11-24-18 Parts Diagram

  • Title

1

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

2

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

3

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

4

Kohler 24 164 10-S

MANIFOLD, EXHAUST

$141.99

$

Usually ships in 2-5 days

0

5

Kohler 24 237 01-S

CLAMP, MUFFLER

$9.49

$

Usually ships in 2-5 days

0

6

Kohler 24 382 03-S

PIPE, EXHAUST

$37.99

$

Usually ships in 2-5 days

0

7

Kohler 24 068 13-S

MUFFLER, STARTER SIDE USE 24 068 152-S
(Superseded to 24 068 152-S)

$291.99

$

Usually ships in 2-5 days

0

8

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

9

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

10

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 14

0

11

Kohler 24 126 15-S

BRACKET, MUFFLER

$22.99

$

Usually ships in 2-5 days

0

12

Kohler 24 755 45-S

KIT, HEAT SHIELD

Note: (includes 13)

$58.99

$

Usually ships in 2-5 days

0

13

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

2478608-S

Kohler 24 786 08-S

KIT,MUFF-ST SIDE 15.25"x10"x7.5"

Note: NOT ILLUSTRATED (includes 2-13,24,154,03-S & 25 454 04-S)

$393.99

$

Usually ships in 2-5 days

0

2415403-S

Kohler 24 154 03-S

CLIP, CABLE - USE 24 154 10-S
(Superseded to 24 154 10-S)

Note: NOT ILLUSTRATED

$2.99

$

In Stock, only 2 left!

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
