CH20-64728 - Kohler Command PRO Twin Engine, Made for Cub Cadet, 20hp, 14.9kW Ignition/ Charging Group 5-24-780 CH18-750 Parts Diagram

Command PRO Twin Engine, Made for Cub Cadet, 20hp, 14.9kW

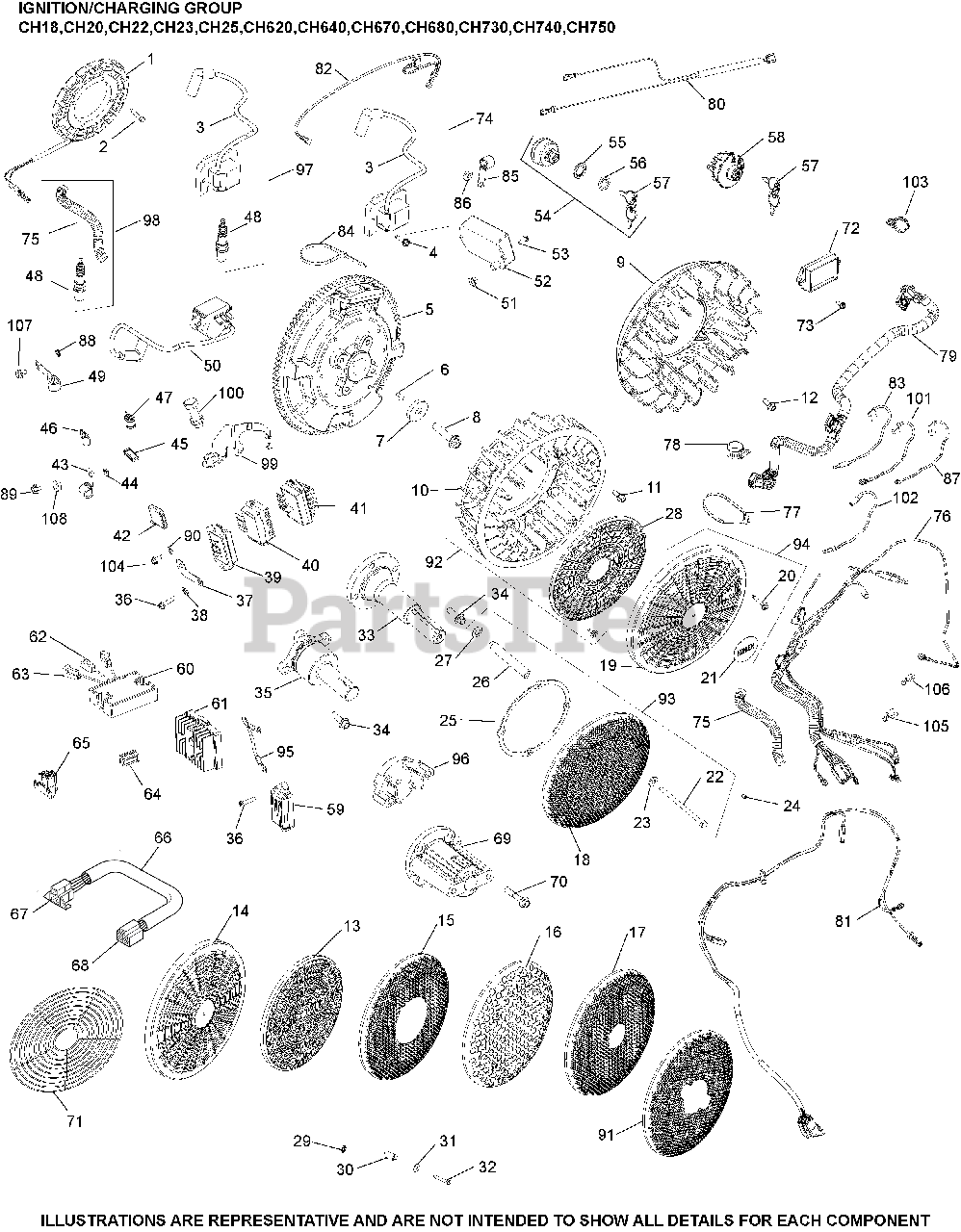

Ignition/ Charging Group 5-24-780 CH18-750 Parts Diagram

  • Title

1

Kohler 54 755 09-S

STATOR KIT - USE 237878-S
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 7

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$

$

Not available

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

5

Kohler 24 025 04-S

FLYWHEEL, PAINTED-USE 24 025 55-S
(Superseded to 24 025 55-S)

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

20

Kohler 25 086 126-S

SCREW, SEMS DOG POINT

$5.49

$

In Stock, only 3 left!

0

28

Kohler 24 162 35-S

SCREEN,GRASS LOW PRFLE W/O HOLE

$24.99

$

Usually ships in 2-5 days

0

36

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

36

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

37

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$4.99

$

Usually ships in 2-5 days

0

39

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

42

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

47

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

48

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

73

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

76

Kohler 24 176 08-S

HARNESS, WIRE-USE 24 176 171-S
(Superseded to 24 176 171-S)

$117.99

$

In Stock, only 1 left!

0

95

Kohler 24 518 24-S

LEAD, GROUND

$2.49

$

In Stock, only 1 left!

0
