CH20-64722 - Kohler Command PRO Twin Engine, Made for Beijing Denoh, 20hp, 14.9kW Engine Controls Group 9-24-225 Parts Diagram

Command PRO Twin Engine, Made for Beijing Denoh, 20hp, 14.9kW

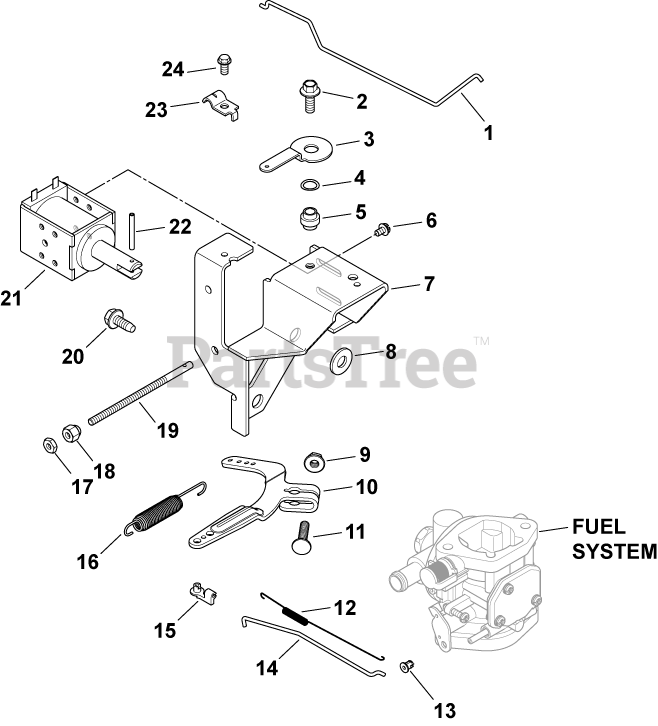

Engine Controls Group 9-24-225 Parts Diagram

  • Title
1

Kohler 24 079 23-S

LINKAGE, CHOKE
(Superseded to 24 079 67-S)

$5.99

$

Usually ships in 2-5 days

0

2

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 7

0

3

Kohler 24 090 35-S

LEVER, CHOKE CONTROL-USE 24 090 54-S
(Superseded to 24 090 54-S)

$9.49

$

Usually ships in 2-5 days

0

4

Kohler 275690-S

WASHER, SPRING 11/32"

$6.49

$

In Stock, only 1 left!

0

5

Kohler 47 112 19-S

SPACER
(Superseded to 25 112 34-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 25 086 111-S

SCREW, SLT WSH HD 8-32X1/4"

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 24 126 122-S

BRACKET, SOLENOID-USE 24 126 195-S
(Superseded to 24 126 251-S)

$81.99

$

Usually ships in 2-5 days

0

8

$2.49

$

Usually ships in 2-5 days

0

9

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

10

Kohler 24 090 52-S

LEVER, GOVERNOR-USE 24 090 58-S
(Superseded to 24 090 58-S)

$8.99

$

Usually ships in 2-5 days

0

11

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

12

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, Qty 5

0

13

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 20+

0

14

Kohler 24 079 01-S

LINKAGE, THROTTLE

$3.99

$

In Stock, Qty 8

0

15

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 15

0

16

Kohler 24 089 49-S

SPRING, GOVERNOR (ORANGE)

$8.99

$

In Stock, only 4 left!

0

17

Kohler 25 100 18-S

NUT, MACH SCREW #10-32 GRD 2

$3.49

$

Usually ships in 2-5 days

0

18

Kohler 25 100 06-S

NUT, ADJUSTING

$8.99

$

Usually ships in 2-5 days

0

19

Kohler 24 411 03-S

ROD, SPEED CONTROL

$15.99

$

Usually ships in 2-5 days

0

20

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

21

Kohler 24 435 06-S

SOLENOID, IDLE

$156.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, Qty 9

0

23

$10.99

$

Usually ships in 2-5 days

0

24

Kohler 25 086 109-S

SCREW,WSH HD TAP #10-24X13/32"

$3.49

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
