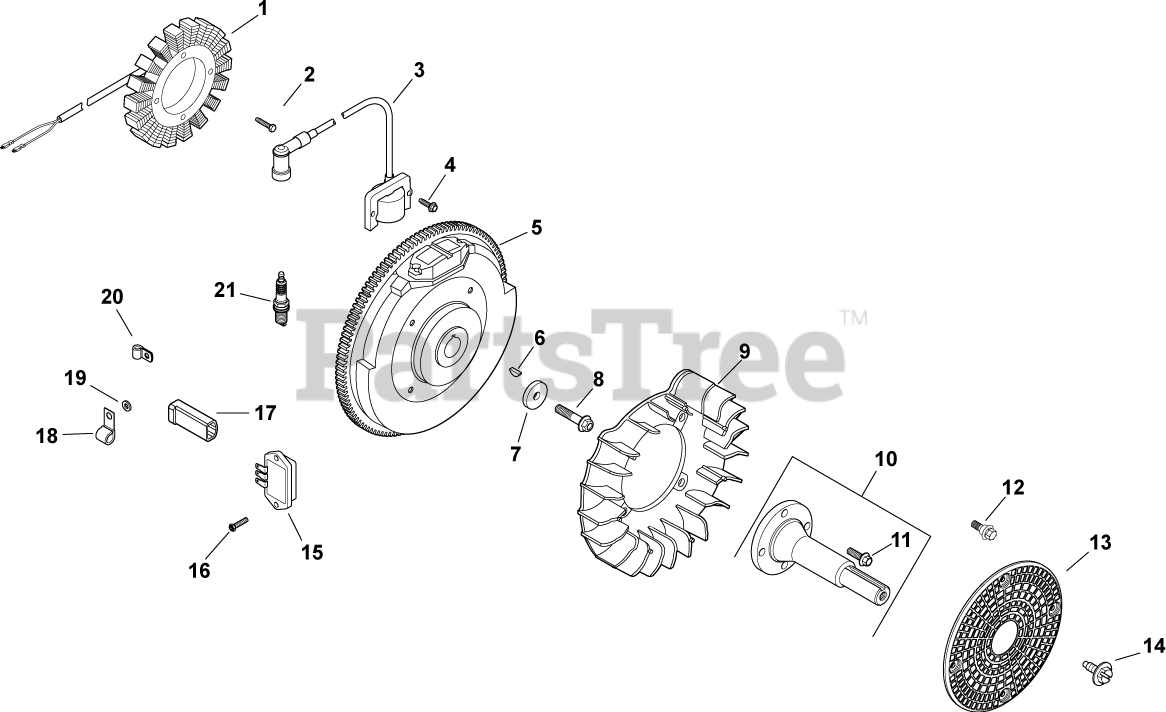

CH20-64719 - Kohler Command PRO Twin Engine, Made for Terramite, 20hp, 14.9kW Ignition/Electrical 5-24-634 Parts Diagram

Command PRO Twin Engine, Made for Terramite, 20hp, 14.9kW

Ignition/Electrical 5-24-634 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

Note: (includes 25 452 01-S)

$194.99

$

In Stock, only 1 left!

0

2

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30

$

$

Not available

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

5

Kohler 24 025 55-S

FLYWHEEL

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 5

0

10

Kohler 52 144 19-S

SHAFT

Note: (includes 11)

$417.99

$

Usually ships in 2-5 days

0

11

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

13

Kohler 24 162 43-S

SCREEN, GRASS

$19.99

$

Usually ships in 2-5 days

0

14

Kohler 25 086 126-S

SCREW, SEMS DOG POINT

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 3 left!

0

15

Kohler 25 403 21-S

REGULATOR, RECTIFIER USE 25 403 32-S
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 11

0

16

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

17

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

18

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

19

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

20

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

21

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2417614-S

Kohler 24 176 14-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$124.99

$

Usually ships in 2-5 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
