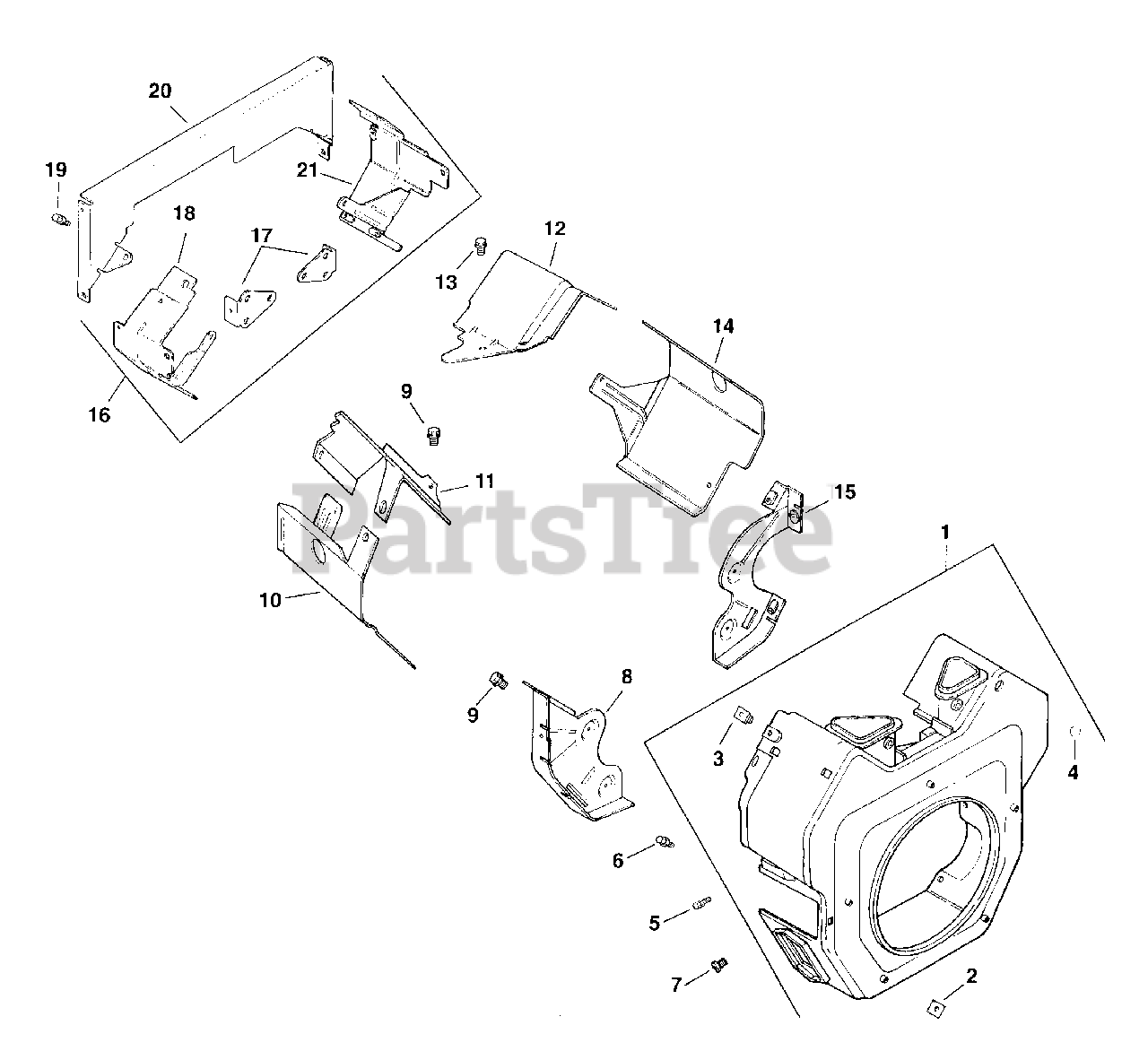

CH20-64676 - Kohler Command PRO Twin Engine, Made for MTD/Cub Cadet, 20hp, 14.9kW Blower Housing & Baffles 6-24-304 (TP-2439-C) Rev 10/4/2006 Parts Diagram

Command PRO Twin Engine, Made for MTD/Cub Cadet, 20hp, 14.9kW

Blower Housing & Baffles 6-24-304 (TP-2439-C) Rev 10/4/2006 Parts Diagram

  • Title
1

Kohler 24 027 18-S

USE 24 027 174-S BLWR HOUSING
(Superseded to 24 027 479-S)

Note: Includes 2-4. Use after Serial No. 2420100007, but before Serial No. 2507500017

$166.99

$

Usually ships in 2-5 days

0

1

Kohler 24 027 40-S

USE 24 027 176-S BLWR HOUSING
(Superseded to 24 027 479-S)

Note: Includes 2-4. Use after Serial No. 2502500007

$166.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 9

0

3

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

5

Kohler M-0545016

SCREW - USE M-545016
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

6

Kohler M-0545020

Screw, hex. flange M5x0.8x20

$

$

Not available

7

Kohler M-0551016

Screw, hex. flange M5x0.8x16
(Superseded to M-551016-S)

$2.49

$

In Stock, only 1 left!

0

8

Kohler 24 146 06

PLATE, BACKING SIDE 2 - USE 24 146 17
(Superseded to 24 146 17-S)

$25.99

$

Usually ships in 2-5 days

0

9

Kohler M-0645016

SCREW - USE M-645016
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

10

Kohler 24 063 20-S

USE 24 063 39-S BAFFLE
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Kohler 24 063 17-S

BAFFLE,VALLEY #2SIDE(KM)-USE 24 063 70-S
(Superseded to 24 063 70-S)

$9.49

$

Usually ships in 2-5 days

0

12

Kohler 24 063 24-S

USE 24 063 59-S BAFFLE
(Superseded to 24 063 59-S)

$6.49

$

In Stock, only 1 left!

0

13

Kohler M-0545010

SCREW - USE M-545010
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

14

Kohler 24 063 21

BAFFLE - USE 24 063 30
(Superseded to 24 063 85-S)

Note: Replaced by 24-063-30

$17.99

$

In Stock, only 1 left!

0

15

Kohler 24 146 08

PLATE, BACKING NO. 1 SIDE - USE 24 146 20
(Superseded to 24 146 20-S)

$

$

Not available
