CH20-64669 - Kohler Command PRO Twin Engine, Made for Gandini Mec, 20hp, 14.9kW Crankcase Group 2-24-269 Parts Diagram

Command PRO Twin Engine, Made for Gandini Mec, 20hp, 14.9kW

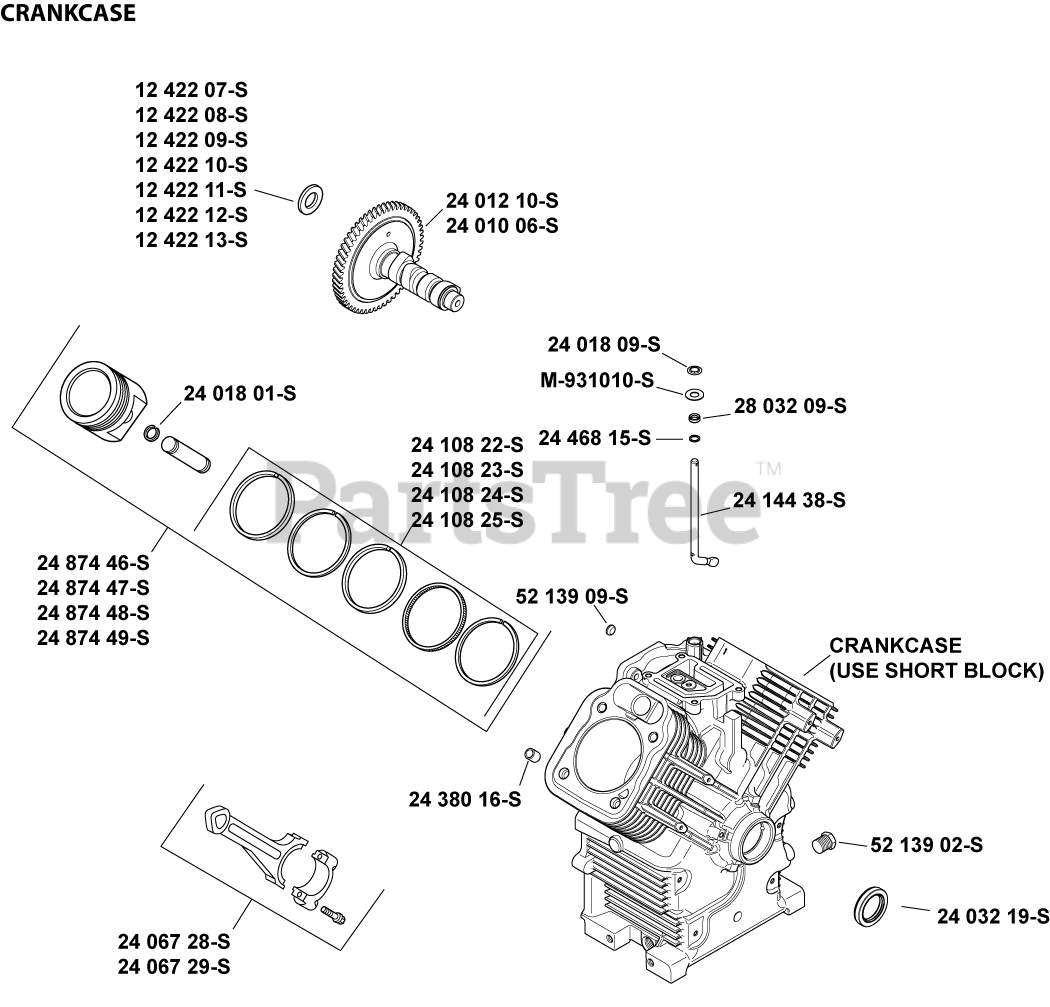

Crankcase Group 2-24-269 Parts Diagram

  • Title

2403219-S

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

2438016-S

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

5213909-S

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

2401006-S

Kohler 24 010 06-S

KIT, CAMSHAFT

$354.99

$

In Stock, only 1 left!

0

1242207-S

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

5213902-S

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

2401809-S

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

2414438-S

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

2446815-S

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

2803209-S

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

M-931010-S

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

2401801-S

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

2487446-S

Kohler 24 874 46-S

PISTON W/RINGS (STYLE A)(STD) - RING SET 24 108 22-S

$

$

Not available

2406728-S

Kohler 24 067 28-S

ROD, ASSY CONNECTING (STD)-(#2406730S)
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

2406729-S

Kohler 24 067 29-S

ROD ASSY, CONNECTING U/S (.010”) (.25 mm) -USE 24 067 31-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

2487447-S

Kohler 24 874 47-S

PISTON W/RINGS (STYLE A)(.08) - RING SET 24 108 23-S - DISCONTINUED

$

$

Not available

2487448-S

Kohler 24 874 48-S

PISTON W/RINGS (STYLE A)(.25) - RING SET 24 108 24-S

$

$

Not available

2487449-S

Kohler 24 874 49-S

PISTON W/RINGS (STYLE A)(.50) - RING SET 24 108 25-S

$

$

Not available

2410822-S

Kohler 24 108 22-S

RING SET (STD)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

2410823-S

Kohler 24 108 23-S

RING SET (.08)1.5MM TOP RING THICKNESS - DISCONTINUED (STYLE A)

$

$

Not available

2410824-S

Kohler 24 108 24-S

RING SET (.25)1.5MM TOP RING THICKNESS - DISCONTINUED, USE PISTON ASSEMBLY (STYLE A)

$

$

Not available

2410825-S

Kohler 24 108 25-S

RING SET (.50)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available
