CH20-64664 - Kohler Command PRO Twin Engine, Made for Norwood, 20hp, 14.9kW Air Intake Group 10-24-56 Parts Diagram

Command PRO Twin Engine, Made for Norwood, 20hp, 14.9kW

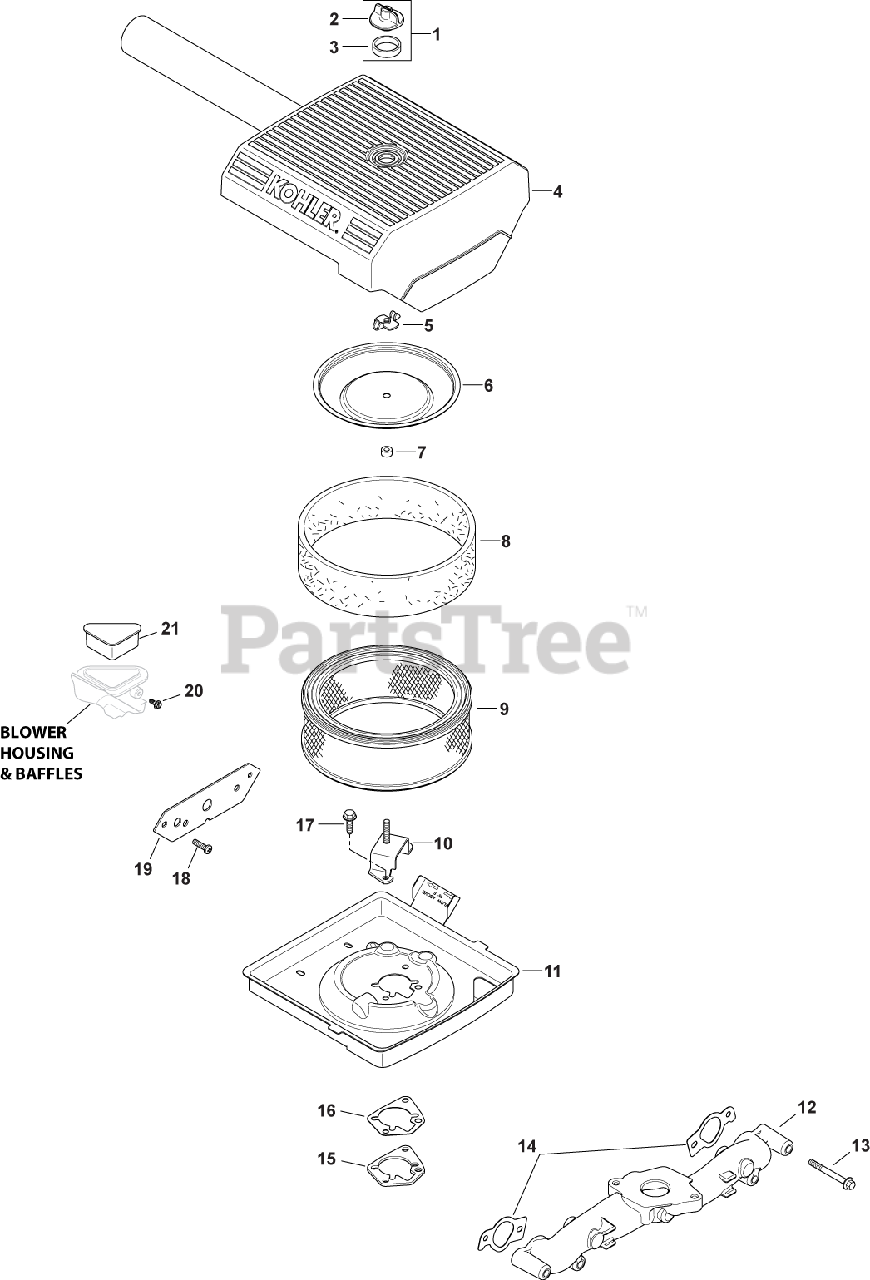

Air Intake Group 10-24-56 Parts Diagram

  • Title

1

Kohler 54 755 01-S

KIT, KNOB W/SEAL

$9.49

$

In Stock, Qty 9

0

2

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

Usually ships in 2-5 days

0

3

Kohler 24 153 20-S

O-RING

$2.49

$

In Stock, Qty 10

0

4

Kohler 24 096 30-S

COVER, AIR CLEANER

$166.99

$

Usually ships in 2-5 days

0

5

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0

6

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

7

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, Qty 7

0

8

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

In Stock, only 4 left!

0

9

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 14

0

10

Kohler 24 126 21-S

BRACKET,AIR CLEANERBASE-USE 24 126 206-S
(Superseded to 24 126 206-S)

$10.99

$

In Stock, Qty 6

0

11

Kohler 24 094 07-S

BASE ASSY, AIR CLEANER-USE 24 094 89-S
(Superseded to 24 094 89-S)

$266.99

$

Usually ships in 2-5 days

0

12

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

13

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

14

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

15

Kohler 24 112 06-S

SPACER, AIR CLEANER

$119.99

$

Usually ships in 2-5 days

0

16

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

17

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

18

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 3 left!

0

19

Kohler 24 378 01-S

PANEL, FRONT CONTROL

$13.99

$

Usually ships in 2-5 days

0

20

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

21

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$4.99

$

In Stock, only 2 left!

0

2431410-S

Kohler 24 314 10-S

SHIELD, HEAT

Note: NOT ILLUSTRATED

$305.99

$

Usually ships in 2-5 days

0

2475564-S

Kohler 24 755 64-S

KIT, ANTI-ICING

Note: NOT ILLUSTRATED

$550.99

$

Usually ships in 2-5 days

0

2511323-S

Kohler 25 113 23-S

DECAL, ANTI-ICING

Note: NOT ILLUSTRATED

$10.99

$

Usually ships in 2-5 days

0

2523704-S

Kohler 25 237 04-S

CLAMP, HOSE

Note: NOT ILLUSTRATED

$10.99

$

Usually ships in 2-5 days

0

2523713-S

Kohler 25 237 13-S

CLAMP, HOSE

Note: NOT ILLUSTRATED

$6.49

$

Usually ships in 2-5 days

0
