CH20-64651 - Kohler Command PRO Twin Engine, Made for Wheatheart, 20hp, 14.9kW Exhaust Group 11-24-50 CH18-750 Parts Diagram

Command PRO Twin Engine, Made for Wheatheart, 20hp, 14.9kW

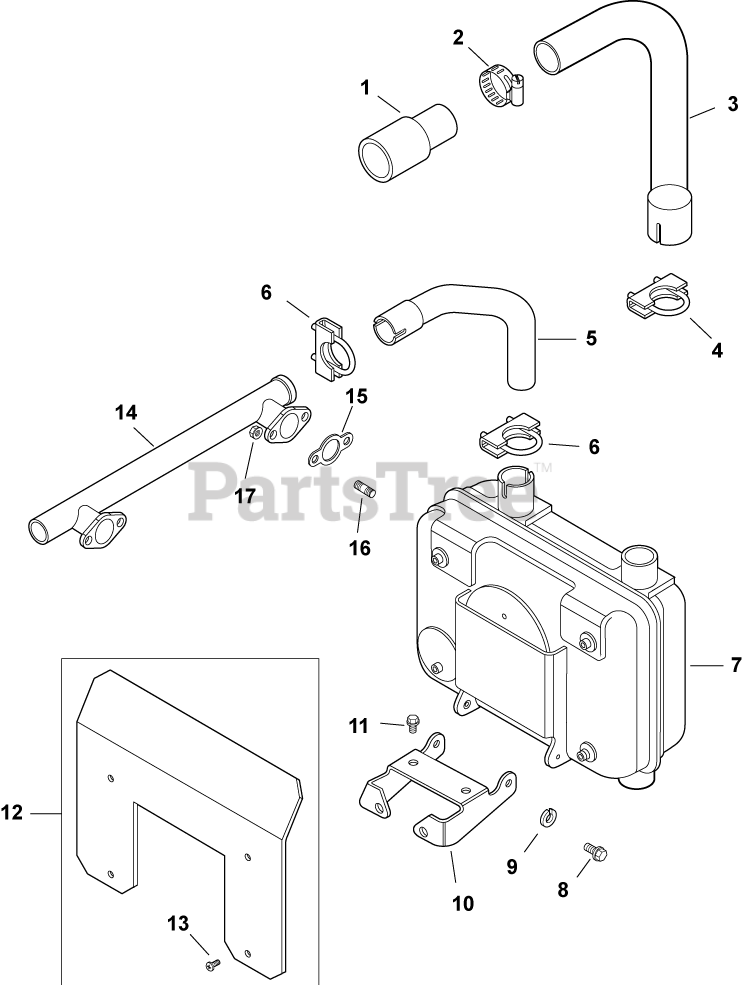

Exhaust Group 11-24-50 CH18-750 Parts Diagram

  • Title

1

Kohler 24 326 09-S

HOSE, STEP

$42.99

$

Usually ships in 2-5 days

0

2

Kohler 24 237 02-S

CLAMP, HOSE

$5.49

$

Usually ships in 2-5 days

0

3

Kohler 24 123 14-S

TUBE, CONNECTOR - USE 24 123 26-S
(Superseded to 24 123 26-S)

$50.99

$

Usually ships in 2-5 days

0

4

Kohler 237548-S

CLAMP, MUFFLER-USE 24 237 13-S
(Superseded to 24 237 13-S)

$12.99

$

Usually ships in 2-5 days

0

5

Kohler 24 382 03-S

PIPE, EXHAUST

$37.99

$

Usually ships in 2-5 days

0

6

Kohler 24 237 01-S

CLAMP, MUFFLER

$9.49

$

Usually ships in 2-5 days

0

7

Kohler 24 068 24-S

MUFFLER, SIDE MOUNT USE 24 068 155-S
(Superseded to 24 068 155-S)

$361.99

$

Usually ships in 2-5 days

0

8

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 14

0

9

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

10

Kohler 24 126 15-S

BRACKET, MUFFLER

$22.99

$

Usually ships in 2-5 days

0

11

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

12

Kohler 24 755 45-S

KIT, HEAT SHIELD

$58.99

$

Usually ships in 2-5 days

0

13

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

14

Kohler 24 164 10-S

MANIFOLD, EXHAUST

$141.99

$

Usually ships in 2-5 days

0

15

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

16

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

17

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0
