CH20-64647 - Kohler Command PRO Twin Engine, Made for Hahn, 20hp, 14.9kW Engine Controls Group 9-24-317 Parts Diagram

Command PRO Twin Engine, Made for Hahn, 20hp, 14.9kW

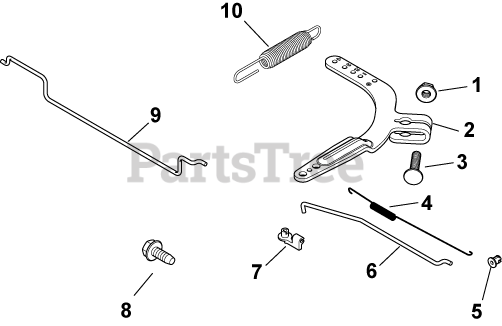

Engine Controls Group 9-24-317 Parts Diagram

  • Title
1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

2

Kohler 24 090 51-S

LEVER, GOVERNOR-USE 24 090 57-S
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

3

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

4

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, only 4 left!

0

5

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 19

0

6

Kohler 24 079 01-S

LINKAGE, THROTTLE

$3.99

$

In Stock, Qty 7

0

7

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

8

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 14

0

9

Kohler 24 079 21-S

LINKAGE, CHOKE
(Superseded to 24 079 66-S)

$2.49

$

In Stock, Qty 5

0

10

Kohler 24 089 15-S

SPRING, GOVERNOR (CLEAR)

$7.49

$

In Stock, only 1 left!

0

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
