CH20-64636 - Kohler Command PRO Twin Engine, Made for PRO Chem, 20hp, 14.9kW Ignition/ Charging Group 5-24-693 Parts Diagram

Command PRO Twin Engine, Made for PRO Chem, 20hp, 14.9kW

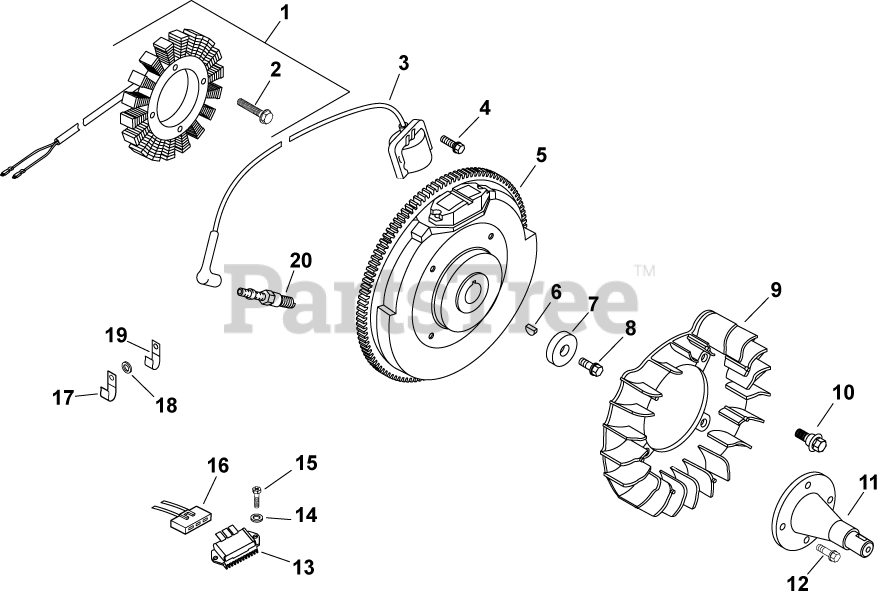

Ignition/ Charging Group 5-24-693 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 1 left!

0

2

Kohler 25 086 29-S

SCREW, WSH HD TAP #10-24X1"

$3.99

$

Usually ships in 2-5 days

0

3

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$

$

Not available

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

5

Kohler 24 025 04-S

FLYWHEEL, PAINTED-USE 24 025 55-S
(Superseded to 24 025 55-S)

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

Usually ships in 2-5 days

0

10

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

11

Kohler 24 144 23-S

SHAFT, FRONT DRIVE

$197.99

$

Usually ships in 2-5 days

0

12

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 25 403 05-S

REG/RECTIFIER (20/25 AMP)-USE 25 403 20-
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 20+

0

14

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

17

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

18

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

19

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

20

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2417672-S

Kohler 24 176 72-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$141.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
