CH20-64633 - Kohler Command PRO Twin Engine, Made for Thermaldyne, 20hp, 14.9kW Ignition/Electrical 5-24-751 CH18-750 Parts Diagram

Command PRO Twin Engine, Made for Thermaldyne, 20hp, 14.9kW

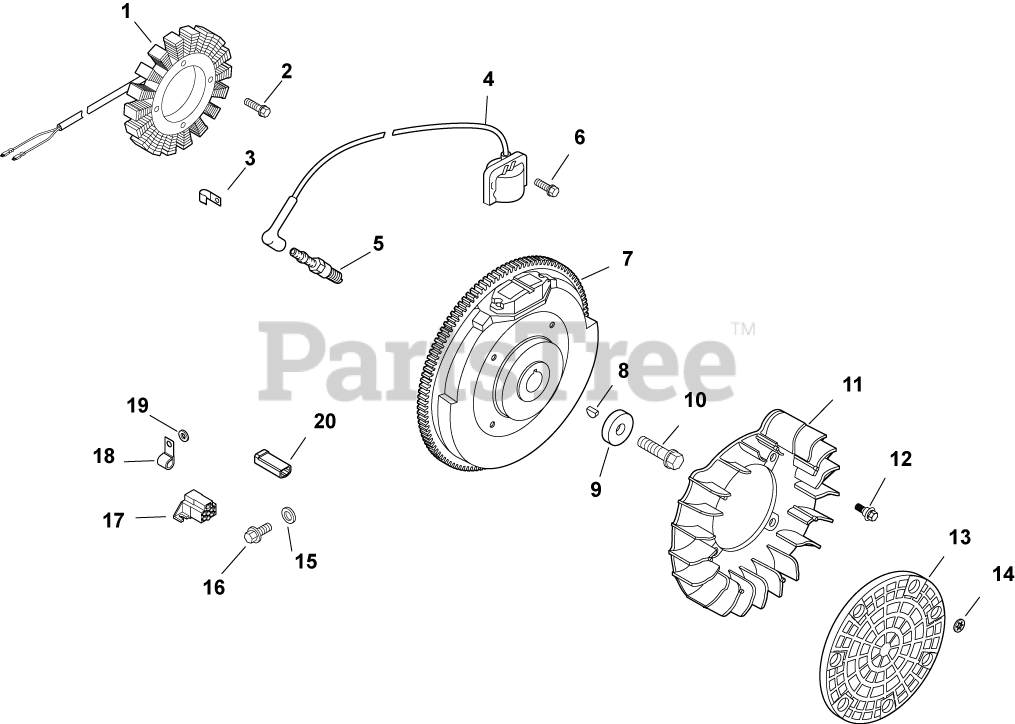

Ignition/Electrical 5-24-751 CH18-750 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (BEFORE S/N 3406200011)

$149.99

$

In Stock, Qty 15

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$

$

Not available

5

Kohler 24 025 01-S

USE 24 025 04-S FLYWHEEL
(Superseded to 24 025 55-S)

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 24 157 01-S

FAN (KM)-USE 24 157 15-S
(Superseded to 24 755 253-S)

Note: (AFTER S/N 3406200001)

$46.99

$

In Stock, Qty 5

0

10

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

Note: (BEFORE S/N 3406200011)

$46.99

$

In Stock, Qty 5

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

13

Kohler 24 162 03-S

SCREEN, GRASS

Note: (AFTER S/N 3406200001)

$

$

Not available

28

Kohler 24 162 35-S

SCREEN,GRASS LOW PRFLE W/O HOLE

Note: (BEFORE S/N 306200011)

$24.99

$

Usually ships in 2-5 days

0

29

Kohler 24 018 03-S

RETAINER

$2.49

$

In Stock, only 4 left!

0

31

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

36

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

39

Kohler 25 403 37-S

REGULATOR/RECT 12/15A HALF-WAVE STD

Note: (BEFORE S/N 3406200011)

$

$

Not available

42

Kohler 25 155 41-S

CONNECTOR

Note: (BEFORE S/N 3406200011)

$24.99

$

In Stock, only 1 left!

0

43

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

44

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

45

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

46

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

48

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

54

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

$63.99

$

In Stock, only 4 left!

0

55

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

56

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

57

Kohler 48 340 01-S

KEY, SET OF 2
(Superseded to 48 340 01-S1)

$4.99

$

In Stock, only 1 left!

0

59

Kohler 25 096 04-S

COVER

Note: (AFTER S/N 3406200001)

$10.99

$

Usually ships in 2-5 days

0

67

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

77

Kohler 25 454 07-S

TIE

Note: (BEFORE S/N 3406200011)

$2.49

$

Usually ships in 2-5 days

0

82

Kohler 24 176 41-S

LEAD, DUPLEX

$6.49

$

In Stock, only 2 left!

0

83

Kohler 24 518 09-S

LEAD, OIL SENTRY

$13.99

$

In Stock, only 1 left!

0

84

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0

1208503-S

Kohler 12 085 03-S

STATOR ASSEMBLY

Note: NOT ILLUSTRATED (AFTER S/N 3406200001)

$50.99

$

Usually ships in 2-5 days

0

M-561025-S

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

In Stock, only 4 left!

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

$44.99

$

Usually ships in 2-5 days

0

2417676-S

Kohler 24 176 76-S

HARNESS, WIRING

$11.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

$2.49

$

Usually ships in 2-5 days

0
