CH20-64620 - Kohler Command PRO Twin Engine, Made for Winco, 20hp, 14.9kW Engine Controls 9-24-152 Parts Diagram

Command PRO Twin Engine, Made for Winco, 20hp, 14.9kW

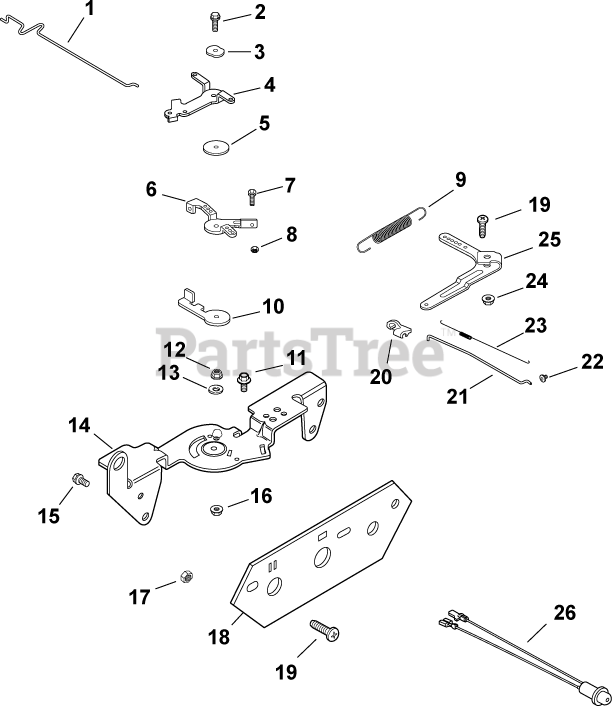

Engine Controls 9-24-152 Parts Diagram

  • Title

1

Kohler 24 079 21-S

LINKAGE, CHOKE
(Superseded to 24 079 66-S)

$2.49

$

In Stock, Qty 5

0

2

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

3

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

4

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

5

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 090 03-S

LEVER, THROTTLE CONTROL

$13.99

$

In Stock, only 1 left!

0

7

Kohler M-401030-S

SCREW, CAP M4X.7X30

$3.49

$

In Stock, Qty 9

0

8

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0

9

Kohler 24 089 49-S

SPRING, GOVERNOR (ORANGE)

$8.99

$

In Stock, only 3 left!

0

10

Kohler 24 090 07-S

LEVER,THROTTLE ACTUATOR-USE(24 090 65-S
(Superseded to 24 090 65-S)

$5.49

$

In Stock, only 1 left!

0

11

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

12

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 2 left!

0

13

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 126 56-S

BRACKET, CONTROL-USE 24 126 176-S
(Superseded to 24 126 263-S)

$10.99

$

In Stock, only 1 left!

0

15

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

16

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

17

Kohler 25 100 25-S

NUT, 3/8-24 GRADE 2

$3.49

$

Usually ships in 2-5 days

0

18

Kohler 24 378 01-S

PANEL, FRONT CONTROL

$13.99

$

Usually ships in 2-5 days

0

19

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 3 left!

0

20

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

21

Kohler 24 079 01-S

LINKAGE, THROTTLE

$3.99

$

In Stock, Qty 7

0

22

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

23

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, Qty 9

0

24

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

25

Kohler 24 090 33-S

LEVER, GOVERNOR-USE 24 090 57-S
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

26

Kohler 24 225 01-S

CABLE ASSEMBLY, CHOKE

$37.99

$

In Stock, only 1 left!

0

2411315-S

Kohler 24 113 15-S

DECAL, CONTROL PANEL

Note: NOT ILLUSTRATED

$16.99

$

Usually ships in 2-5 days

0

2421103-S

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0
