CH20-64613 - Kohler Command PRO Twin Engine, Made for Rayco, 20hp, 14.9kW Ignition/Electrical 5-24-92 checked 6/7/2007-hr Parts Diagram

Command PRO Twin Engine, Made for Rayco, 20hp, 14.9kW

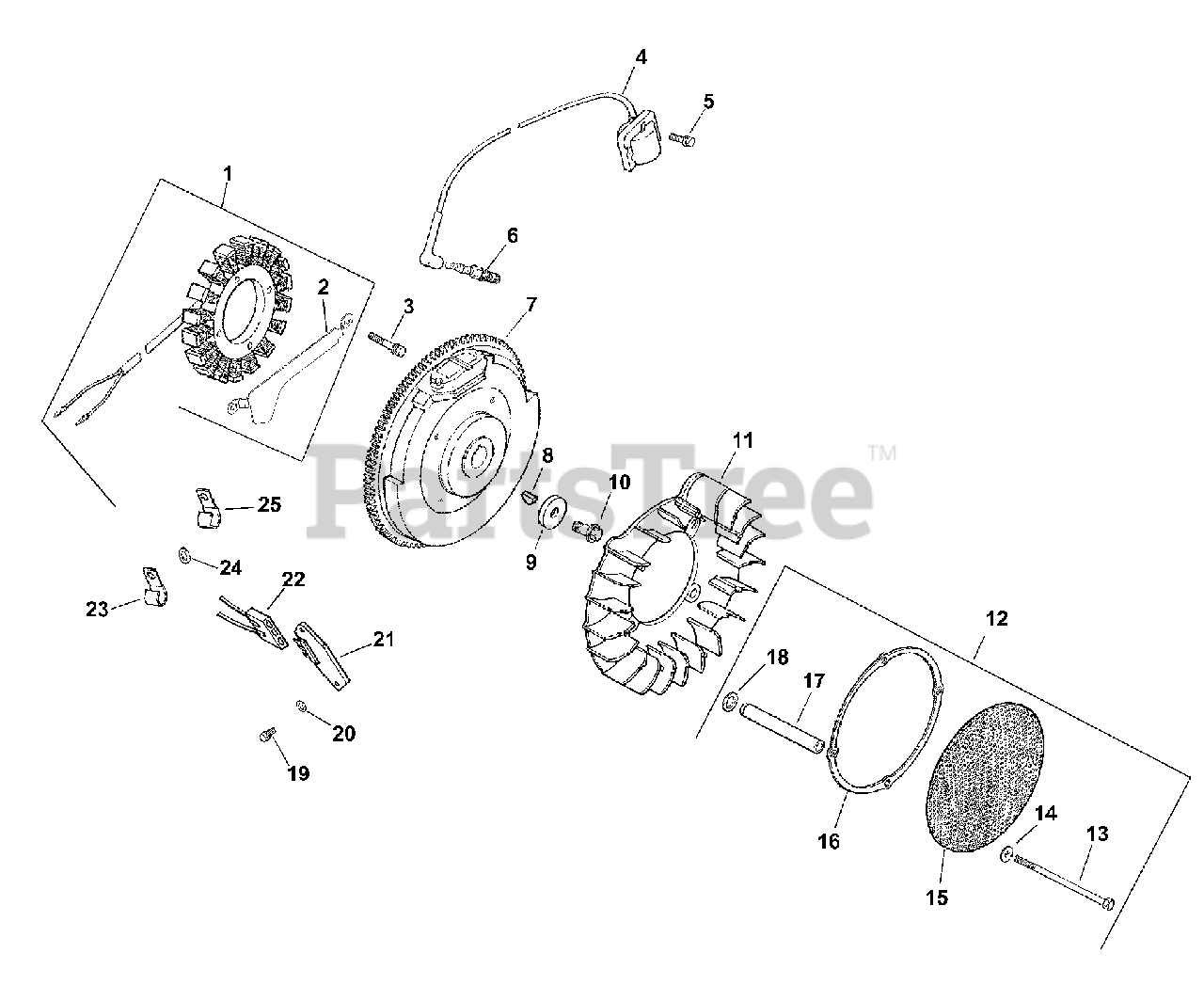

Ignition/Electrical 5-24-92 checked 6/7/2007-hr Parts Diagram

  • Title

1

Kohler 54 755 09-S

STATOR KIT - USE 237878-S
(Superseded to 237878-S)

Note: (Includes 2)

$149.99

$

In Stock, Qty 8

0

2

Kohler 24 126 139-S

BRACKET, STATOR WIRE

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$

$

Not available

5

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

6

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

7

Kohler 24 025 01-S

USE 24 025 04-S FLYWHEEL
(Superseded to 24 025 55-S)

$

$

Not available

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

9

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

10

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

11

Kohler 24 157 01-S

FAN (KM)-USE 24 157 15-S
(Superseded to 24 755 253-S)

$46.99

$

Usually ships in 2-5 days

0

12

Kohler 24 755 79-S

KIT, CHOPPER SCREEN

Note: (Includes 13-18 & 41 037 10-S)

$130.99

$

Usually ships in 2-5 days

0

13

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 24 112 14-S

SPACER

$18.99

$

Usually ships in 2-5 days

0

15

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

16

Kohler 24 162 25-S

SCREEN, GRASS-USE 24 162 41-S
(Superseded to 24 162 41-S)

$24.99

$

In Stock, only 1 left!

0

17

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

18

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

19

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

20

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

21

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

22

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

23

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

24

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

25

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: (Not Illustrated)

$4.99

$

Usually ships in 2-5 days

0

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: (Not Illustrated)

$6.49

$

In Stock, only 2 left!

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: (Not Illustrated)

$44.99

$

Usually ships in 2-5 days

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: (Not Illustrated0

$13.99

$

In Stock, only 1 left!

0

2508643-S

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

Note: (Not Illustrated - See Blower Housing Group)

$2.49

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: (Not Illustrated)

$2.49

$

Usually ships in 2-5 days

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

$2.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: (Not Illustrated)

$6.99

$

Usually ships in 2-5 days

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: (Not Illustrated)

$8.99

$

In Stock, only 4 left!

0
