CH20-64603 - Kohler Command PRO Twin Engine, Made for Toro, 20hp, 14.9kW Crankcase Group 2-24-24 (TP-2439-C) Parts Diagram

Command PRO Twin Engine, Made for Toro, 20hp, 14.9kW

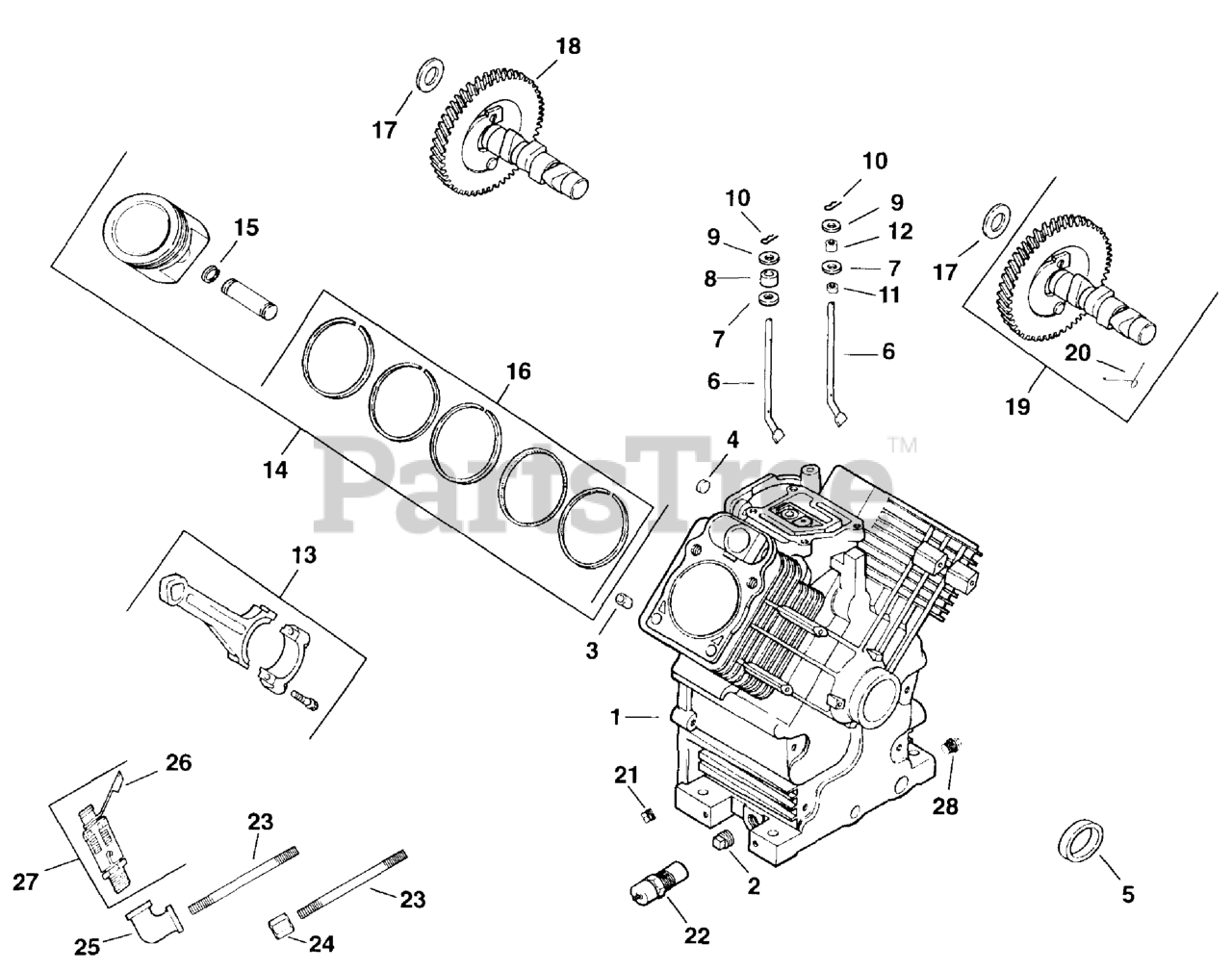

Crankcase Group 2-24-24 (TP-2439-C) Parts Diagram

  • Title

1

CRANKCASE

Note: (USE SHORT BLOCK OR MINIBLOCK)

$

$

Not available

3

Kohler 12 380 17-S

USE 24 380 13-S PIN
(Superseded to 24 380 16-S)

$4.49

$

In Stock, only 3 left!

0

4

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

5

Kohler 24 032 01-S

SEAL, OIL FRONT-USE 24 032 19-S
(Superseded to 24 032 19-S)

$7.49

$

In Stock, Qty 20+

0

6

Kohler 24 144 01-S

SHAFT, GOVERNOR CROSS - (#DSC)

$

$

Not available

7

Kohler X-25-102-S

WASHER, FLAT 1/4"

$2.49

$

In Stock, Qty 5

0

8

Kohler 12 032 01-S

SEAL, GOVERNOR CROSS SHAFT

$4.99

$

In Stock, Qty 7

0

10

Kohler 12 380 04-S

PIN

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 067 13-S

ROD, CONNECTING ASSY STD-USE 24 067 28-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 3 left!

0

13

Kohler 24 067 14-S

ROD,CONNECT ASSY.25 U/S-USE 24 067 17-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

14

Kohler 24 874 01-S

PISTON W/RINGS (STYLE A)(STD) USE 24 874 17-S PISTON
(Superseded to 24 874 46-S)

Note: Includes 15,16

$

$

Not available

14

Kohler 24 874 02-S

PISTON W/RINGS (STYLE A)(.25) USE 24 874 18-S PISTON
(Superseded to 24 874 48-S)

Note: Includes 15,16

$

$

Not available

14

Kohler 24 874 03-S

PISTON W/RINGS (STYLE A)(.50) USE 24 874 19-S PISTON
(Superseded to 24 874 49-S)

Note: Includes 15,16

$

$

Not available

15

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

16

Kohler 24 108 01-S

USE 24 108 11-S RING SET
(Superseded to 24 108 22-S)

$

$

Not available

16

Kohler 24 108 02-S

RING SET-USE 24 108 24-S
(Superseded to 24 108 12-S)

$

$

Not available

16

Kohler 24 108 03-S

RING SET-USE 24 108 13-S
(Superseded to 24 108 25-S)

$

$

Not available

17

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

17

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

17

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

17

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

17

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

17

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

18

Kohler 24 012 10-S

KIT, CAMSHAFT USE 24 012 23-S
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

28

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0
