CH20-64582 - Kohler Command PRO Twin Engine, Made for Toro, 20hp, 14.9kW Ignition/Charging Group 5-24-338 CH18-750 Parts Diagram

Command PRO Twin Engine, Made for Toro, 20hp, 14.9kW

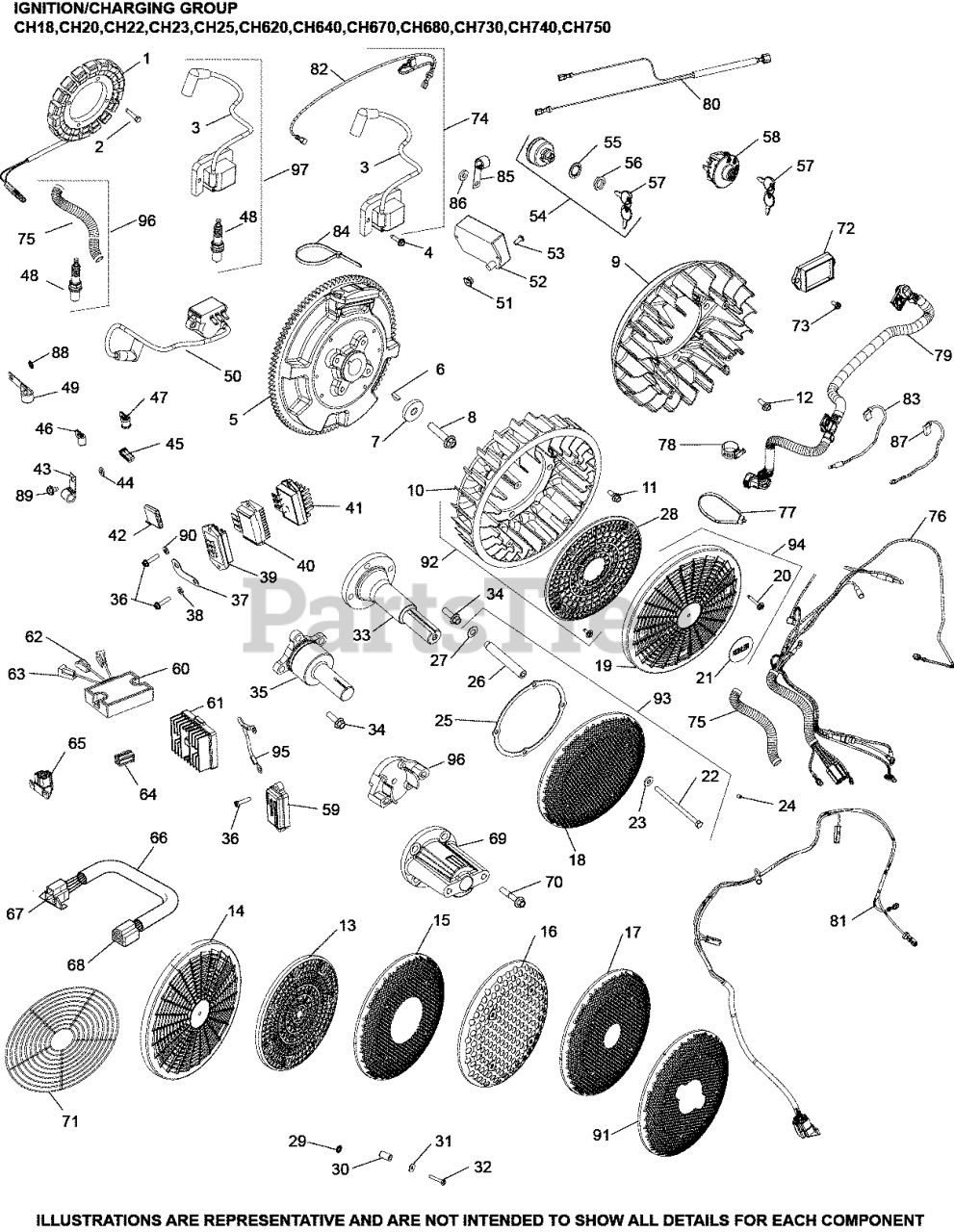

Ignition/Charging Group 5-24-338 CH18-750 Parts Diagram

  • Title
1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 15

0

2

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

4

Kohler 25 086 472-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

5

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 6

0

19

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, only 1 left!

0

22

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

23

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

24

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

25

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

26

$18.99

$

In Stock, only 1 left!

0

27

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, only 3 left!

0

36

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

39

Kohler 41 403 10-S

REGULATOR/RECTIFIER USE 25 403 37-S
(Superseded to 25 403 37-S)

$

$

Not available

42

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

43

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

44

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

47

$7.49

$

Usually ships in 2-5 days

0

48

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

76

Kohler 24 176 40-S

HARNESS, WIRING

$

$

Not available

$2.49

$

Usually ships in 2-5 days

0

90

Kohler 25 468 30-S

WASHER, LOCK

$2.49

$

Usually ships in 2-5 days

0

$4.99

$

Usually ships in 2-5 days

0
