CH20-64581 - Kohler Command PRO Twin Engine, Made for Doskocil, 20hp, 14.9kW Ignition/ Charging Group 5-24-275 CH18-750 Parts Diagram

Command PRO Twin Engine, Made for Doskocil, 20hp, 14.9kW

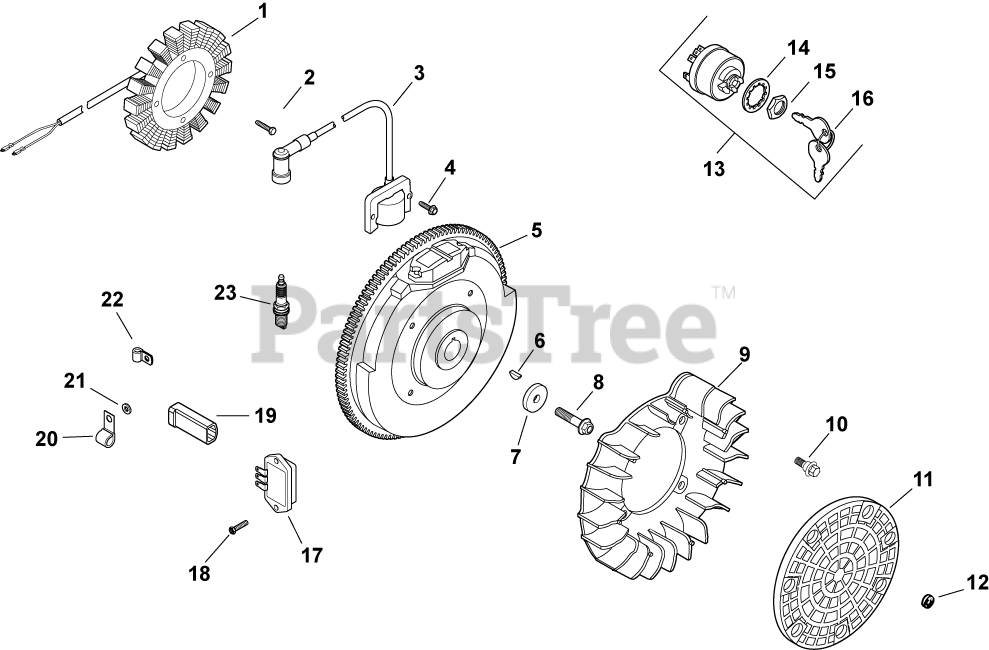

Ignition/ Charging Group 5-24-275 CH18-750 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 8

0

2

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

4

Kohler 25 086 472-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 025 55-S

FLYWHEEL

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, only 4 left!

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

14

Kohler 24 162 44-S

SCREEN, GRASS

$16.99

$

Usually ships in 2-5 days

0

20

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$2.99

$

In Stock, only 4 left!

0

36

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

39

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

42

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

43

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

44

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

47

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

48

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

49

Kohler 24 154 10-S

CLIP, CABLE

$2.99

$

In Stock, only 2 left!

0

57

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 1 left!

0

58

Kohler 25 099 30-S

KIT, KEY SWITCH (SNAP-IN)

$36.99

$

In Stock, Qty 5

0

76

Kohler 24 176 163-S

HARNESS, WIRING ASSEMBLY

$44.99

$

Usually ships in 2-5 days

0

77

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

82

Kohler 24 176 41-S

LEAD, DUPLEX

$6.49

$

In Stock, only 2 left!

0

83

Kohler 24 518 09-S

LEAD, OIL SENTRY

$13.99

$

In Stock, only 1 left!

0

84

Kohler 25 454 04-S

TIE

$3.49

$

Usually ships in 2-5 days

0

87

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

$6.99

$

Usually ships in 2-5 days

0

89

Kohler 25 086 406-S

SCREW, THREAD FORMING

$2.49

$

In Stock, Qty 9

0

90

Kohler 25 468 30-S

WASHER, LOCK

$2.49

$

Usually ships in 2-5 days

0

94

Kohler 54 755 15-S

KIT, GRASS SCREEN

$41.99

$

In Stock, only 1 left!

0

95

Kohler 24 518 43-S

LEAD

$2.99

$

Usually ships in 2-5 days

0
