CH20-64578 - Kohler Command PRO Twin Engine, Made for Silver Eagle, 20hp, 14.9kW Lubrication Group 3-24-124 CH18-750 Parts Diagram

Command PRO Twin Engine, Made for Silver Eagle, 20hp, 14.9kW

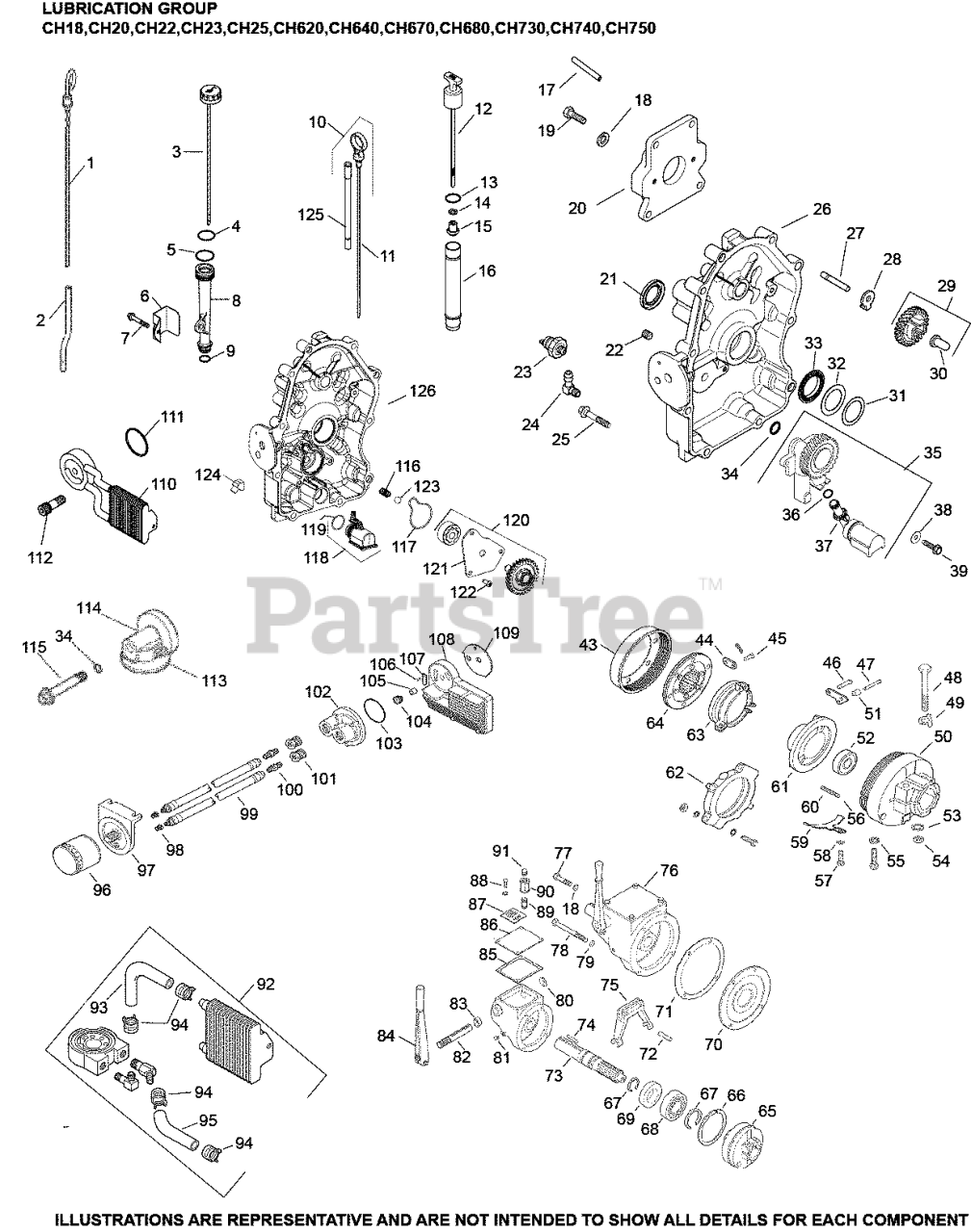

Lubrication Group 3-24-124 CH18-750 Parts Diagram

  • Title

10

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$35.99

$

In Stock, Qty 6

0

11

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, only 4 left!

0

21

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 19

0

22

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

23

Kohler 25 099 24-S

SWITCH, PRESSURE (CLOSED)-USE 25 099 27-
(Superseded to 25 099 27-S)

$15.99

$

In Stock, only 4 left!

0

25

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

26

Kohler 24 009 82-S

USE 24 009 150-S CLOSURE PLATE
(Superseded to 24 009 237-S)

Note: (Before S/N 4327400011)

$609.99

$

In Stock, only 1 left!

0

27

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

28

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

29

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 10

0

30

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

34

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 2 left!

0

35

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (Before S/N 4327400011)

$

$

Not available

36

Kohler 24 153 01-S

O-RING, OIL PICK-UP

Note: (Before S/N 4327400011)

$2.49

$

In Stock, Qty 8

0

37

Kohler 24 381 04-S

PICK-UP, OIL

Note: (Before S/N 4327400011)

$34.99

$

In Stock, only 1 left!

0

38

Kohler M-631005-S

WASHER, FLAT 6 MM

Note: (Before S/N 4327400011)

$2.49

$

In Stock, only 1 left!

0

39

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

Note: (Before S/N 4327400011)

$2.49

$

In Stock, only 2 left!

0

96

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

112

Kohler 24 136 01-S

NIPPLE, OIL FILTER USE 24 136 09-S
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

116

Kohler 24 089 74-S

SPRING, COMPRESSION

Note: (After S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

117

Kohler 24 153 33-S

SEAL, OIL PUMP COVER

Note: (After S/N 4327400001)

$2.99

$

Usually ships in 2-5 days

0

118

Kohler 24 381 13-S

PICK-UP ASSEMBLY, OIL

Note: (After S/N 4327400001)

$7.49

$

Usually ships in 2-5 days

0

119

Kohler 24 153 34-S

O-RING, OIL PICK-UP

Note: (After S/N 4327400001)

$2.49

$

In Stock, only 1 left!

0

120

Kohler 24 393 70-S

PUMP ASSEMBLY, OIL

Note: (After S/N 4327400001)

$32.99

$

In Stock, only 2 left!

0

121

Kohler 24 096 151-S

COVER, OIL PUMP

Note: (After S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

122

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

Note: (After S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

123

Kohler 25 194 03-S

PRESSURE RELIEF BALL

Note: (After S/N 4327400001)

$2.49

$

In Stock, only 2 left!

0

126

Kohler 24 009 216-S

CLOSURE PLATE ASSEMBLY (SERVICE)

Note: (After S/N 4327400001)

$684.99

$

Usually ships in 2-5 days

0
