CH20-64574 - Kohler Command PRO Twin Engine, Made for Briggs Ent., 20hp, 14.9kW Fuel System 8-24-51 Parts Diagram

Command PRO Twin Engine, Made for Briggs Ent., 20hp, 14.9kW

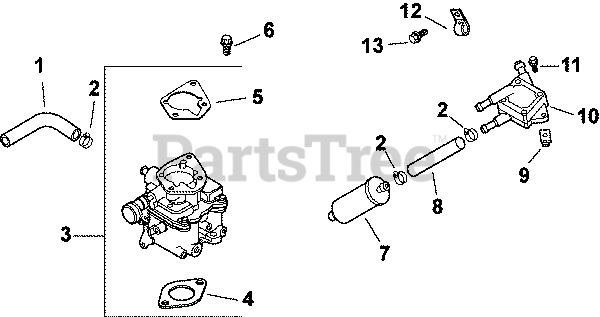

Fuel System 8-24-51 Parts Diagram

  • Title
1

Kohler 25 353 15-S

LINE FLEXBLE FUEL (3.5" x.25") -USE 25 1
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

3

Kohler 24 853 34-S

KIT,CARB(KEIHIN) W/GASKETS-KSF

Note: (includes 4,5)

$434.99

$

In Stock, only 2 left!

0

4

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 12

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

6

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

7

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

8

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

In Stock, only 1 left!

0

9

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 9

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 13

0

11

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

12

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

13

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

2475707-S

Kohler 24 757 07-S

KIT, REPAIR CHOKE

$95.99

$

In Stock, only 1 left!

0

24755130-S

Kohler 24 755 130-S

KIT,HIGH ALTITUDE (4,000 - 8,000 FT)

$55.99

$

Usually ships in 2-5 days

0

2475702-S

Kohler 24 757 02-S

KIT, REPAIR FLOAT

$133.99

$

Usually ships in 2-5 days

0

2475701-S

Kohler 24 757 01-S

KIT, SOLENOID

$227.99

$

In Stock, only 1 left!

0

2475703-S

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

$112.99

$

Usually ships in 2-5 days

0

2475708-S

Kohler 24 757 08-S

KIT, REPAIR ACC PUMP

$84.99

$

In Stock, only 1 left!

0

2475709-S

Kohler 24 757 09-S

KIT, REPAIR-ACC PUMP SEAL

$109.99

$

Usually ships in 2-5 days

0
