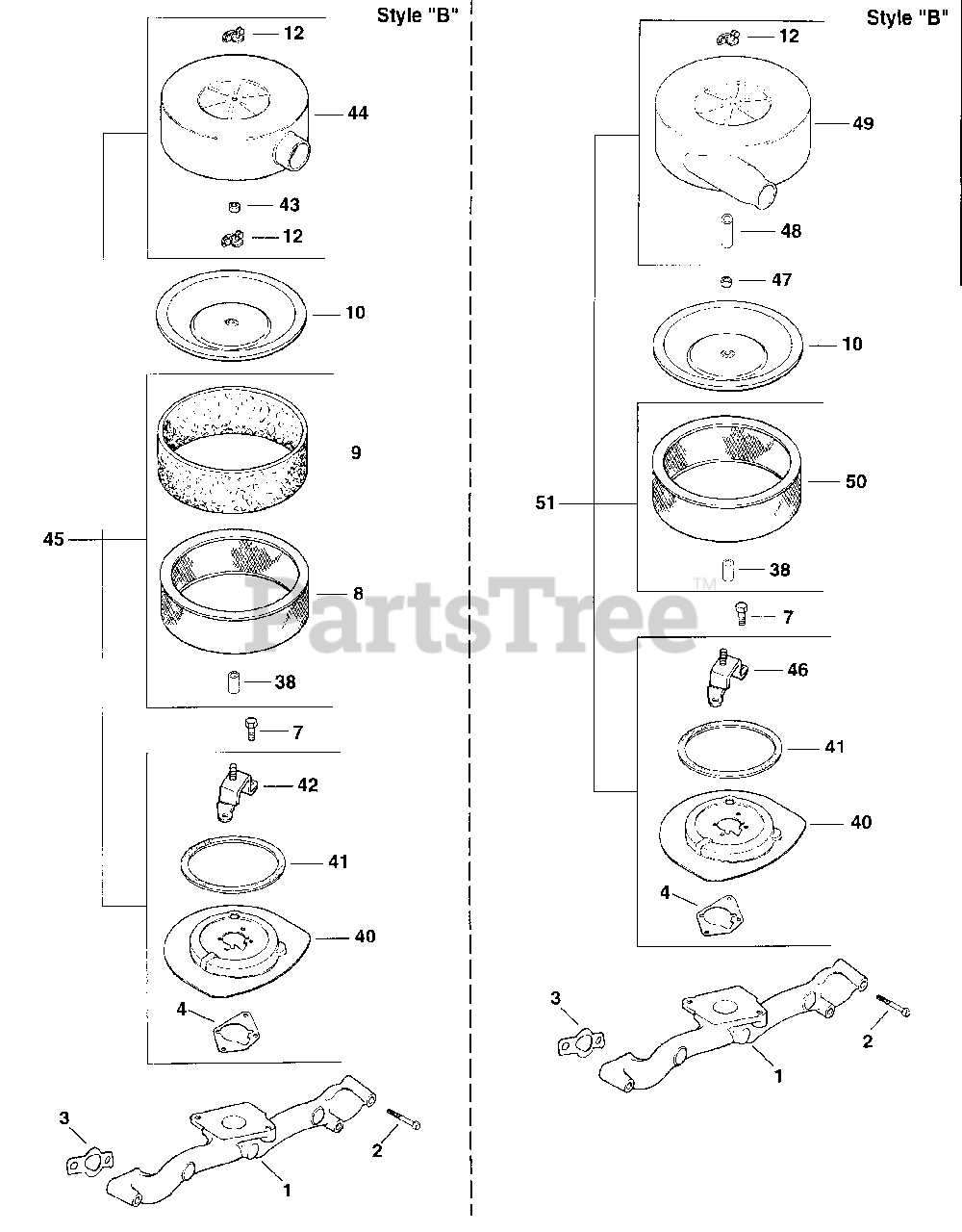

CH20-64558 - Kohler Command PRO Twin Engine, Made for Furatell/Smithco, 20hp, 14.9kW Air Intake (Cont.) 10-24-12 (TP-2439-C) Rev 9/29/2006 Parts Diagram

Command PRO Twin Engine, Made for Furatell/Smithco, 20hp, 14.9kW

Air Intake (Cont.) 10-24-12 (TP-2439-C) Rev 9/29/2006 Parts Diagram

  • Title

1

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

2

Kohler M-0639055

Screw, hex. flange M6x1.0x55
(Superseded to M-639055)

$2.49

$

In Stock, Qty 20+

0

3

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 9

0

4

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

7

Kohler M-0639016

SCREW - USE M-639016
(Superseded to M-639016)

$2.49

$

In Stock, Qty 7

0

8

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 20+

0

9

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

Usually ships in 2-5 days

0

10

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

12

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 4 left!

0

38

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 1 left!

0

40

Kohler 24 094 05-S

BASE, AIR CLEANER-USE 24 094 91-S
(Superseded to 24 094 91-S)

$71.99

$

Usually ships in 2-5 days

0

41

Kohler 24 032 07

KIT - USE 24 743 18
(Superseded to 24 743 18)

Note: Use after Serial No. 2313700007

$34.99

$

Usually ships in 2-5 days

0

42

Kohler 24 126 22-S

BRACKET, AIR CLEANER-USE 24 126 207-S
(Superseded to 24 126 207-S)

$13.99

$

Usually ships in 2-5 days

0

43

Kohler 41 032 02-S

SEAL

$4.99

$

Usually ships in 2-5 days

0

44

Kohler 24 096 10

COVER - USE 24 096 52
(Superseded to 24 096 52-S)

$166.99

$

Usually ships in 2-5 days

0

45

Kohler 24 755 21-S

KIT, DOME AIR CLEANER

Note: Includes 4,8,9,12,38,40-44

$210.99

$

Usually ships in 2-5 days

0
